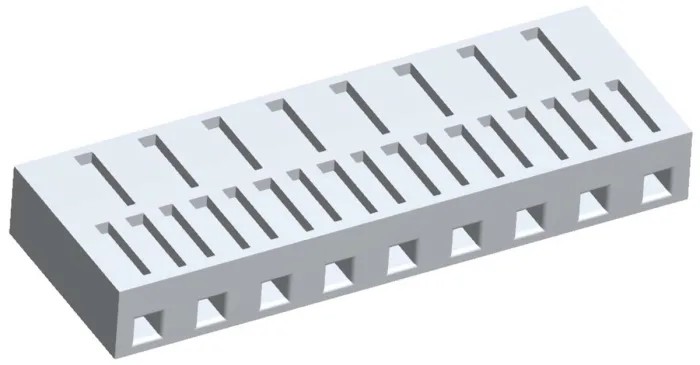

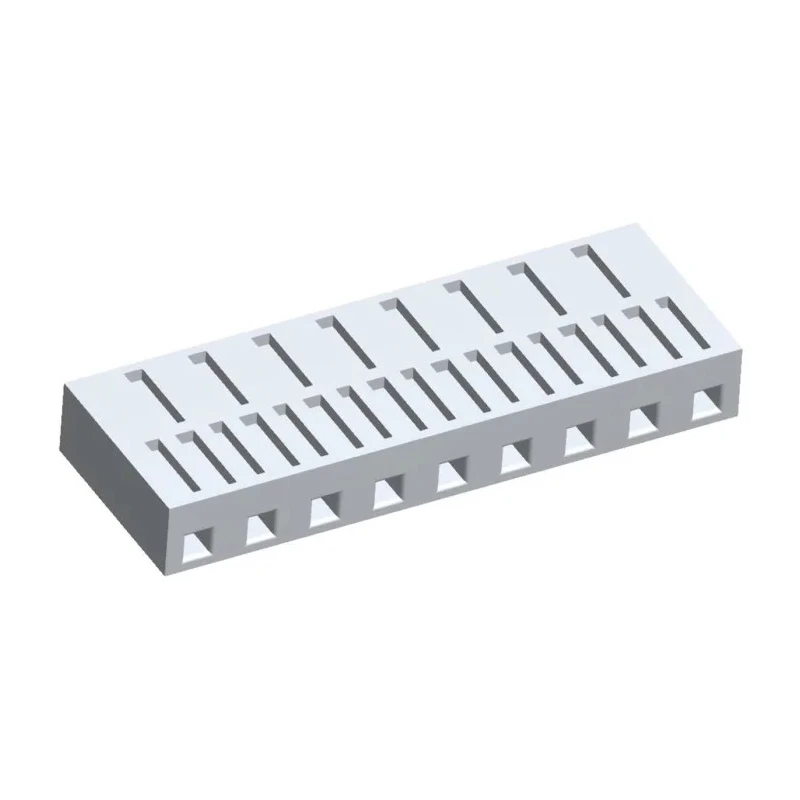

Molex KK Female Connector Housing 5.08 mm Pitch 9 Way 1 Row Straight Nylon Cable Mount 10-01-1094
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 45.72mm |
| Width | 6mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | KK |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| For Use With | KK Connector |
| Number of Contacts | 9 |
| Connector Gender | Female |
Key Features
- Constructed with durable natural UL94V-2 nylon housing material.
- Compatible with KK series crimp terminals for wire to board connections.
- Features straight orientation for easy cable mounting.
- Provides secure electrical connection and enhanced clearance distance.
- Designed for use with 18-26 AWG KK crimp terminals.
- Suitable for industrial and electronic component assembly applications.
- Simple and economical interconnection system for PCB and wire harnesses.
Product Description
Molex 10-01-1094 KK Female Connector Housing is a high-quality component designed for electrical and electronic applications requiring reliable wire to board connections. It features a 5.08 mm pitch, 9-way contact configuration arranged in a single straight row suitable for numerous industrial and commercial uses.
Constructed from natural UL94V-2 rated nylon, this housing offers excellent insulation and durability for cable mounting. It mates seamlessly with corresponding KK 3003 series PCB header connectors and accommodates a range of crimp terminals such as KK 2478, KK 2578, and KK 2878 series supporting 18-26 AWG wires.
The straight orientation and cable mount type support easy assembly and stable connections in various electronic devices, machinery, and control systems. This connector housing is ideal for applications requiring greater creepage and clearance distances, ensuring safe and effective electrical performance.
The housing measures 45.72 mm in length and 6 mm in width, providing a compact solution that fits well in tight spaces typically found in electronic assemblies. The KK series connector housing is widely used across industrial manufacturing, electronics production, automation equipment, and communication hardware.
Durable nylon housing with UL94V-2 flammability rating. 9 contacts arranged in a single-row straight configuration. 5.08 mm pitch suitable for standard KK connectors. Compatible with multiple KK crimp terminal series for flexible wiring options.
Supports secure cable mounting with stable electrical connection. Compact dimensions suitable for efficient circuit board design. Widely used in industrial, manufacturing, and electronics sectors. Provides an economical and reliable wire to board interconnection method.
Explore more products in the EnvMart Electronics Components & Connector Housing category for related high-quality connectors and housings from top manufacturers including Molex.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 5.08 mm.
It has 9 contacts arranged in a single row configuration.
This model features a cable mount type for easy installation.
The housing is constructed from natural UL94V-2 rated nylon, providing good insulation and durability.
It is designed for use with 18-26 AWG KK crimp terminals.
The housing measures 45.72 mm in length and 6 mm in width.
It features a straight orientation for easy cable mounting.
Yes, it mates seamlessly with corresponding KK 3003 series PCB header connectors.
It is suitable for industrial and electronic component assembly applications, including machinery and control systems.
The connector gender of this housing is female.
The country of origin for this connector housing is India.
It provides secure electrical connections and enhanced creepage and clearance distances, ensuring safe performance.
