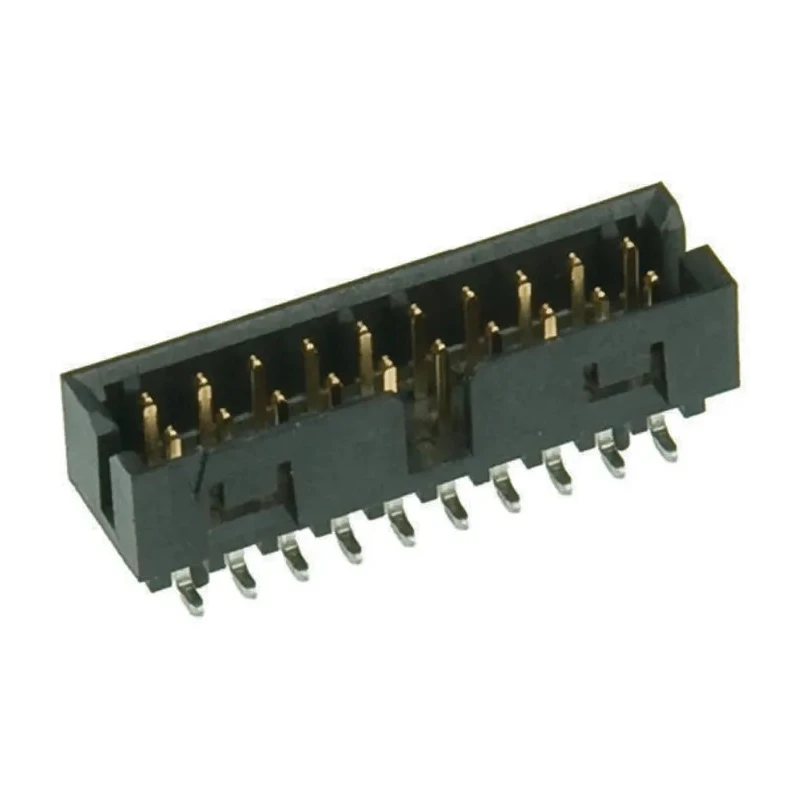

Molex Milli-Grid Series Straight Surface PCB Header 26 Contacts 2 mm Pitch 2 Row Shrouded 87832-2620

Molex 87832-2620 Milli-Grid Series Straight Surface PCB Header is a high-quality electronic component designed for reliable and precise wire-to-board interconnections. It features 26 male contacts arranged in 2 rows with a 2 mm pitch and a shrouded design providing protection and alignment during mating.

Constructed with a durable nylon housing, the header supports a maximum current rating of 2 Amperes and a voltage rating of 125 Volts, suitable for various industrial electronic applications. The phosphor bronze contacts are plated with 0.38μm gold, ensuring excellent conductivity and corrosion resistance even under harsh conditions.

This PCB header supports a broad operating temperature range from -55°C to 105°C, ensuring performance stability under different environmental conditions. The connector is designed for surface mount technology (SMT) with solder termination, facilitating efficient PCB assembly processes.

The mating pin length measures 2 mm, allowing secure connections with compatible receptacles, typically the Molex 51110 Series. The shrouded design safeguards the contacts from mechanical damage and prevents erroneous mating, improving durability and reliability in electronic assemblies.

The Milli-Grid system is based on a dense 2 x 2 mm grid pattern, offering compact and flexible solutions for board-to-board or cable-to-board connections in sectors such as industrial manufacturing, telecommunications, and consumer electronics.

The connector features a straight orientation and wire-to-board system for streamlined PCB layout designs. Gold plating on contacts enhances long-term performance and reduces signal loss. This model complies with standard PCB header design principles but does not carry specific certifications.

Ideal for use in electronic manufacturing, embedded systems, and assembly line applications requiring precision and durability.
