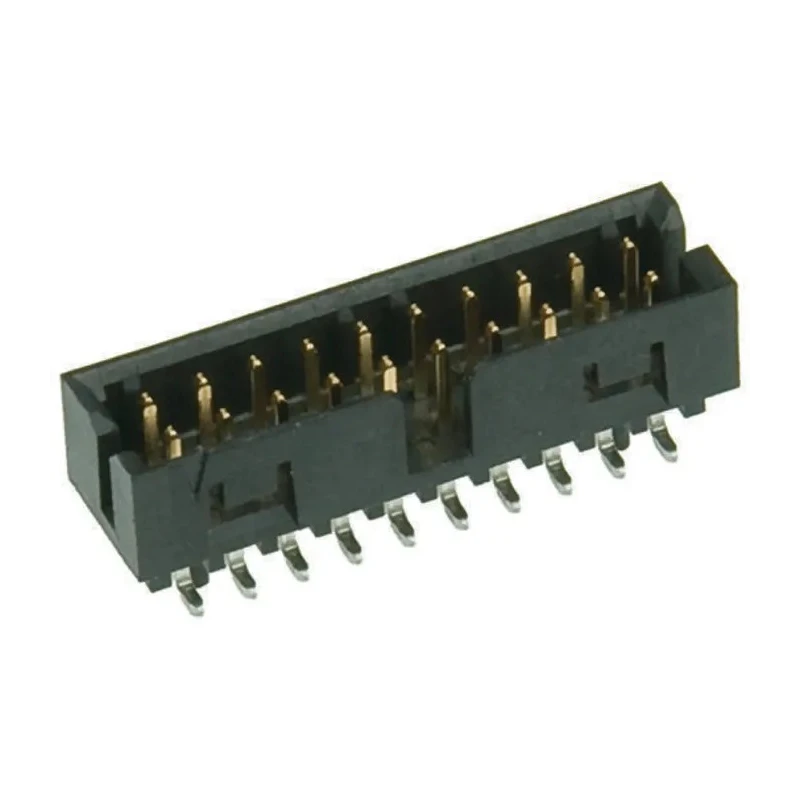

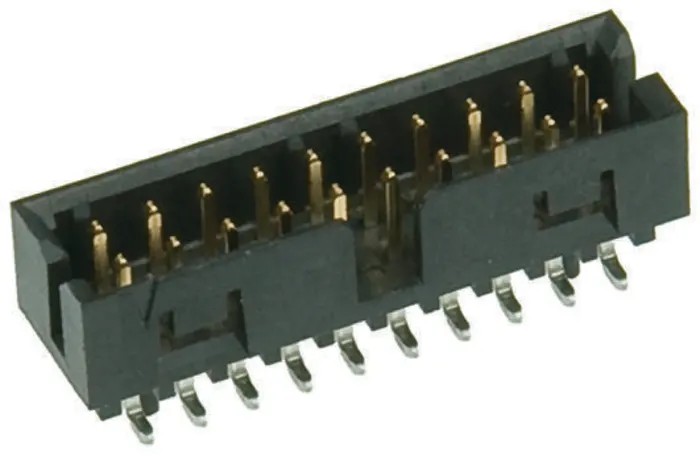

Molex Milli-Grid Series Straight Surface PCB Header, 10 Contact(s), 2 mm Pitch, 2 Row, Shrouded 87832-1022

Molex 87832-1022 Milli-Grid Series Straight Surface PCB Header is a high-quality connector designed for electronic components requiring a compact and reliable electrical connection. Featuring 10 male contacts arranged in 2 rows with a 2 mm pitch, this shrouded header ensures secure and stable connections ideal for dense PCB layouts.

The surface mount, straight orientation facilitates easy and efficient PCB assembly processes. It supports a continuous current of 2A and operates under a voltage of up to 125V, suitable for various industrial and electronic applications.

Designed to function reliably in harsh environments, it withstands minimum operating temperatures of -55°C and maximum of 105°C. The mating pin length of 2 mm and tail pin length of 2.5 mm provide robust mechanical and electrical engagement.

This connector is part of the Milli-Grid interconnection system based on a 2x2 mm grid pattern, offering design flexibility for board-to-board and cable-to-board connections. Its shrouded design adds protection against electrical shorts and mechanical damage.

Constructed with phosphor bronze contact material for durability. Features gold contact plating for enhanced conductivity and corrosion resistance. Shrouded design ensures reliable connection and protection. Supports a current rating of 2A and voltage up to 125V.

Surface mount type with straight orientation for easy PCB assembly. Operates reliably in temperatures from -55°C to 105°C. Mating pin length of 2 mm and tail pin length of 2.5 mm for secure fit. Compliant with standard Milli-Grid 2.0 mm interconnection system.

Manufactured in Singapore with new product condition assurance. Suitable for board-to-board and cable-to-board electronic applications.

This PCB header is ideal for electronics manufacturing, industrial automation, telecommunications, and other applications requiring dependable wire-to-board connectivity. Molex’s Milli-Grid series ensures superior performance in compact electronic designs.
