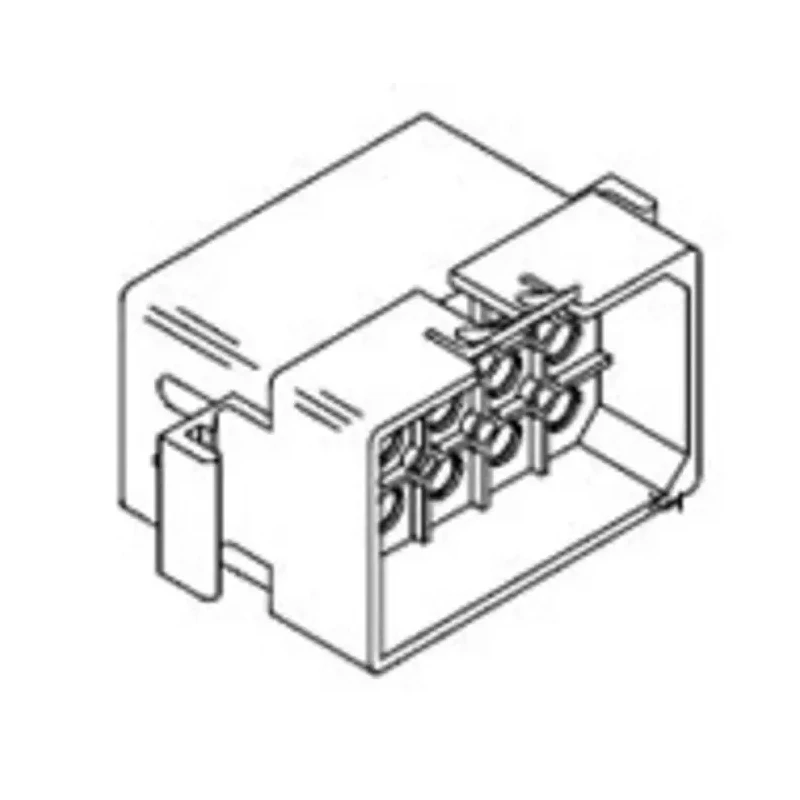

Molex STANDARD .093" Male Connector Housing 6.3 mm Pitch 15 Way 3 Row Straight 19-09-2153
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 35.3mm |
| Width | 25.1mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Standard .093" |
| Number of Rows | 3 |
| Pitch | 6.3mm |
| For Use With | 2.36 mm Dia. 0.093 in Pin & Socket Plug |
| Number of Contacts | 15 |
| Connector Gender | Male |
Key Features
- Constructed from durable 94V-2 nylon for reliable insulation and mechanical strength.
- Features positive locking and full isolation of terminals for secure electrical connections.
- Accepts industry standard 2.36 mm diameter .093" male pin and female socket terminals.
- Polarized design ensures correct and secure mating to prevent connection errors.
- Suitable for medium power applications such as consumer electronics and data communications devices.
- Includes standard mounting ears for easy panel integration.
- Designed as part of the 1991 series 2.36 mm diameter Standard .093" pin and socket plug housings.
Product Description
Molex 19-09-2153 STANDARD .093" Male Connector Housing is a 15 way, 3 row straight connector housing with a 6.3 mm pitch, constructed from 94V-2 grade nylon. It is engineered for use with 2.36 mm diameter .093" male pin and socket plug terminals, featuring a positive locking system and fully isolated terminals to ensure secure and reliable electrical connections.
This connector housing has a polarized design that prevents incorrect mating, providing robust reliability for various electronic and electrical applications. With its panel mount type and standard mounting ears, installation is straightforward and stable.
The 19-09-2153 is part of the 1991 series designed to meet the demands of medium power applications including consumer devices such as refrigerators and microwave ovens, as well as data communications equipment like desktop computers, motherboards, and hard disk drives.
Its materials and design ensure durability and electrical insulation compliance, although it does not carry specific standards or approvals. This connector housing has a compact form factor with dimensions of approximately 35.3 mm length and 25.1 mm width, making it suitable for space-constrained assemblies.
Durable 94V-2 nylon housing material providing electrical insulation and mechanical strength. Accepts 2.36 mm diameter .093" male pin and socket plug terminals. Polarized and positive locking design for secure connections.
Panel mount type with standard mounting ears for ease of installation. Compatible with medium power applications in consumer electronics and data communications.
By choosing the Molex 19-09-2153, professionals in electronics manufacturing and repair gain a high-quality Connector Housing solution verified for efficiency and reliability. The product is manufactured in the United States and aligns well with industrial and commercial electrical component needs.
Explore more connectors and electronic components in the Electronics & Electricals category on EnvMart for comprehensive sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 6.3 mm.
This connector housing features 15 contacts.
It is constructed from 94V-2 nylon, providing reliable insulation and mechanical strength.
The orientation of this connector housing is straight.
The dimensions are approximately 35.3 mm in length and 25.1 mm in width.
This model supports panel mount installation and includes standard mounting ears for easy integration.
It is designed to accept 2.36 mm diameter .093" male pin and socket plug terminals.
This connector housing is part of the Standard .093" series.
The connector gender is male.
It is suitable for medium power applications, including consumer electronics and data communications devices.
Yes, it features a polarized design to ensure correct and secure mating, preventing connection errors.
This connector housing is manufactured in the United States.
