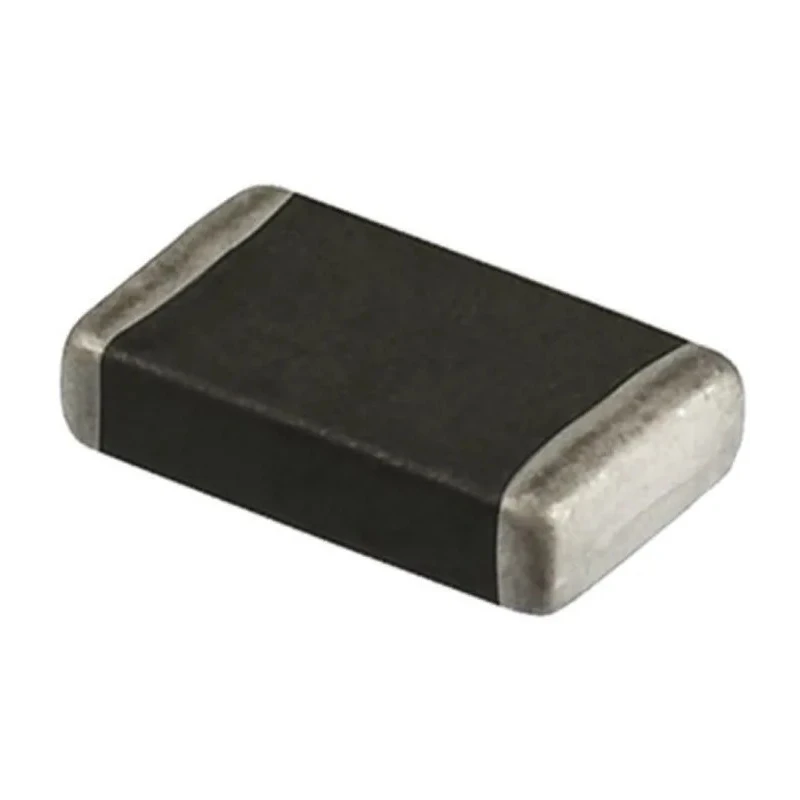

Wurth Elektronik WE-VS SMD Power Varistor 180 pF Capacitance 10 A Clamping Current 200 V Clamping Voltage 70 V 1206 82531400

Wurth Elektronik 82531400 WE-VS SMD Power Varistor 1206 is a high-performance surge protection component designed for electronic circuits requiring stable and reliable overvoltage suppression. It features a compact 1206 SMD package with a capacitance of 180 pF. The device is engineered to safely clamp voltage surges with a maximum clamping voltage of 200 V and can continuously handle a clamping current of 10 A.

Ideal for protecting sensitive electronic components against transient voltage spikes, this varistor operates efficiently across a wide temperature range from -40°C up to 125°C, supporting industrial and commercial applications. The varistor's termination includes silver, nickel, and tin, enhancing durability and ensuring compatibility with lead-free soldering standards.

Standard compliance includes IEC 61000-4-5 for surge protection, ensuring performance under typical transient voltage conditions encountered in industrial power supply and electronic device environments. The maximum surge current capability of 200 A enhances device robustness during severe transient events.

The device is designed with a nickel barrier to facilitate lead-free soldering, improving assembly reliability and meeting environmental regulatory demands. With maximum AC and DC voltages rated at 40 V and 56 V respectively, it is suitable for various surface-mounted applications, including power connectors and passive electronic systems.

The energy rating of 0.5 joules supports effective absorption of transient energy, maintaining circuit integrity and longevity. This Varistor is an essential component for protecting electronic devices from voltage surges, especially in industrial and consumer electronics.

Designed for surface mount technology with a 1206 package size. Operates within a temperature range from -40°C to +125°C for 1206 size. Features a silver/nickel/tin termination style for robust soldering. Complies with IEC 61000-4-5 standard for surge protection.

Provides excellent absorption and immediate return to normal mode after surge impulse. Energy rating of 0.5 joules ensures reliable energy handling. Maximum surge current capability is 200 A. Capacitance of 180 pF minimizes circuit impact.

Maximum AC and DC voltages are 40 V and 56 V respectively. Nickel barrier design supports lead-free soldering processes.

This product is suitable for applications in industrial electronics, power supply systems, telecommunications, and consumer electronic devices requiring reliable surge protection. Explore further components and accessories in the Wurth Elektronik range on EnvMart for enhanced circuit protection solutions.
