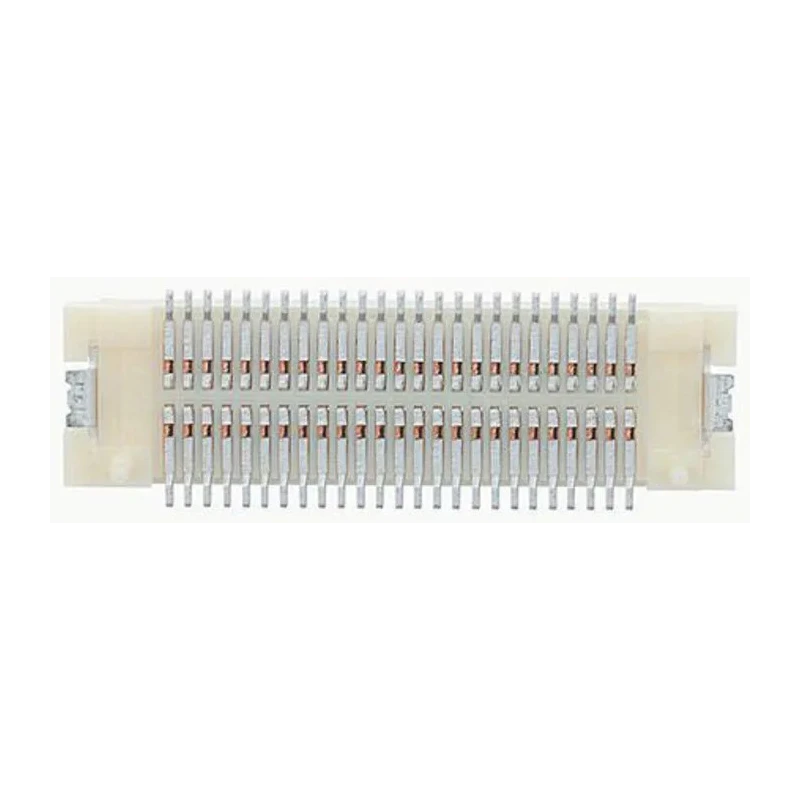

Hirose DF17 Series Straight Surface PCB Header 60 Contacts 0.5 mm Pitch 2 Row Shrouded DF17

Free Delivery in India | Lowest Global Shipping Charges

Hirose DF17 Series Straight Surface PCB Header 60 Contacts 0.5 mm Pitch 2 Row Shrouded DF17

Name: Hirose DF17 Series Straight Surface PCB Header 60 Contacts 0.5 mm Pitch 2 Row Shrouded DF17
Brand: Hirose
SKU: 124475



Category PCB Connectors & Wire Housings Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	50V
Brand	Hirose
Orientation	Straight
Current	300mA
Model	DF17
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	DF17
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-35°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	60
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

This connector features a compact 0.5 mm pitch with 60 contacts for efficient board-to-board connections.
The housing is made of durable polyamide material providing mechanical stability.
Gold-plated copper alloy contacts ensure reliable electrical conductivity.
Shrouded and straight orientation design protects contacts and improves mating connection safety.
Supports operating temperatures from -35°C to 85°C, suitable for various environmental conditions.
Designed for surface mount technology with solder termination for robust PCB attachment.
Compact and shockproof design is ideal for handheld devices and portable electronics.
Provides stability on PCB with mounting bosses and metal fittings to protect mechanical stress.

Product Description

Hirose DF17 series PCB header, model DF17(4.0)-60DP-0.5V(57), is a straight surface mount connector with 60 contacts, 0.5 mm pitch and shrouded housing suitable for board-to-board connections in compact electronic assemblies.

Constructed with a polyamide housing and gold-plated copper alloy contacts, this PCB header ensures high electrical reliability and durability. It operates safely within a temperature range of -35°C to 85°C and is designed for solder termination on PCBs.

The shrouded and scoop-proof housing design protects contacts during mating, ensuring consistent performance especially in mobile phones and portable telecommunications equipment. The connector system supports board-to-board stacking heights between 4 mm and 8 mm. Metal fittings and mounting bosses improve mechanical stability against shocks and stress caused by handling or device drops.

This robust design enhances device lifespan and reliability in industrial, commercial, and consumer electronics applications, including LCD equipment and other portable electronic devices.

This connector features a compact 0.5 mm pitch with 60 contacts for efficient board-to-board connections. The housing is made of durable polyamide material providing mechanical stability. Gold-plated copper alloy contacts ensure reliable electrical conductivity.

Shrouded and straight orientation design protects contacts and improves mating connection safety. Supports operating temperatures from -35°C to 85°C, suitable for various environmental conditions. Designed for surface mount technology with solder termination for robust PCB attachment.

Compact and shockproof design is ideal for handheld devices and portable electronics. Provides stability on PCB with mounting bosses and metal fittings to protect mechanical stress. Voltage rating up to 50 V and current rating of 300 mA for board-to-board communication.
