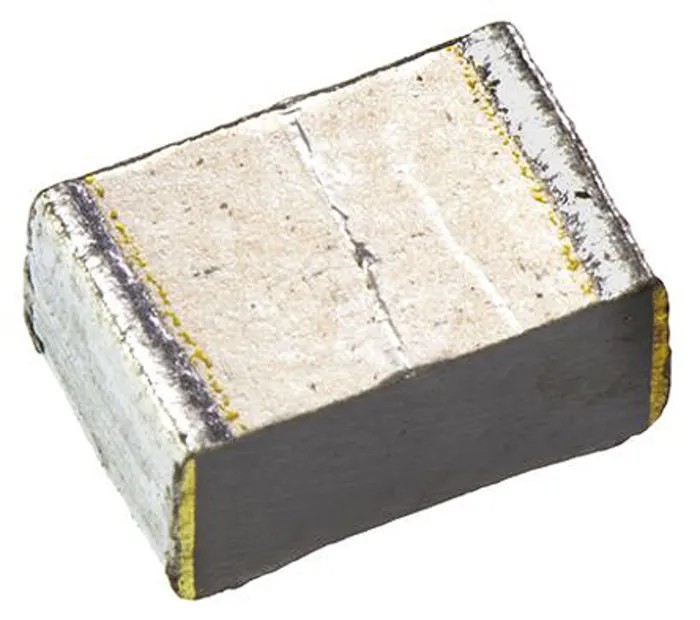

Panasonic ECHU1C683GX5 ECHU(X) Series 16V dc 16V ac 68nF Surface Mount Film Capacitor
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 1.5mm |
| Length | 3.2mm |
| Model | ECHU1C683GX5 |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ECHU(X) |
| Maximum Operating Temperature | 125°C |
| Capacitance | 68nF |
| Standards/Approvals | RoHS |
| Rated AC Voltage | 16V ac |
| Rated DC Voltage | 16V dc |
Key Features
- Constructed with mould-less stacked metallised PPS film for durability.
- Compact and lightweight design suitable for space-constrained circuit boards.
- Low equivalent series resistance (ESR) for efficient performance.
- Rated for maximum operating temperature of 125°C ensuring wide thermal tolerance.
- Optimized for reflow soldering processes in surface mount technology.
- Meets RoHS standards for environmental compliance.
- Recommended for time-constant, oscillation, resonance, filtering and audio circuit applications.
- Designed without automotive standards compliance.
Product Description
Panasonic ECHU1C683GX5 ECHU(X) series surface mount film capacitor features a 68nF capacitance, rated voltage of 16V DC and 16V AC, and compact dimensions of 3.2 mm length, 2.5 mm width, and 1.5 mm height. Constructed from stacked metallised PPS film with a mould-less design, this capacitor provides lightweight and reliable performance optimized for reflow soldering processes.
This capacitor is rated for a maximum operating temperature of 125°C and complies with RoHS environmental standards. With low equivalent series resistance, it is ideal for improving efficiency in electronic circuits.
Applications include time-constant circuits, oscillation and resonance, filtering, and audio circuits. It is a surface mount capacitor not designed for automotive use but suitable for general electronics manufacturing and industrial applications where durable and compact components are required.
The product is supplied on a reel, facilitating automated insertion and improved production efficiency in PCB assembly lines. Constructed with mould-less stacked metallised PPS film for enhanced durability. Compact and lightweight design for space-saving circuit boards.
Low ESR for efficient electrical performance. Maximum operating temperature of 125°C for use in demanding environments. Optimized for surface mount technology and reflow soldering. Compliant with RoHS environmental standards.
Ideal for time-constant, oscillation, resonance, filtering, and audio circuits. Non-automotive specification for general electronics and industrial use. Explore the full range of Film Capacitors and other electronic components at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 68nF.
It is rated for 16V DC and 16V AC.
The dimensions are 3.2 mm in length, 2.5 mm in width, and 1.5 mm in height.
The maximum operating temperature is 125°C.
This model supports surface mounting.
It is constructed with mould-less stacked metallised PPS film.
Yes, it meets RoHS standards for environmental compliance.
It is recommended for time-constant circuits, oscillation, resonance, filtering, and audio circuits.
This model features low equivalent series resistance (ESR) for efficient performance.
The country of origin is India.
It is supplied on a reel, which facilitates automated insertion in PCB assembly.
No, it is designed without automotive standards compliance and is intended for general electronics and industrial use.
