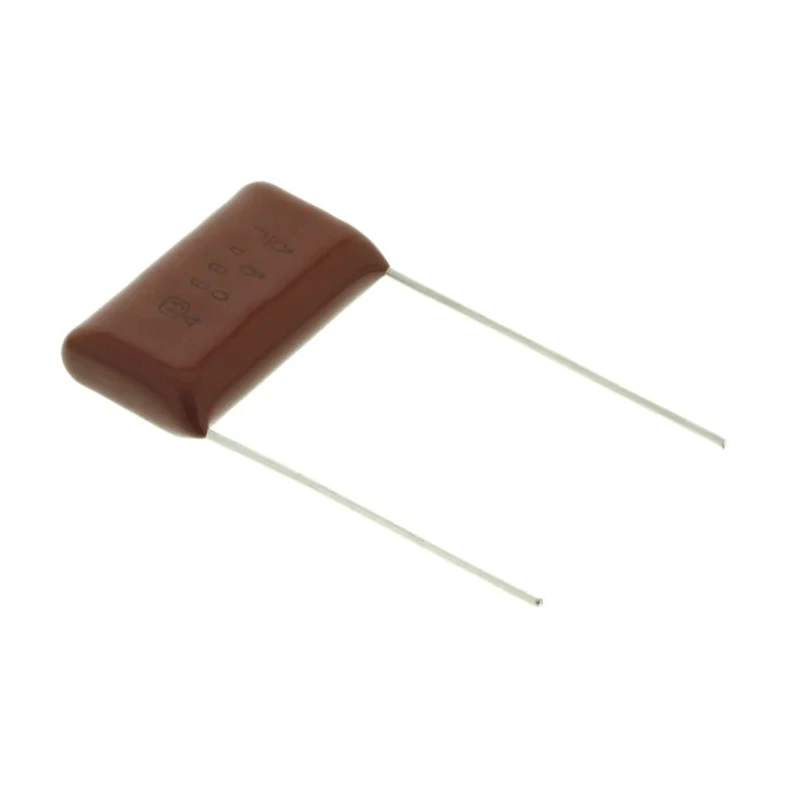

Panasonic Film Capacitor 680 nF 400V AC 400V DC Through Hole ECQE4684JF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 16.5mm |
| Length | 26mm |
| Model | ECQE4684JF |
| Width | 7mm |
| Mount Type | Through Hole |
| Series | ECQE(F) |
| Maximum Operating Temperature | 105°C |
| Capacitance | 680nF |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 400V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
Key Features
- Features metallised polyester film construction with flame retardant epoxy coating.
- Capacitance value of 680 nF ideal for general purpose electronic circuits.
- Lead pitch of 22.5mm with 0.8mm lead diameter for secure through-hole mounting.
- Operating temperature up to 105°C suitable for demanding environments.
- Complies with automotive standard AEC-Q200 and approvals CSA E60384-14, EN 60384-14, UL 60384-14.
- Compact size with length 26mm, width 7mm, and height 16.5mm for space efficient PCB design.
- Self-healing, non-inductive capacitor providing excellent electrical performance.
- Recommended for general purpose use in power, electronics, and industrial equipment.
Product Description
Panasonic ECQE4684JF is a high-quality film capacitor featuring a robust flame retardant epoxy resin coating and metallised polyester film construction. Designed to be self-healing and non-inductive, these capacitors offer excellent electrical characteristics making them suitable for various industrial, electronic, and power applications.
This capacitor is rated for both 400V AC and 400V DC operation, ensuring reliable performance under fluctuating voltage conditions. Its compact through-hole mount design with a lead pitch of 22.5 mm and a lead diameter of 0.8 mm allows for ease of installation on printed circuit boards.
The maximum operating temperature of 105°C enables usage in demanding environments, including automotive-grade applications compliant with AEC-Q200 standards. Additionally, it meets global safety and quality standards such as CSA E60384-14, EN 60384-14, and UL 60384-14 certifications.
With a capacitance of 680 nF, this capacitor is ideal for general purpose electronic circuits requiring stable capacitance and durability. Its compact dimensions - 26 mm length, 7 mm width, and 16.5 mm height - make it suitable for space-conscious designs.
Flame retardant epoxy resin coating for enhanced safety. Metallised polyester film construction provides stability and performance. Rated for 400V AC and 400V DC voltage operation. Lead pitch of 22.5mm suitable for through-hole mounting.
Meets automotive standard AEC-Q200 and major global safety approvals. Compact size optimizes PCB real estate usage. Self-healing and non-inductive for reliable electrical characteristics. Suitable for general purpose applications in industrial, electronic, and power systems.
This Panasonic Film Capacitor is ideal for industrial machines, power supply units, electronic assemblies, and automotive electronics requiring a reliable capacitor solution with standardized quality.
Discover more precision electronic components in the Electronics & Electricals category at EnvMart, where quality and performance converge for your technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this capacitor is 680 nF, making it suitable for general purpose electronic circuits.
This film capacitor is rated for both 400V AC and 400V DC operation, ensuring reliable performance under varying voltage conditions.
The maximum operating temperature for this model is 105°C, allowing it to be used in demanding environments.
The dimensions of the capacitor are 26 mm in length, 7 mm in width, and 16.5 mm in height, making it compact for PCB designs.
It features a lead pitch of 22.5 mm and a lead diameter of 0.8 mm, designed for secure through-hole mounting.
This model complies with the automotive standard AEC-Q200, ensuring it meets specific quality and reliability requirements for automotive applications.
The capacitor features metallised polyester film construction with a flame retardant epoxy coating, enhancing its safety and performance.
Yes, this capacitor is recommended for general purpose use in industrial equipment, power supply units, and electronic assemblies.
This model uses a through-hole mounting type, making it easy to install on printed circuit boards.
It meets global safety and quality standards including CSA E60384-14, EN 60384-14, and UL 60384-14 certifications.
The series designation for this capacitor is ECQE(F), indicating its specific product line within the Panasonic range.
This self-healing, non-inductive capacitor provides excellent electrical performance, making it reliable for various applications.
