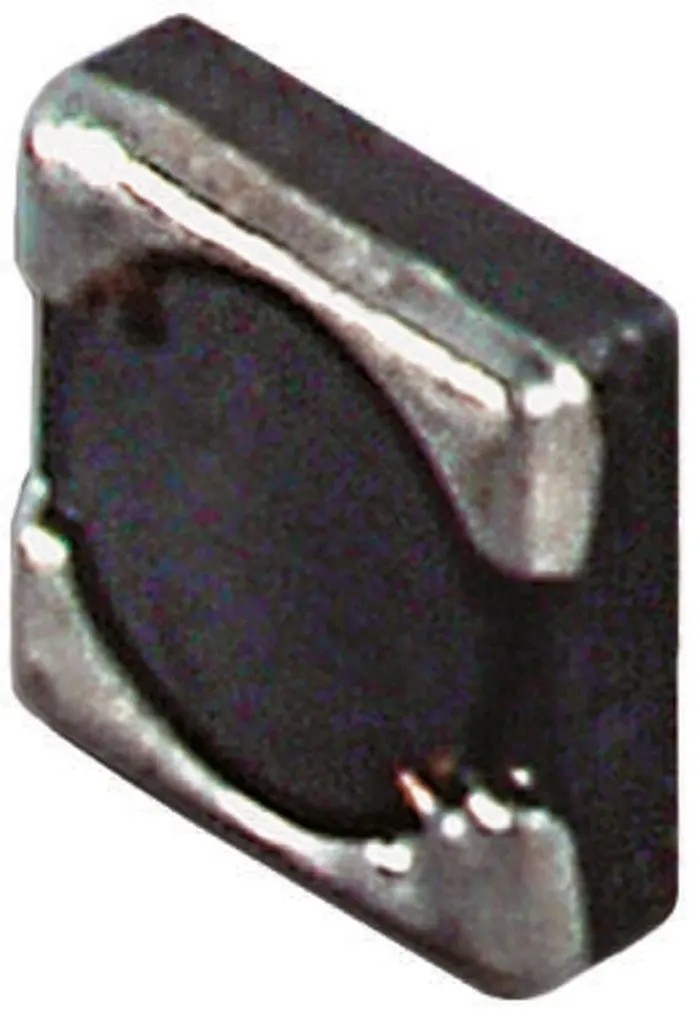

Wurth Elektronik WE-TPC 3816 Shielded Wirewound Surface Mount Inductor 22 μH ±30% 510 mA 3.8mm x 3.8mm x 1.65mm 744031220

Name: Wurth Elektronik WE-TPC 3816 Shielded Wirewound Surface Mount Inductor 22 μH ±30% 510 mA 3.8mm x 3.8mm x 1.65mm 744031220
Brand: Wurth Elektronik
SKU: 124209
Price: 1.86 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Brand	Wurth Elektronik
Operating Temperature	- 40 to +125°C
Height	1.65mm
Length	3.8mm
Depth	3.8mm
Packaging	Tape & Reel
Series	WE-TPC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	22μH
Package/Case	3816
Maximum DC Current	510mA
Pin Count	2
Maximum DC Resistance	450mΩ
Inductance Tolerance	±30 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	26MHz
Inductor Construction	Wirewound
Standards/ApprovalsREACH, IPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3	2013, RoHS, JEDEC JS709B

Key Features

Magnetically shielded design for low leakage field and improved performance.
Compact 3816 package with dimensions 3.8mm x 3.8mm x 1.65mm.
Wirewound construction on a ferrite core enhances inductance stability.
Operating temperature range from -40°C to 125°C for reliable operation in harsh environments.
Maximum DC resistance of 450 mΩ ensuring low power loss.
Suitable for portable power applications including PDAs, digital cameras, and embedded PC systems.
Compliant with REACH, RoHS, JEDEC, and other relevant industry standards.
Packaged in tape and reel format for automated assembly processes.

Product Description

The Wurth Elektronik 744031220 (WE-TPC Series) is an extremely flat, shielded wirewound Surface Mount Inductor designed for high current capability and minimal magnetic leakage. It features a ferrite core and a wirewound construction ensuring stable inductance of 22 μH with a tolerance of ±30%.

This inductor comes in a compact 3816 package (3.8mm length x 3.8mm depth x 1.65mm height) suitable for modern portable power applications such as PDAs, digital cameras, PCMCIA cards, embedded PC units, and mobile data gathering equipment.

It operates reliably within a temperature range of -40°C to +125°C and has a maximum DC current rating of 510 mA, combined with a maximum DC resistance of 450 mΩ to minimize power loss. The product is magnetically shielded to reduce electromagnetic interference, making it suitable for sensitive electronic designs.

This component conforms to multiple industry standards including REACH, IPC/JEDEC J-STD-020E, IEC 61249-2-21, IEC 60286-3:2013, RoHS, and JEDEC JS709B, assuring compliance and quality.

Magnetically shielded design preventing interference. Compact 3816 surface mount package. Robust wirewound ferrite core construction. Wide operating temperature range from -40°C to 125°C. Maximum DC current of 510 mA. Low DC resistance of 450 mΩ for efficient performance.

RoHS and REACH compliant manufacturing standards. Tape and reel packaging caters to automated assembly lines. This inductor is ideal for industrial, consumer electronic, and telemetric applications requiring compact and reliable magnetic components.
