TDK 5020 Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±20/±30% 2.15 A Idc VLCF5020T-4R7N1R4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.3mm |
| Model | VLCF5020T-4R7N1R4 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 5020 |
| Maximum DC Current | 2.15A |
| Maximum DC Resistance | 96mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a high magnetic shield for reduced interference.
- Designed for use in portable DC to DC converters and power circuits.
- Features a 5020 package with surface mount termination style.
- Operating temperature range from -40°C to 105°C suitable for diverse environments.
- Maximum DC resistance of 96 milliohms ensures efficient power handling.
- Complies with RoHS standards for environmental safety.
- Ideal for power source inductors in mobile devices, HDDs, DVCs, DSCs, and LCD displays.
- Magnetically shielded wire wound choke construction for professional applications.
Product Description
The TDK VLCF5020T-4R7N1R4 is a shielded wirewound surface mount inductor incorporating a ferrite core, delivering an inductance of 4.7 μH with a tolerance of ±20/±30%. It handles a maximum DC current of 2.15 A, making it a reliable choice for power circuits requiring stability and efficient current handling.

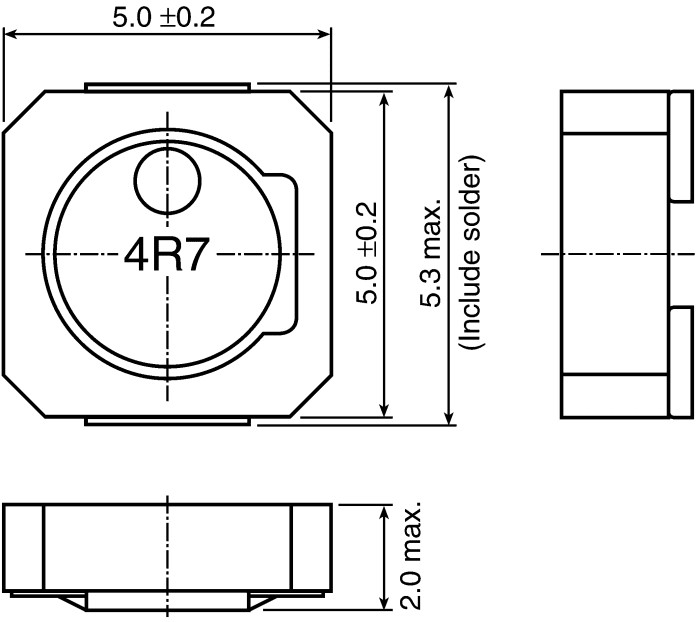

This inductor is housed in a compact 5020 package measuring 5.3 mm in length, 2 mm in height, and 5 mm in depth, optimized for modern surface mount technology assembly.
The VLCF series features high magnetic shielding to minimize electromagnetic interference, enhancing performance in sensitive electronic applications. This professional-grade inductor operates effectively across a broad temperature range from -40°C to 105°C.
It carries RoHS certification, ensuring compliance with environmental directives and suitability for various industrial standards.
Typical applications include power source inductors for mobile electronic devices such as hard disk drives, digital video cameras, digital still cameras, LCD displays, and DC to DC converters, where consistent inductance and current capacity are critical.
High magnetic shield construction for reduced interference. Compact 5020 surface mount package for PCB integration. Rated for up to 2.15 A DC current handling. Operates from -40°C to 105°C for versatile environments. Low DC resistance of 96 mΩ enhances efficiency.
RoHS compliant for environmentally safe applications. Magnetically shielded wire wound choke design. Suitable for professional power circuit designs.
The TDK VLCF5020T-4R7N1R4 inductors are essential components in industrial, electronic manufacturing, and commercial product assembly, contributing to reliable power management and electromagnetic compatibility. Discover more high-quality Inductors and components in the Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 μH with a tolerance of ±20/±30%.
It can handle a maximum DC current of 2.15 A.
This inductor has dimensions of 5.3 mm in length, 5 mm in depth, and 2 mm in height.
The operating temperature range is from -40°C to 105°C.
It features a wirewound construction with a ferrite core and high magnetic shielding to reduce interference.
The maximum DC resistance is 96 milliohms, which enhances its efficiency.
The termination style is surface mount, suitable for modern PCB assembly.
Yes, it complies with RoHS standards for environmental safety.
It is packaged in tape and reel format, which is common for surface mount components.
This inductor is suitable for use in portable DC to DC converters, hard disk drives, digital video cameras, and LCD displays.
It belongs to the VLCF series, which features high magnetic shielding for performance in sensitive applications.
The core material used is ferrite, which contributes to its performance characteristics.
