TDK Shielded Wirewound Surface Mount Inductor 15 μH ±20 to ±30 %, 1.3 A Idc, Ferrite Core, 5020 Package VLCF5020T-150MR71
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 2mm |
| Length | 5.3mm |
| Model | VLCF5020T-150MR71 |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Standards/Approvals | RoHS |
| Package/Case | 5020 |
| Maximum DC Current | 1.3A |
| Maximum DC Resistance | 256mΩ |
| Inductance Tolerance | ±20 to ±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- The inductor features a ferrite core construction for enhanced magnetic performance.

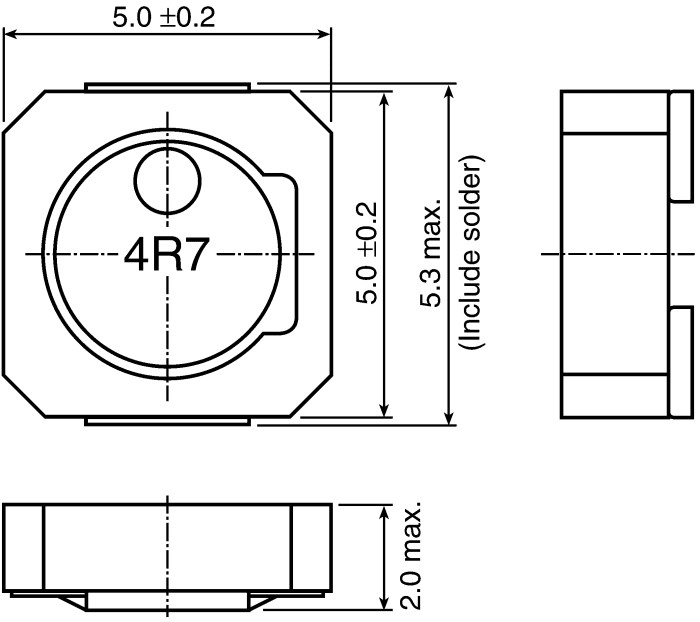

- It has a compact 5020 surface mount package measuring 5.3 mm length, 5 mm depth, and 2 mm height.
- The device is shielded to reduce electromagnetic interference in power circuits.
- Designed for DC to DC converters for mobile devices, including HDDs, DVCs, DSCs, and LCD displays.
- Operates reliably in temperatures from -40°C to 105°C.
- Features a wirewound inductor construction with a moulded design for durability.
- RoHS compliant, ensuring environmental safety standards.
- Termination style is surface mount suitable for automated PCB assembly processes.
Product Description
TDK VLCF5020T-150MR71 is a high-quality shielded wirewound surface mount inductor designed with a ferrite core, offering 15 μH inductance with a tolerance of ±20 to ±30 % and supporting a maximum DC current of 1.3 A.
This professional series VLCF range inductor features a magnetically shielded wire wound design to minimize electromagnetic interference, ideal for power circuits in compact electronic devices.
The 5020 package case dimensions are 5.3 mm in length, 5 mm in depth, and 2 mm in height, making it suitable for surface mount technology (SMT) processes in electronics manufacturing. Its tape and reel packaging facilitates efficient automated assembly.
Operating reliably across a temperature range of -40°C to 105°C, this inductor is designed for mobile device power sources including hard disk drives (HDDs), digital video cameras (DVCs), digital still cameras (DSCs), LCD displays, and other DC to DC converters.
The core material is ferrite, with a wirewound construction that is moulded for mechanical robustness and long-term stability. The component is RoHS compliant, affirming adherence to stringent environmental standards.
The inductor’s high magnetic shield construction enhances circuit performance by reducing interference. Compact size and surface mount termination make it ideal for high-density PCB layouts. Suitable for portable electronics power management and DC to DC conversion applications.
Moulded wirewound design ensures mechanical resilience during assembly and operation. Facilitates efficient manufacturing with tape and reel packaging optimized for SMT machines. This TDK inductor supports industrial, commercial, and mobile electronics applications where space-saving and electromagnetic interference reduction are critical.
Explore more surface mount inductors from TDK and other Electronic Components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 15 μH with a tolerance of ±20 to ±30 %.
It supports a maximum DC current of 1.3 A.
The package dimensions are 5.3 mm in length, 5 mm in depth, and 2 mm in height.
It operates reliably within a temperature range of -40°C to 105°C.
The core material is ferrite, which enhances its magnetic performance.
It is packaged in tape and reel format, facilitating efficient automated assembly processes.
The termination style is surface mount, suitable for surface mount technology (SMT) processes.
It features a wirewound construction with a moulded design for mechanical robustness.
Yes, it is RoHS compliant, ensuring adherence to environmental safety standards.
It is designed for use in DC to DC converters for mobile devices, including HDDs, DVCs, DSCs, and LCD displays.
The maximum DC resistance is 256 mΩ.
This model belongs to the VLCF series of inductors.
