E-TEC 2.54 mm Pitch Vertical 24 Way Through Hole Turned Pin Open Frame DIL Socket 3A POS-624-S001-95

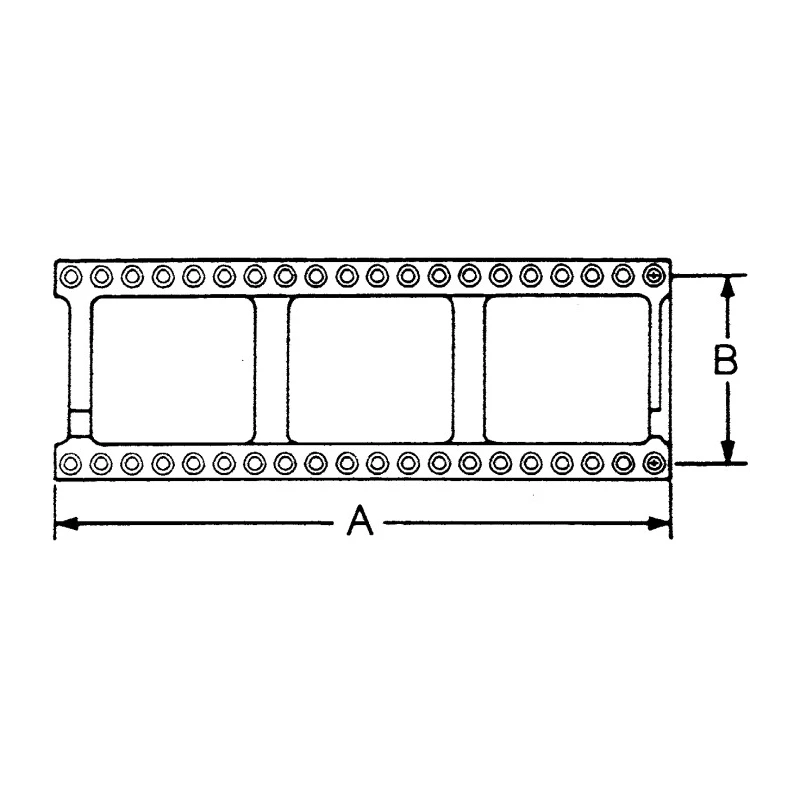

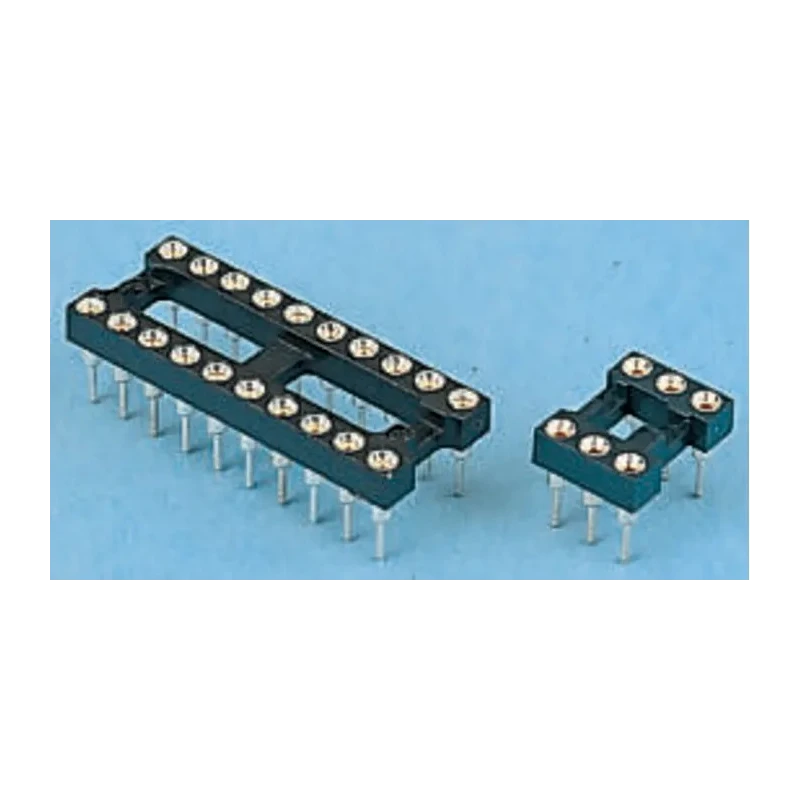

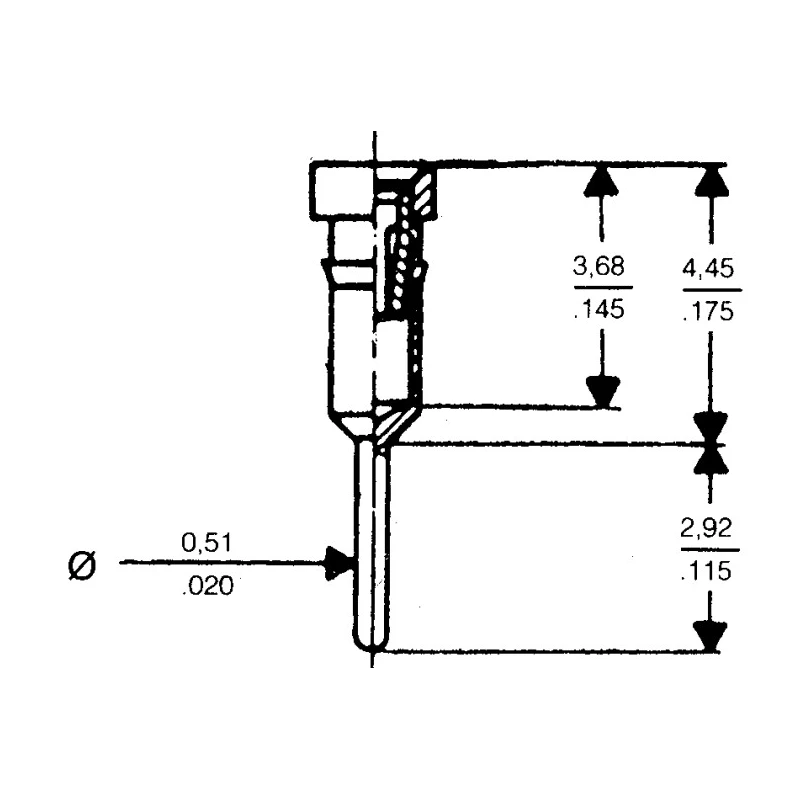

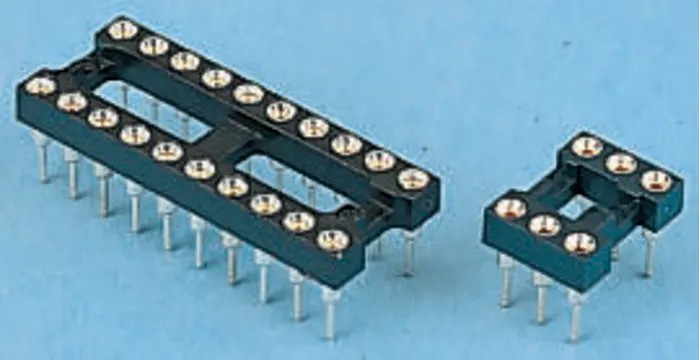

E-TEC POS-624-S001-95 is a precision 2.54 mm pitch vertical 24 way through-hole turned pin open frame DIL socket designed for use in electronic and industrial applications. It offers high reliability for circuit board connections operating at 3A current and 500V voltage rating, making it suitable for demanding electrical component assemblies.

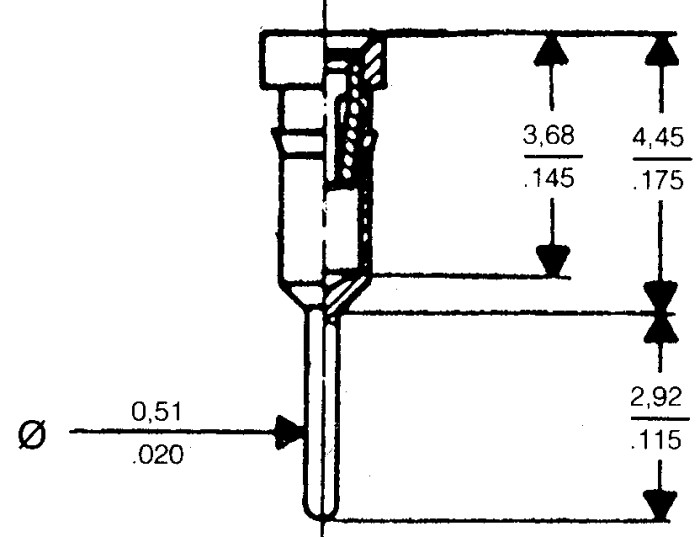

The socket features precision gold plated 'tulip' grip contacts combined with tin-plated brass pins to ensure robust electrical connections and minimize corrosion. Its open frame construction maximizes heat dissipation, enhancing performance under continuous use. This component supports a wide operating temperature range from -65°C to +125°C, suitable for harsh industrial environments. The polybutylene terephthalate housing provides excellent insulation and mechanical strength.

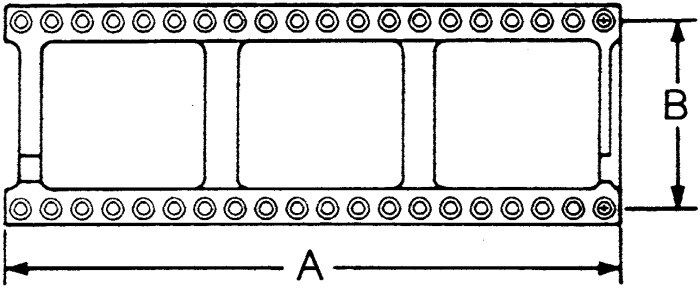

With 24 contacts spaced at 2.54 mm pitch and a row width of 15.24 mm, this socket fits standard dual inline package (DIP) integrated circuits. It is designed for through-hole mounting and solder termination, ensuring secure and stable assembly on printed circuit boards. The contact material uses beryllium copper alloy, offering excellent conductivity and mechanical resilience. The socket has a contact life rated at 100 cycles, suitable for applications requiring frequent maintenance or replacement.

This product prevents capillary action during soldering, maintaining reliable connection integrity without flux contamination. Typical applications include industrial electronic equipment, manufacturing test setups, laboratory devices, and HVAC control systems where secure and precise electronic connections are critical.

The package includes one E-TEC POS/POO/PCL series DIL socket. This component meets rigorous electrical and mechanical standards though does not carry specific certifications. For more electronic connection solutions and industrial-grade sockets, explore the Electronics Components category on EnvMart.

This DIL Socket features 24 contacts with 2.54 mm pitch for precise pin alignment. The open frame construction enhances heat dissipation during operation. Contacts use gold plated 'tulip' grip for precision and tin-plated brass pins for durability.

Supports a rated current of 3A and can operate up to 500V. Suitable for vertical mounting with through-hole termination. Operates reliably across a temperature range of -65°C to +125°C. The housing is made of polybutylene terephthalate for electrical insulation and strength.

Designed for 100 cycles of contact life, ensuring longevity. Prevents capillary action with solder and flux on PCBs, maintaining signal integrity. Ideal for industrial and electronic component manufacturing, including PCB assembly.
