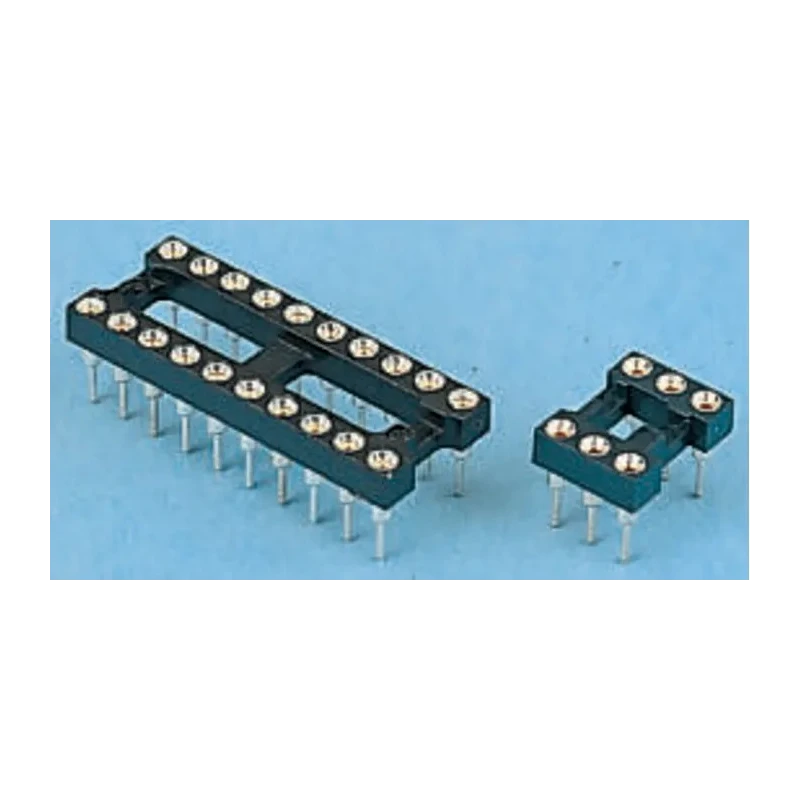

E-TEC 2.54 mm Pitch Vertical 28 Way Through Hole Turned Pin Open Frame DIL Socket 3A POS-628-S001-95

E-TEC POS-628-S001-95 is a high-quality 2.54 mm pitch vertical 28 way through hole turned pin open frame DIL socket rated at 3 amperes, suitable for electronic circuit applications requiring reliable IC socket connections.

This socket features precision gold plated 'tulip' grip contacts combined with tin plated pins to ensure excellent electrical conductivity and corrosion resistance. The open frame design allows for enhanced heat dissipation to maintain operational stability in demanding environments.

Constructed from beryllium copper alloy contacts and polybutylene terephthalate housing, it offers robust mechanical and electrical performance. The socket maintains consistent insulation resistance above 5 x 10^9 ohms at 500 VDC, ensuring safety and reducing leakage currents.

Its operating temperature range extends from -65°C up to +125°C, making it suitable for industrial, laboratory, and commercial electronic applications requiring temperature resilience. The solder termination type ensures strong connections on PCBs configured for through hole mounting, supported by brass pins for mechanical strength.

The dimensions of 35.5 mm length and 4.45 mm width with a 15.24 mm row width make it compatible with various electronic assembly requirements. It supports voltages up to 500V, making it versatile for diverse voltage environments.

The socket ensures 100 cycles of reliable contact life for longevity in electronic operation. Its vertical orientation suits PCB assembly where space and alignment are critical. Ideal for use in electronics manufacturing, testing setups, industrial control units, and other precision instrumentation.

No certifications included; strictly designed for new condition and manufactured in compliance with industry standards. The E-TEC POS/POO/PCL series offers quality open frame sockets for demanding DIP interface applications.

Choose E-TEC POS-628-S001-95 for a dependable IC socket solution compatible with standard electronic components and manufacturing processes. Explore more E-TEC products and related DIL Socket solutions at EnvMart.
