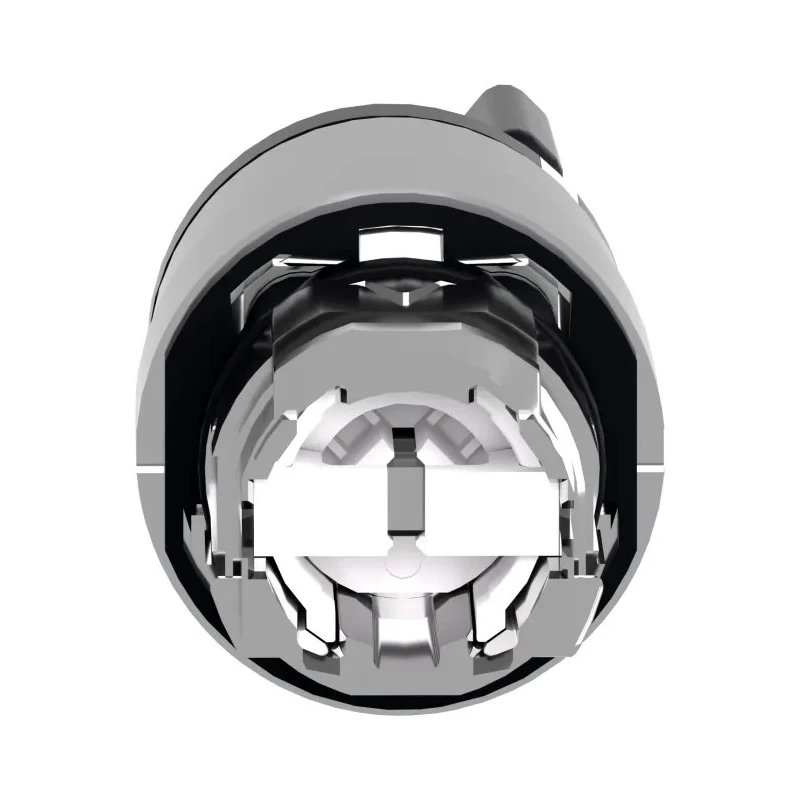

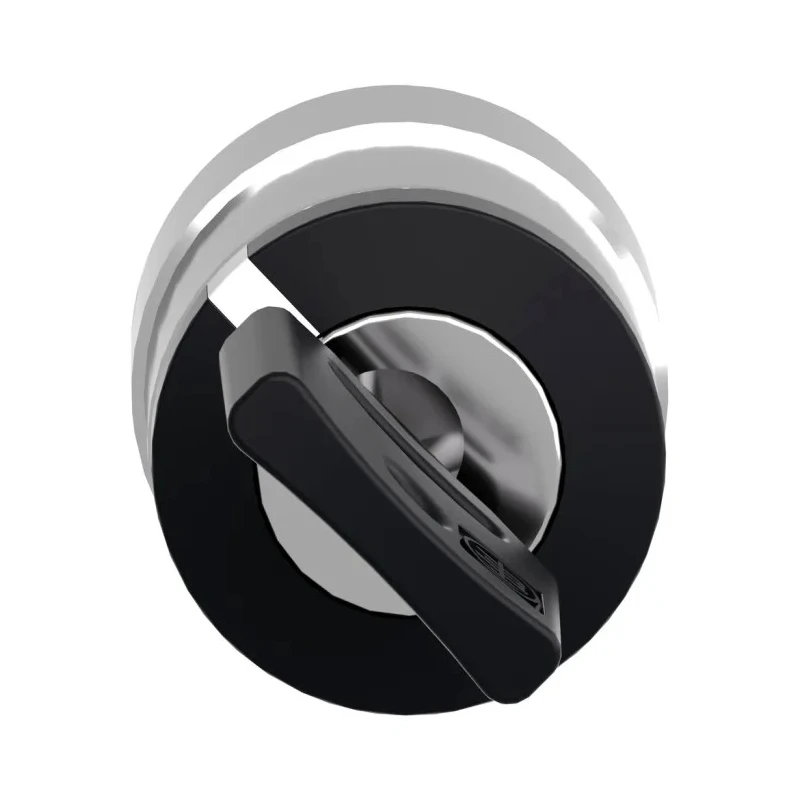

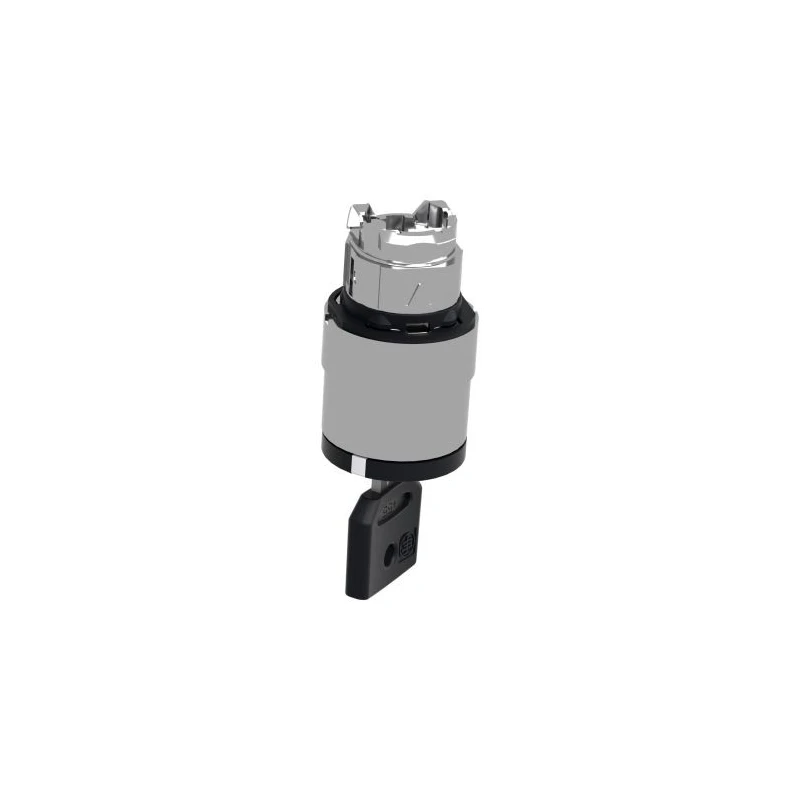

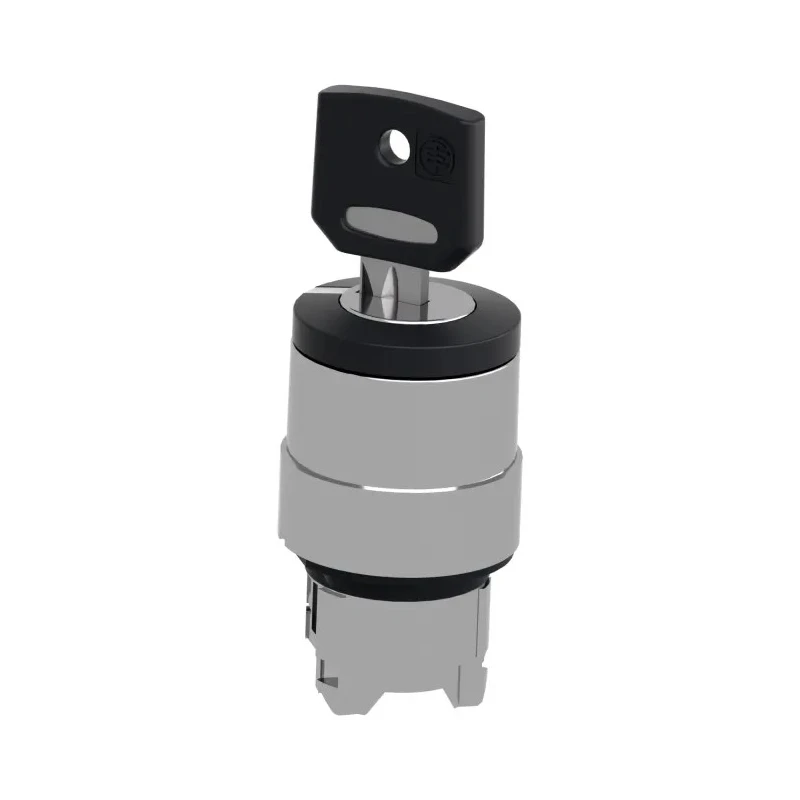

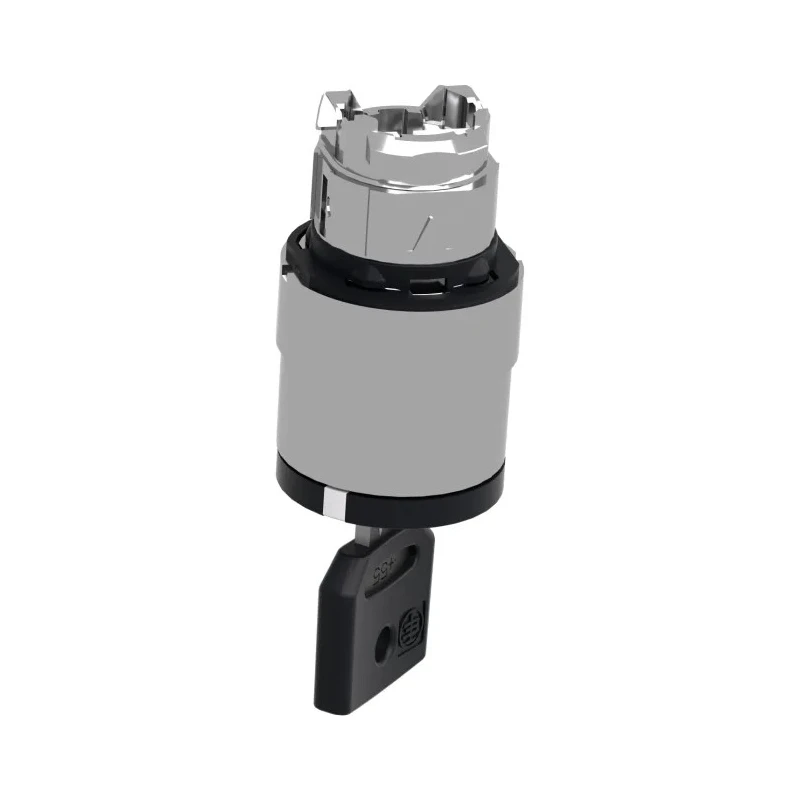

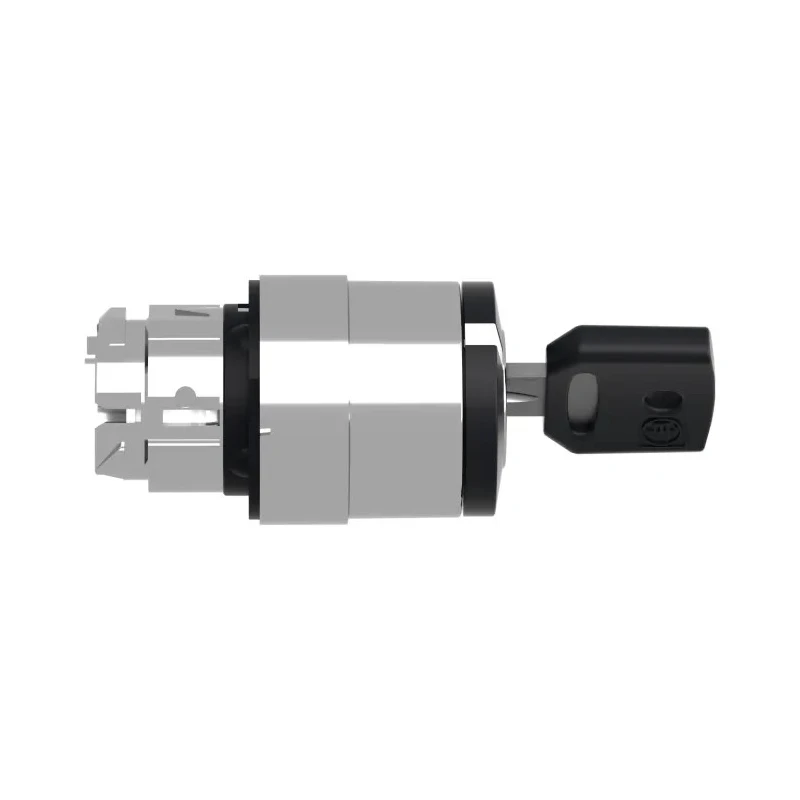

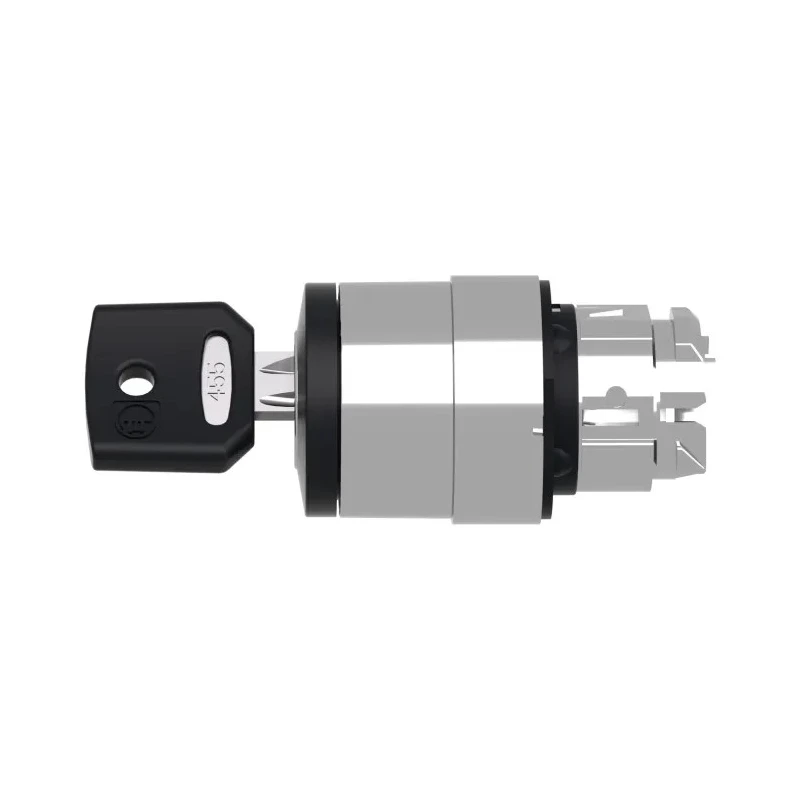

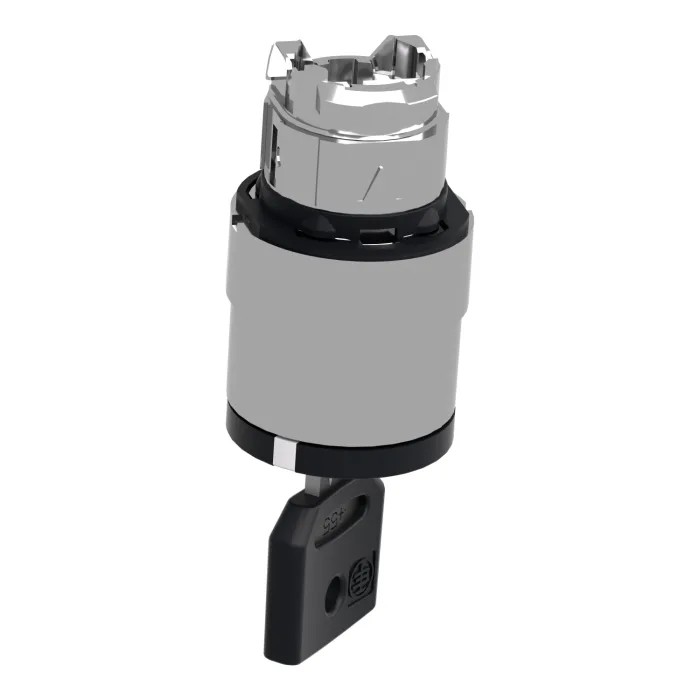

Schneider Electric Harmony 2-position Key Switch Head, Spring Return to Centre, 22mm Cutout ZB4BG612

Schneider Electric ZB4BG612 Key Switch Head presents a robust solution for industrial control panels, offering a 2-position keyed actuator with spring return to centre operation. Designed for secure and reliable panel access, it features a compact round head profile suitable for 22mm diameter cutouts.

This key switch head is part of the Harmony series and is engineered to withstand tough industrial environments. It provides high ingress protection with IP66 to IP69K ratings, protecting internal components against dust, water, and high-pressure washdowns.

The mechanical design assures up to 1,000,000 operation cycles, reducing maintenance downtime. Chromium-plated metal bezel adds extra surface hardness, ensuring long-term durability and corrosion resistance.

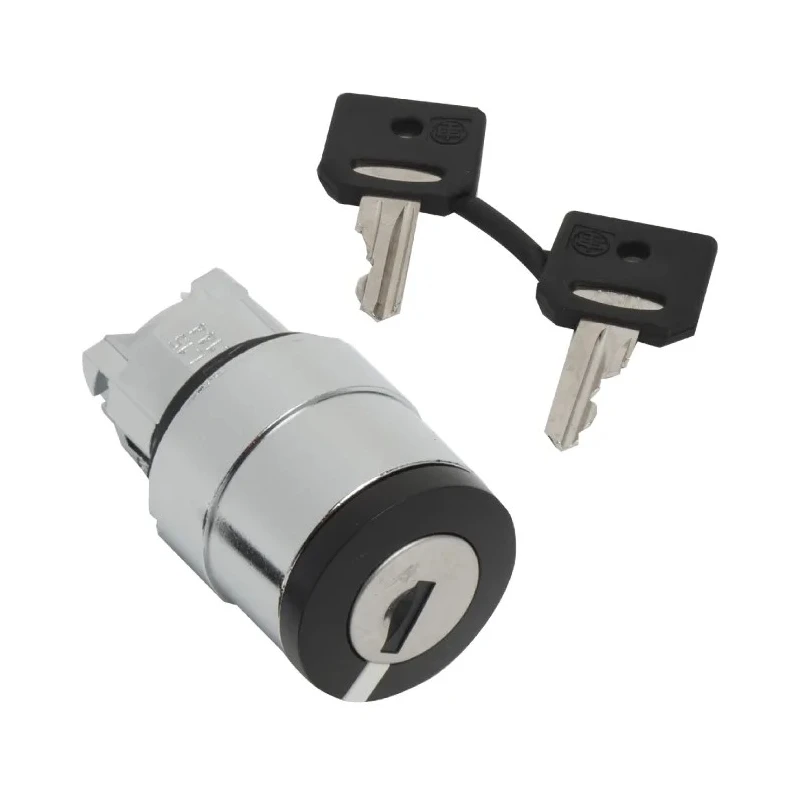

Equipped with two 421E type keys, it offers controlled access, with the key removable only in the left position to secure the locked state. Its 90° angle of throw provides clear position feedback to the operator, while the spring return to centre function avoids accidental latching, enhancing safety and operational accuracy.

The product meets multiple certifications and international standards such as CE, UL 508, EN/IEC 60947, and CSA C22.2 No 14, ensuring compliance and wide applicability in global industrial markets. It is suitable for machinery safety interlocks, automated system control panels, marine, and offshore installations requiring high ingress and impact protection.

The key switch head tolerates industrial vibration frequencies between 2 to 500 Hz and shock pulses up to 50gn, adapting it well for demanding use cases. Its resistance to high-pressure water jets at 7,000,000 Pa and temperatures up to 55°C meets hygiene and washdown requirements in harsh operational environments.

Operates with 90° mechanical travel for two-position selection. Compact 22mm cutout size for ease of panel integration. Spring return to centre reduces operator error and maintains safety. High IP ratings provide superior protection against dust and water ingress.

Durable chromium-plated bezel ensures longevity in industrial settings. Long mechanical life guarantees minimal maintenance and reliable operation. Secure key compatibility for restricted access and control. Can withstand industrial vibration and shock conditions.

Suitable for marine, offshore, and washdown cleaning applications. Certified to multiple international safety and performance standards. Explore more Key Switch Heads and related control panel accessories at EnvMart to enhance your industrial automation solutions.
