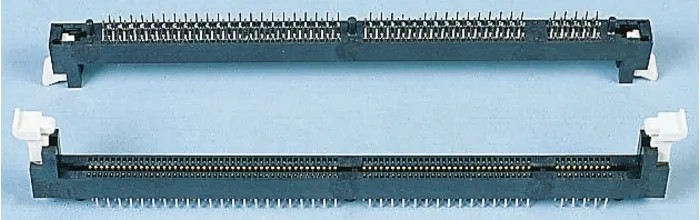

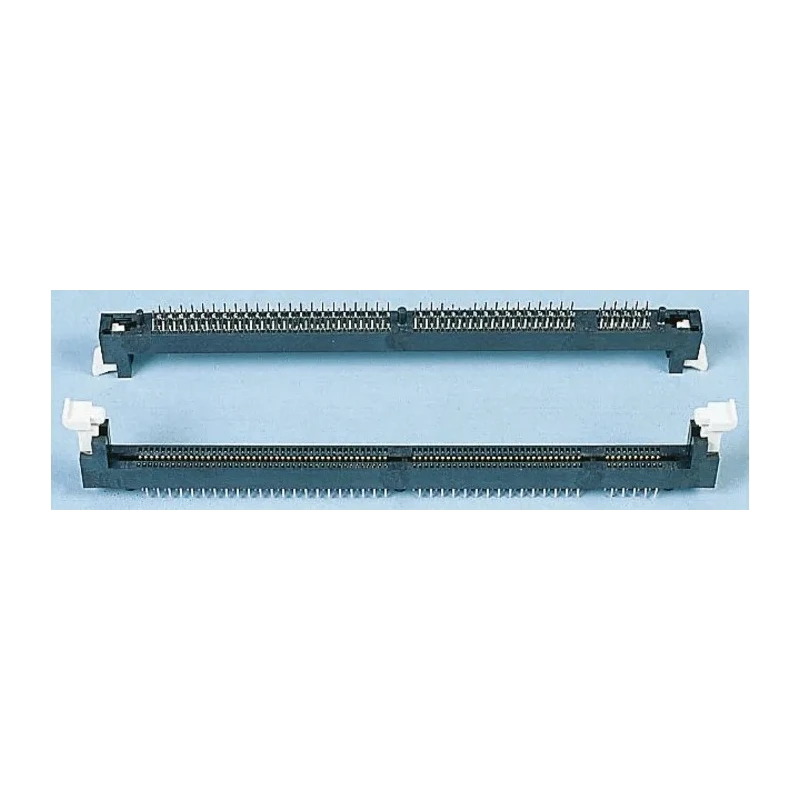

E-TEC 2.54 mm Pitch 168 Way Straight Through Hole Mount DIMM Socket 3.3V 1A DM1-168-VCA9-95/1L

E-TEC DM1-168-VCA9-95/1L is a straight through hole mount DIMM socket with a 2.54 mm pitch designed for memory modules, delivering reliable performance at 3.3V and supporting current up to 1A. This socket type is commonly used in industrial electronic assemblies and computing hardware requiring secure memory interfaces.

The socket features a latched insertion and removal mechanism ensuring stable connectivity and preventing accidental disconnections during operation. Its contacts are made from copper alloy plated with gold over nickel to provide excellent conductivity and resistance to corrosion, supporting long-term reliability in demanding environments.

The polymer housing not only offers mechanical strength but also ensures electrical insulation. It is capable of functioning within a broad temperature range from -55°C to 105°C, supporting applications in harsh industrial and outdoor conditions.

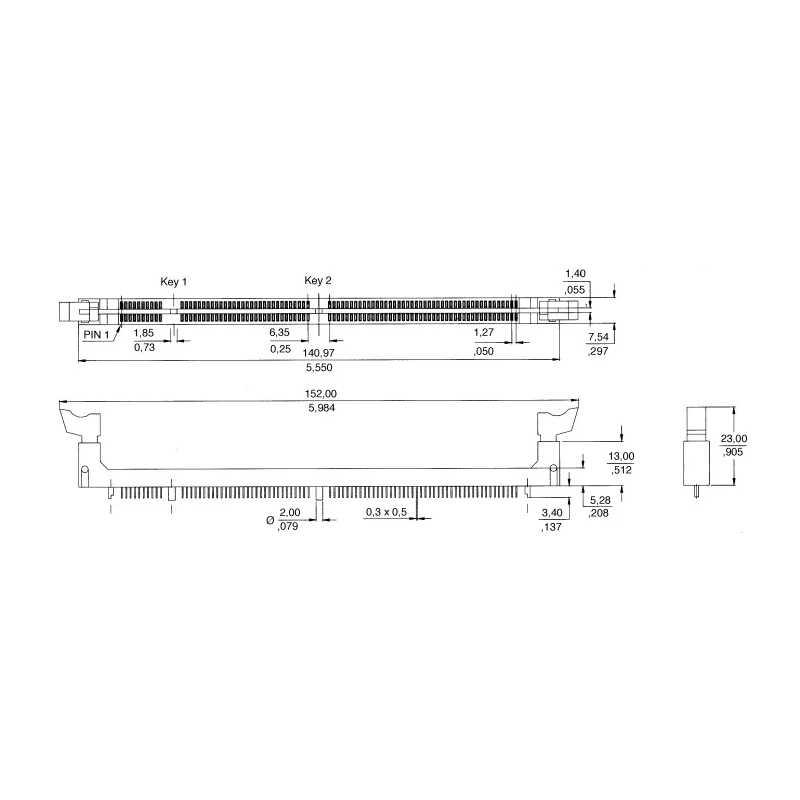

The design includes 168 individual contacts with a pitch of 2.54 mm and row spacing of 1.42 mm, facilitating precise alignment and easy soldering into through hole PCBs. The socket also incorporates polarisation pins to prevent incorrect insertion of memory modules, enhancing safety and operational accuracy.

Additionally, contacts are engineered with an anti-overstress feature, which helps in extending the contact life by mitigating mechanical stress during repeated insertion cycles. This ensures high reliability and durability for critical memory interfacing needs.

This product does not carry specific approvals or industry certifications but adheres to the DM series standards. It is suitable for use in various industries including industrial electronics manufacturing, computer hardware design, and assembly, as well as laboratory and development environments.

Features gold over nickel copper alloy contacts for longevity and conductivity. Supports 3.3V operation with current rating of 1A. Polymer housing provides stable insulation and durability. Capable of operation in extreme temperatures from -55°C to 105°C.

Includes polarisation pins to prevent incorrect connector insertion. Anti-overstress contact design for extended service life. Through hole solder termination suits PCB mounting requirements. Latched mechanism secures memory modules firmly.

Suitable for industrial, manufacturing, and computing applications. Explore a wide range of electronic components and memory socket solutions at EnvMart for all your industrial and manufacturing needs.
