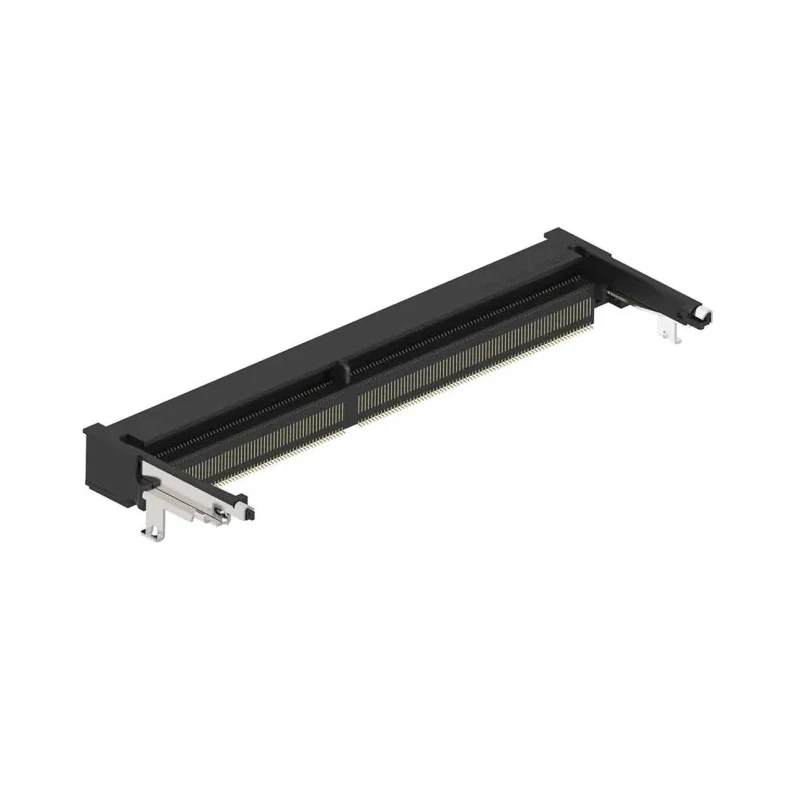

TE Connectivity 0.5 mm Pitch 260 Way, Right Angle Surface Mount SO DIMM Socket 25V, 500mA 2309411-1

TE Connectivity 2309411-1 is a high-quality 0.5 mm Pitch 260 Way right angle surface mount SO DIMM socket designed for integration with small outline dual in-line memory modules used in a variety of electronic applications. Rated for 25V and 500mA, the socket ensures efficient electrical connectivity with minimal resistance.

The contact system uses copper alloy contacts plated with nickel and gold flash to ensure corrosion resistance and reliable signal transmission. Its thermoplastic housing supports operating temperatures up to 85°C, making it suitable for demanding thermal environments.

This memory socket features a latching mechanism that retains the memory module securely while providing ease of module insertion and removal via a cam-in method, facilitating maintenance and upgrades. The right angle orientation and surface mount type optimize board space in compact electronics such as servers, HPC systems, workstations, desktop PCs, storage devices, and communication instruments.

Designed according to JEDEC industry standards, this product supports SO DIMM types commonly found in DDR2, DDR3, and DDR4 memory modules, making it versatile for various generations of memory technology.

Applications for this DIMM socket include industrial electronics, commercial computing, data storage systems, and high-performance computing platforms requiring robust, reliable memory connections.

Equipped with 260 contacts at 0.5 mm pitch for high-density configuration. Right angle orientation for space-saving surface mounting. Contact material: copper alloy with nickel plating and gold flash. Housing made of durable thermoplastic material with high temperature tolerance.

Operating voltage of 25V and current rating of 500mA. Cam-in insertion/removal method with latching for secure retention. Compliance with RoHS standards ensures environmental safety. Suitable for servers, HPC, workstations, communication equipment, and other electronics.
