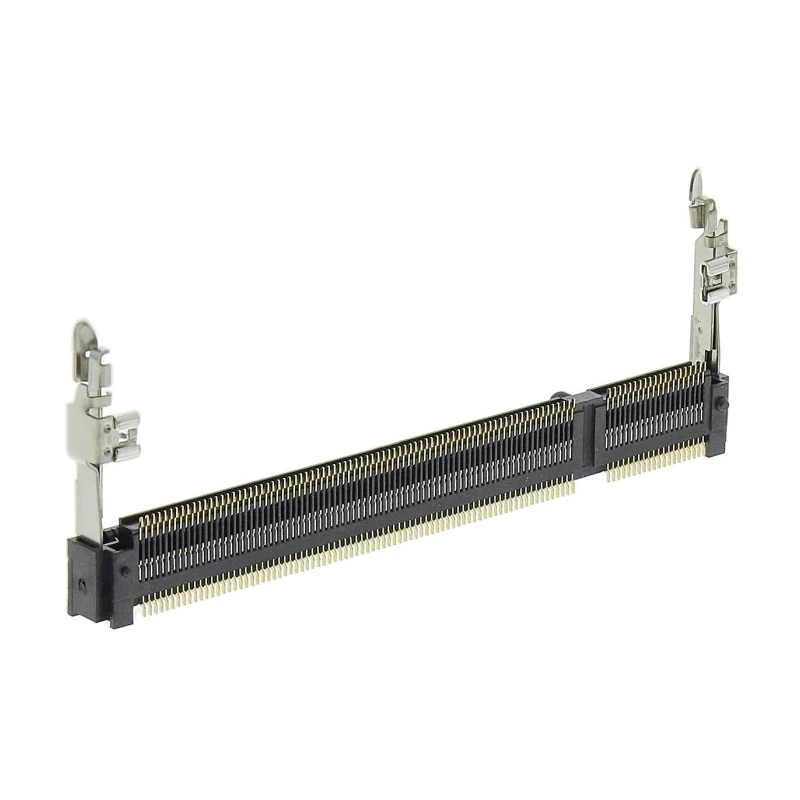

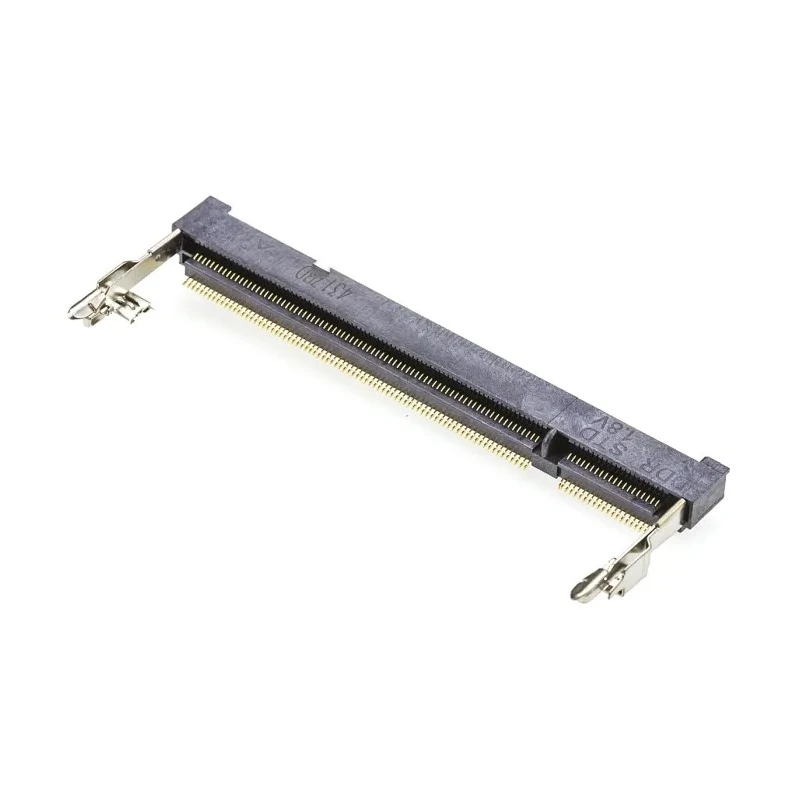

TE Connectivity 0.6 mm Pitch 200 Way Right Angle Surface Mount DDR2 DIMM Socket 1.8V 1473005-4

TE Connectivity 1473005-4 is a DDR2 DIMM Socket component featuring a 0.6 mm pitch and 200-way contact configuration. It is designed with a right angle orientation for surface mount applications operating at 1.8V voltage. This socket provides a reliable connection for DDR2 SDRAM modules and is suitable for industrial and commercial electronics requiring secure and stable memory interconnection.

The socket includes cam-in module loading which facilitates easy memory module insertion and ensures retention. Its contact material consists of copper alloy plated with gold over nickel, optimizing conductivity and corrosion resistance. The housing is molded from durable thermoplastic material to provide insulation and mechanical stability.

Engineered to operate within a minimum temperature of -55°C and a maximum of 85°C, it is compatible with demanding environments such as notebooks, servers, printers, workstations, storage devices, and various communication systems. The termination method employs solder pegs for robust attachment to printed circuit boards.

Additional features include mechanical voltage keying to prevent incorrect module placement and the absence of integrated latches, relying instead on the cam-in mechanism for module retention. This ensures practical ease of use and maintenance.

Applications span across multiple industries including industrial equipment manufacturing, computing hardware, and electronics assembly. Features cam-in module loading for easy insertion and secure retention. Contacts are made of copper alloy plated with gold over nickel for reliable conductivity.

Designed for DDR2 SDRAM memory modules operating at 1.8V. Suitable for use in notebook PCs, servers, workstations, printers, storage, and communication equipment. Operating temperature range from -55°C to 85°C ensures performance in harsh environments.

Thermoplastic housing provides durability and electrical insulation. Solder termination type with solder pegs for secure PCB connection. Mechanical voltage keying prevents incorrect module installation. Latches are not included; secure mounting relied on cam-in loading mechanism.
