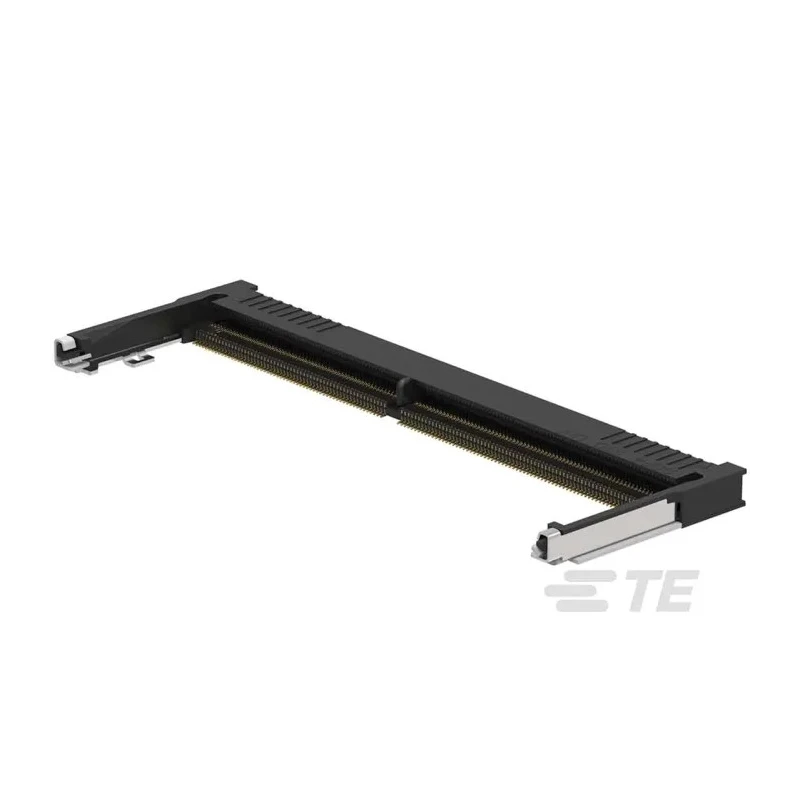

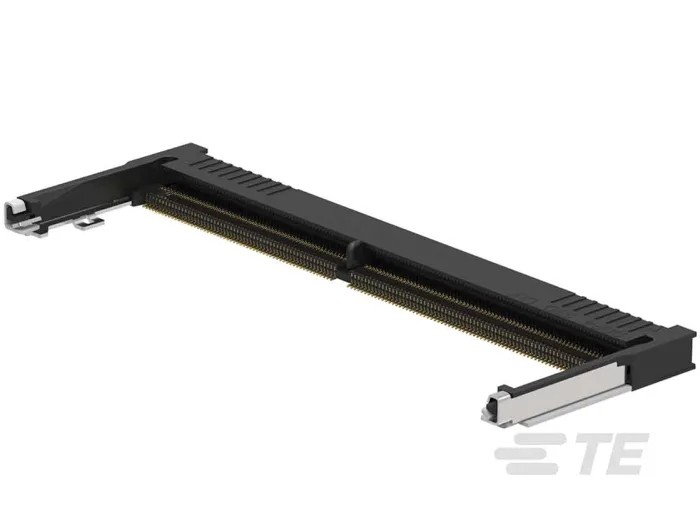

TE Connectivity 0.5 mm Pitch 260 Way Right Angle Surface Mount SO DIMM Socket 25V 500mA 2309407-1

TE Connectivity 2309407-1 is a high-precision 260-way SO DIMM socket featuring a 0.5 mm pitch with right angle orientation designed for surface mount technology applications. Rated for 25 volts and 500 milliamperes, this DIMM socket supports secure and reliable memory module connections in electronic devices.

The socket is made from thermoplastic housing material and copper alloy contacts that are nickel plated and gold flashed to ensure excellent electrical performance and durability. The cam-in insertion and removal method combined with the end latches provides mechanical stability and easy servicing of the memory modules.

Engineered to JEDEC standards, this product is compatible with DDR2, DDR3, and DDR4 memory modules, making it adaptable for a wide range of server, workstation, desktop, notebook, and communication applications. It operates efficiently within a temperature range up to 85°C and maintains a maximum contact resistance of 50 milliohms.

This memory socket is particularly suitable for high-performance computing, mass storage systems, and other industrial and commercial electronic equipment, where reliable memory connections are critical.

Compliant with JEDEC industry standards for SO DIMM modules. Right angle, surface mount socket with 0.5 mm pitch and 260 contacts. Thermoplastic housing with copper alloy contacts plated with nickel and gold flash. Cam-in insertion/removal method with end latches for secure memory retention.

Supports operating temperature up to 85°C and current up to 500mA. Maximum contact resistance of 50 milliohms ensures low loss connectivity. Ideal for servers, HPC, workstations, storage, and communication equipment. Explore more high-quality connectors and Memory Sockets at EnvMart to enhance the reliability and performance of your electronic devices.
