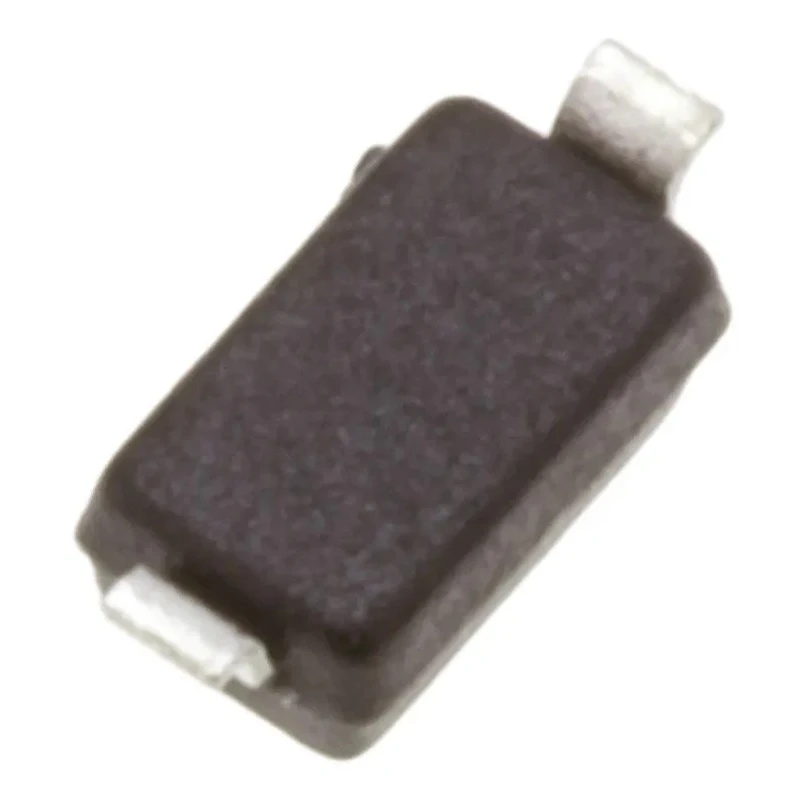

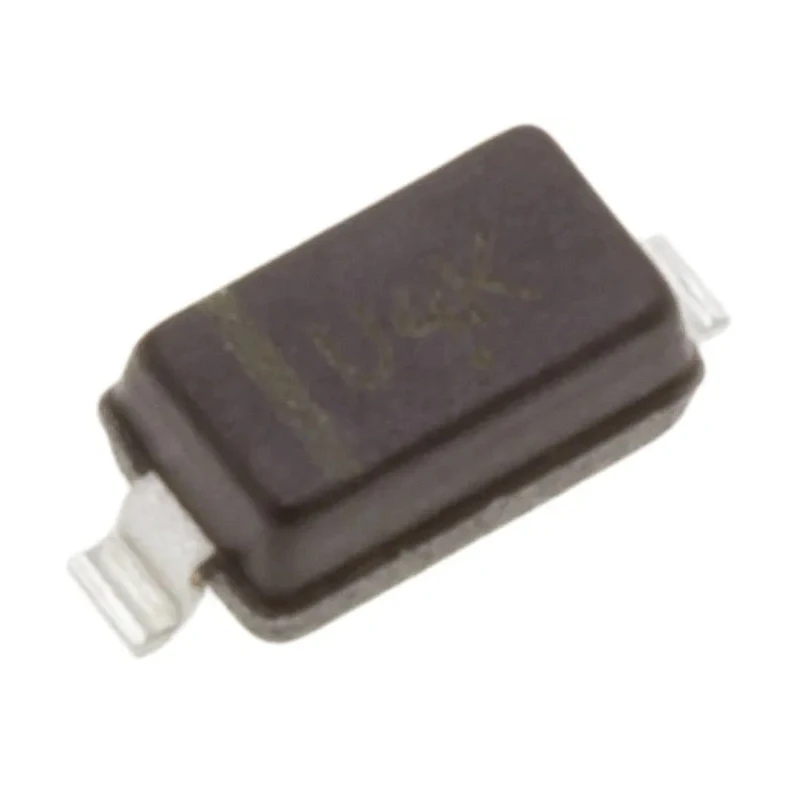

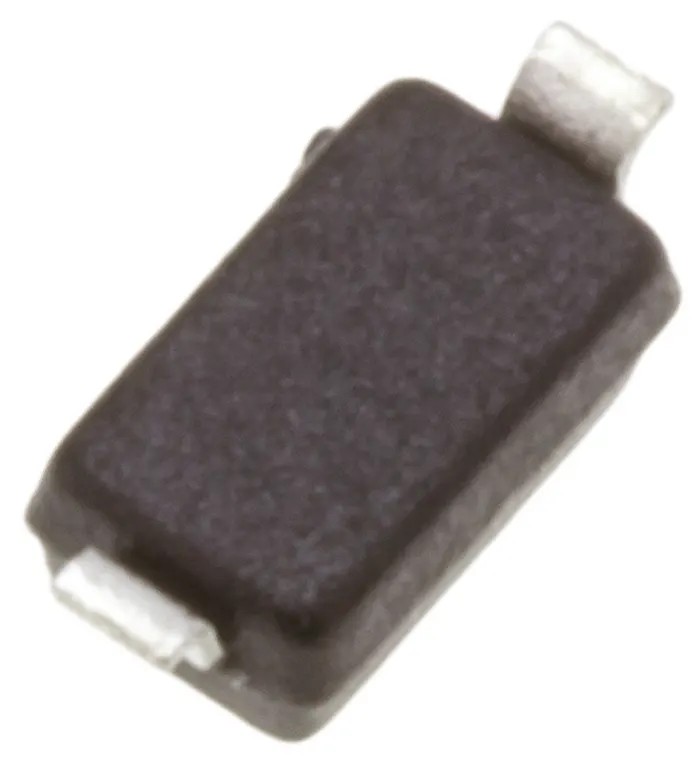

onsemi 1.51 V Zener Diode, Single 500 mW Power Dissipation, 5% Voltage Tolerance, Surface Mount SOD-123 Package MMSZ5V1T1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi 1.51 V Zener Diode, Single 500 mW Power Dissipation, 5% Voltage Tolerance, Surface Mount SOD-123 Package MMSZ5V1T1G

Name: onsemi 1.51 V Zener Diode, Single 500 mW Power Dissipation, 5% Voltage Tolerance, Surface Mount SOD-123 Package MMSZ5V1T1G
Brand: onsemi
SKU: 123508
Price: 0.04 USD
Availability: InStock



Category Zener Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.35mm
Length	3.86mm
Model	MMSZ5V1T1G
Mount Type	Surface
Series	MMSZxxxT1G
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	2μA
Nominal Zener Voltage Vz	5.1V
Zener Type	Voltage Regulator
Maximum Zener Impedance	60Ω
Surface Mount case	SOD-123
5.1V Zener diode,MMSZ5V1 500mWBrand	ON Semiconductor

Key Features

This diode has a voltage tolerance of 5% for reliable voltage regulation.
The device features a 2-pin configuration suitable for surface mount applications.
It offers a maximum reverse leakage current of 2 μA ensuring efficient operation.
The diode operates over a temperature range from -55°C to 150°C, suitable for various environments.
It maintains a maximum Zener impedance of 60 Ω at test current of 5 mA.
The compact SOD-123 package measures 3.86 mm in length and 1.35 mm in height.
The diode is used as a voltage regulator in electrical circuits and semiconductor applications.

Product Description

The onsemi MMSZ5V1T1G is a single Zener diode designed for voltage regulation with a nominal Zener voltage of 5.1 V. It dissipates a maximum power of 500 mW and maintains a voltage tolerance of ±5%, making it suitable for precision voltage regulation applications.

Packaged in a surface mount SOD-123 2-pin case, it facilitates easy PCB mounting in compact electronic assemblies. The diode features a maximum reverse leakage current of 2 μA and a maximum Zener impedance of 60 Ω at a test current of 5 mA, ensuring stability and low power loss.

This diode operates reliably over a wide temperature range from -55°C to 150°C, making it appropriate for industrial, automotive, and consumer electronics environments. Typical applications include voltage regulation and protection circuits in power supplies, consumer electronics, and industrial semiconductor devices.

This diode features a nominal 5.1 V Zener voltage with ±5% tolerance. Maximum power dissipation is 500 mW for moderate load handling. Compact 2-pin surface mount SOD-123 package dimensions: 3.86 mm length, 1.35 mm height.

Maximum reverse leakage current is 2 μA for efficient operation. Wide operating temperature range from -55°C to 150°C ensures durability. Maximum Zener impedance of 60 Ω at 5 mA test current for effective voltage regulation.

Single diode configuration optimized for voltage regulation in compact electronics.

The onsemi MMSZ5V1T1G Zener diode is widely used in semiconductor voltage regulation applications within electronics manufacturing, automotive electronics, and power supply protection scenarios. It benefits engineers by offering reliable clamping at 5.1 V with stable electrical characteristics.
