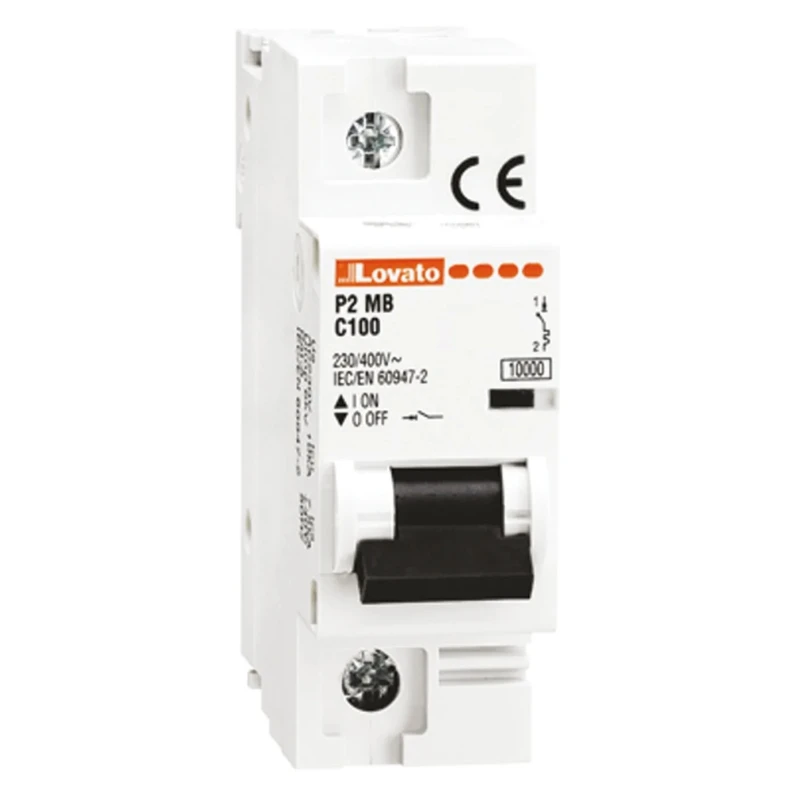

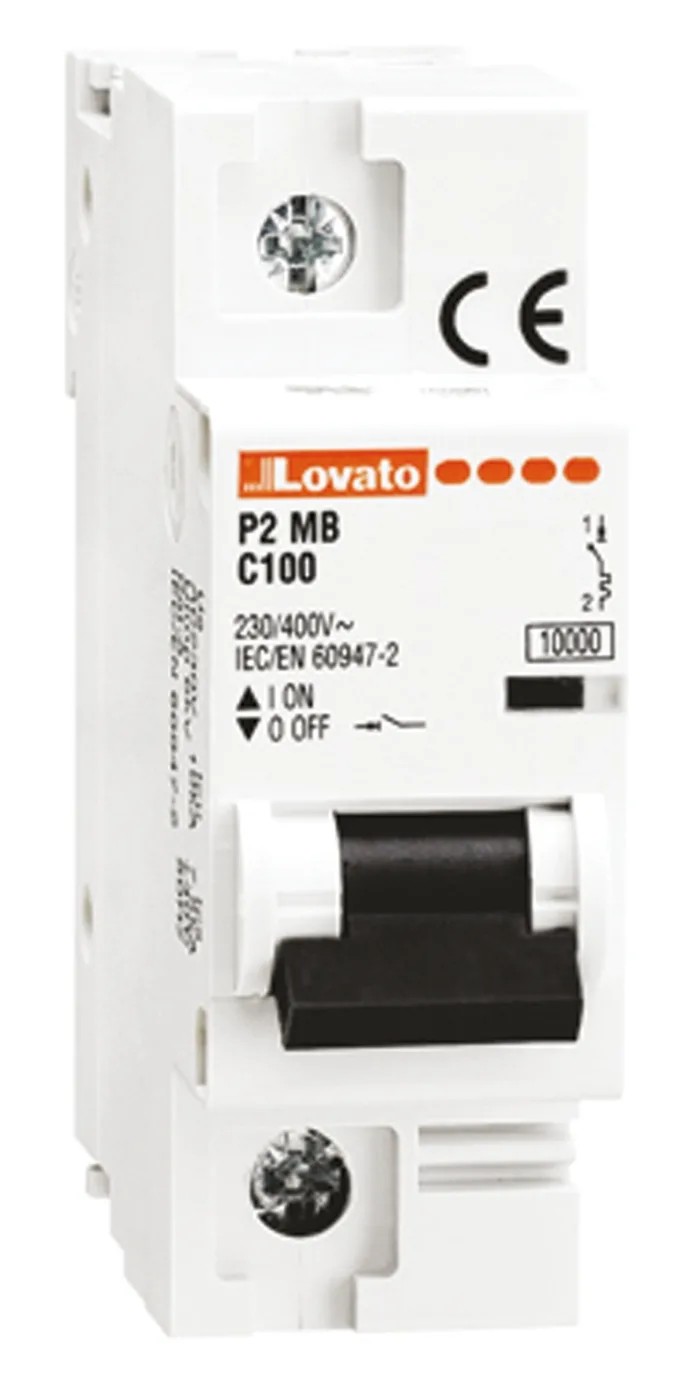

Lovato Electric Modulo P2MB Miniature Circuit Breaker, 1-Pole, 125A, Type C, 230V AC, 60V DC, 10 kA Breaking P2MB

Lovato Electric P2MB Miniature Circuit Breaker (MCB) model P2MB is a specialized 1-pole circuit breaker designed for industrial and commercial electrical protection applications. Rated at 125A, it delivers dependable overcurrent and short-circuit protection with Type C tripping characteristics suitable for general purpose circuits.

This MCB supports operation on AC voltage of 230V and DC voltage up to 60V, with a breaking capacity of 10 kA, making it well-suited for demanding electrical systems where a high interruption rating is necessary. Its design includes a thermal magnetic instantaneous tripping mechanism, ensuring fast response to fault conditions.

The device mounts securely on DIN rails and utilizes screw terminals for robust electrical connections. The compact form factor, with dimensions of 85mm height, 80mm depth, and 27mm width, allows for efficient panel space utilization. Protected to an IP20 rating, it is suitable for indoor environments.

Lovato Electric MCBs comply with several international standards such as CSA, cURus, EAC, IEC/EN/BS 60898-1, IEC/EN/BS 60947-2, and UL 1077, assuring quality and safety. The rated insulation voltage is 400V with a rated impulse withstand voltage of 4 kV, confirming durability under electrical stress. Manufactured in Italy, this MCB is part of the Modulo range, series P2MB.

Designed for DIN rail mounting with screw terminal connections. IP20 rated to ensure safe indoor installations. Instantaneous thermal magnetic tripping mechanism for reliable protection. Compact size minimizes panel space usage.

Compliance with major international electrical safety standards. High breaking capacity of 10 kA for demanding circuits. Rated insulation voltage of 400V and impulse withstand voltage of 4 kV. Manufactured in Italy with stringent quality control.

This MCB is ideal for use in electrical automation, industrial machinery, commercial buildings, and residential electrical panels requiring reliable circuit protection. Lovato Electric's Modulo P2MB series offers flexibility with 1P to 4P versions and add-on blocks for enhanced functionality.

Explore the range of Lovato Electric MCBs and other circuit protection devices on EnvMart for dependable electrical safety solutions tailored to your specific needs.
