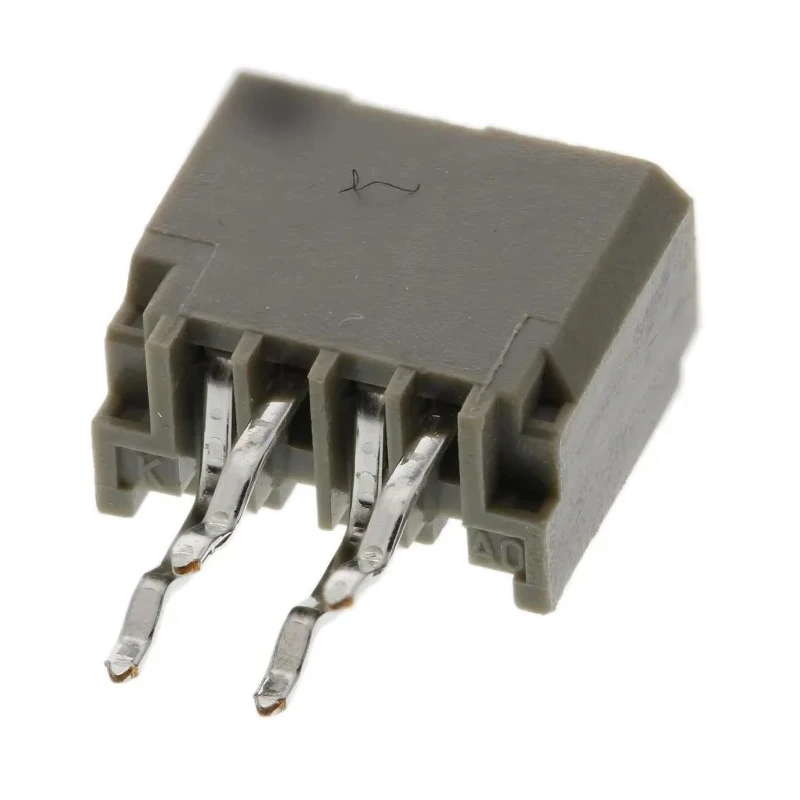

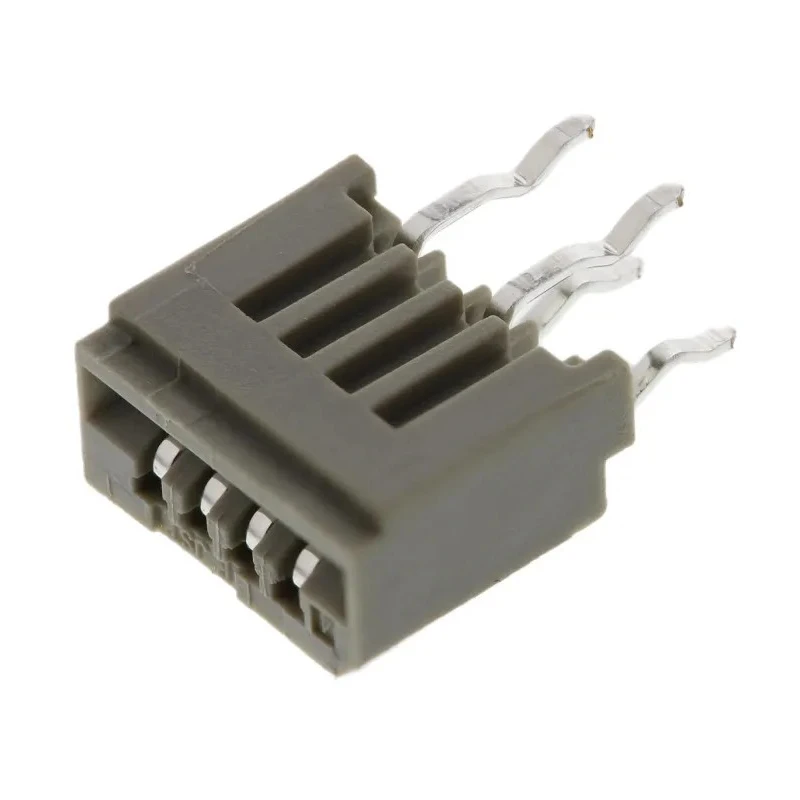

JST FMN 1 mm Pitch 4 Way Straight Female FPC Connector, Solder Termination, 50V DC, 500mA Current 04FMN-BTK-A (LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST FMN 1 mm Pitch 4 Way Straight Female FPC Connector, Solder Termination, 50V DC, 500mA Current 04FMN-BTK-A (LF)(SN)



Category FPC Connector Brand JST Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	JST
Orientation	Straight
Current	500mA
Model	04FMN-BTK-A (LF)(SN)
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	FMN
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	FFC
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1mm
Contact Plating	Tin over Copper
Number of Contacts	4
Contact Gender	Female
Connector Gender	Female
Insertion Force	Non-ZIF
Contact Position	Top
Connector,PCB,FFC,1mm pitch,4 wayBrand	JST

Key Features

Designed for a 1 mm pitch with 4 contact positions for high-density connections.
Contact material is phosphor bronze with tin over copper plating for reliable conductivity.
Through hole mount type ensures robust PCB assembly and mechanical strength.
Connector orientation is straight with top contact position and non-ZIF insertion force.
Rated for 500mA current carrying capacity and 50V DC voltage for low power applications.
Operating temperature range from -25°C to 85°C suitable for various environments.
Housing made of durable polybutylene terephthalate providing good insulation and mechanical support.
Compliance with UL (E60389) and CSA (LR20812) standards for safety and reliability.

Product Description

JST 04FMN-BTK-A (LF)(SN) 4 Way Straight Female FPC Connector features a 1 mm pitch and is designed for solder termination applications at 50V DC with a current rating of 500mA. It is part of the FMN series suitable for top entry FFC cables.

The connector uses phosphor bronze contacts plated with tin over copper to ensure good electrical conductivity and durability. Its through-hole mounting type provides a secure and stable connection to PCB assemblies. The straight orientation and top contact position facilitate facile installation and reliable contact engagement.

This connector is rated for operation in a wide temperature range from -25°C to 85°C, making it applicable in industrial, commercial, and electronic manufacturing environments. The housing is made from polybutylene terephthalate, offering excellent insulation and mechanical stability.

The FMN series connectors comply with UL and CSA certifications, meeting safety standards for electronic connectors. With a single row of four contacts, this female connector allows for compact and efficient wire-to-board connections in devices requiring low voltage and current.

This product is ideal for use in electronic components, power connectors, PCB assemblies, instrumentation, telecommunications, and general industrial equipment requiring reliable FPC connections.

Designed for a 1 mm pitch with 4 contact positions for high-density connections. Contact material is phosphor bronze with tin over copper plating for reliable conductivity. Through hole mount type ensures robust PCB assembly and mechanical strength.

Connector orientation is straight with top contact position and non-ZIF insertion force. Rated for 500mA current carrying capacity and 50V DC voltage for low power applications. Operating temperature range from -25°C to 85°C suitable for various environments.

Housing made of durable polybutylene terephthalate providing good insulation and mechanical support. Compliance with UL (E60389) and CSA (LR20812) standards for safety and reliability. Single row contact arrangement with female connector gender for FFC cables.
