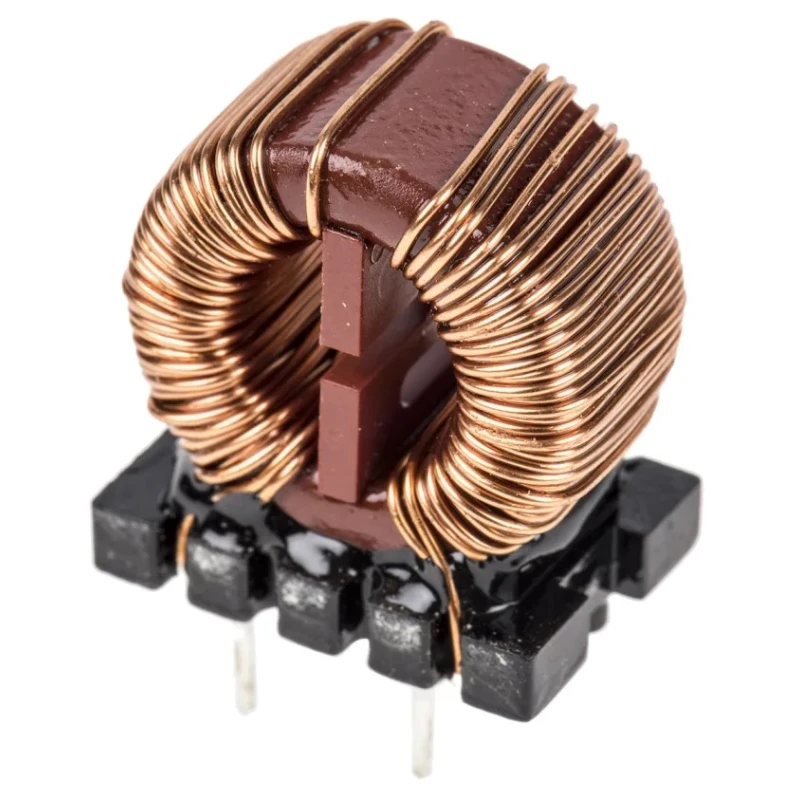

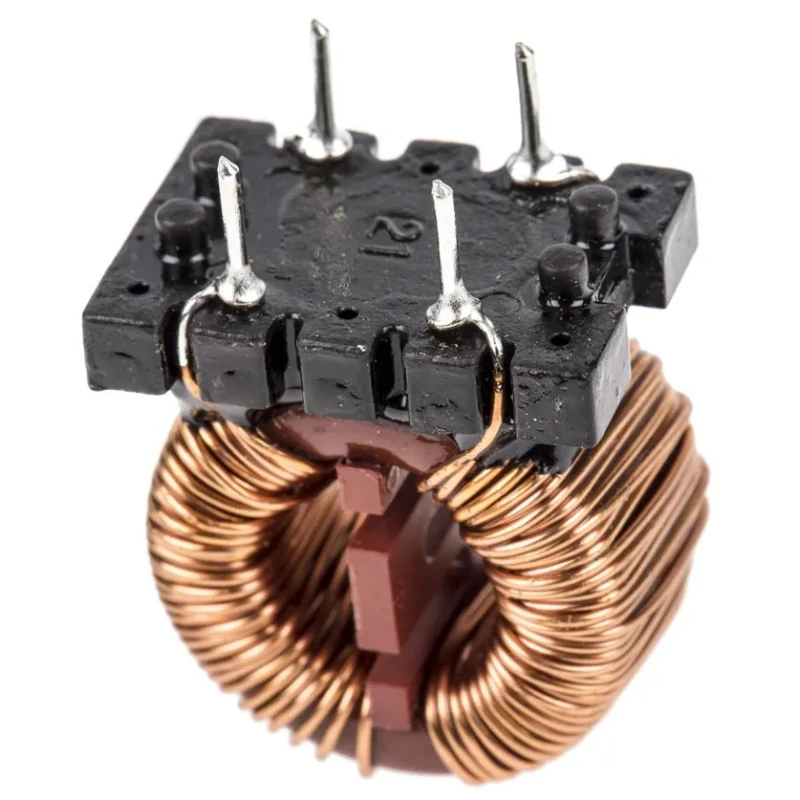

Wurth Elektronik 10 mH Manganese Zinc Common Mode Choke Radial Mount 3 A Idc 105 mΩ Rdc 250V AC 50Hz WE-CMB 744824310
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 27.5mm |
| Brand | Wurth Elektronik |
| Height | 33mm |
| Length | 27.5mm |
| Depth | 18.5mm |
| Mount Type | Radial |
| Series | WE-CMB |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 50Hz |
| Core Material | Manganese Zinc |
| Maximum Voltage | 250V ac |
| Inductance | 10mH |
| Standards/Approvals | VDE, RoHS, REACH, ENEC 10 |
| Maximum DC Current | 3A |
| Maximum DC Resistance | 105mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Lead Pitch | 10mm |
| Lead Diameter | 1mm |
| Wurth Elektronik 10 mH 2 A Common Mode Choke 125 mΩ 230VBrand | Wurth Elektronik |
Key Features
- Compact design with manganese zinc core material for efficient noise suppression.
- Rated for a maximum DC current of 3 amperes with a DC resistance of 105 milliohms.
- Operates at test frequency of 50 Hz with inductance tolerance of ±30%.
- Wide operating temperature range from -40°C to 125°C ensuring reliability in harsh environments.
- Features a solder termination style with lead diameter of 1 mm and lead pitch of 10 mm for easy PCB mounting.
- Conforms to standards including VDE, RoHS, REACH, and ENEC 10 for industry compliance.
Product Description
Wurth Elektronik 744824310 common mode choke is a 10 mH inductive component designed for effective suppression of common mode noise and radio interference in power applications. This radial mount choke is built with manganese zinc core which enhances its inductive properties and noise reduction capabilities. Rated for a maximum DC current of 3 A and a DC resistance of 105 mΩ, it provides reliable performance at a test frequency of 50 Hz and operates safely up to 250V AC.
The device features a compact design with dimensions of 27.5 mm diameter, 27.5 mm length, 33 mm height, and 18.5 mm depth which allows for integration into space-constrained electronic assemblies. The solder termination style with 1 mm lead diameter and 10 mm lead pitch offers ease of assembly on printed circuit boards.
Its wide operating temperature range from -40°C to 125°C and compliance with VDE, RoHS, REACH, and ENEC 10 standards assures suitability for industrial, power electronics, and automotive applications requiring high interference suppression and robust environmental tolerance.
Compact design with manganese zinc core material for efficient noise suppression. Rated for a maximum DC current of 3 amperes with a DC resistance of 105 milliohms. Operates at test frequency of 50 Hz with inductance tolerance of ±30%.
Wide operating temperature range from -40°C to 125°C ensuring reliability in harsh environments. Features a solder termination style with lead diameter of 1 mm and lead pitch of 10 mm for easy PCB mounting. Dimensions: diameter 27.5 mm, length 27.5 mm, height 33 mm, depth 18.5 mm suitable for compact designs.
Conforms to standards including VDE, RoHS, REACH, and ENEC 10 for industry compliance.
This common mode choke is ideal for industrial, power electronics, automotive, and HVAC applications where suppression of electromagnetic interference is critical. It is especially suited for use in power line input and output filters, motor control units, and devices lacking a ground connection. Wurth Elektronik's high-quality design ensures long-term reliability and compliance with environmental and safety standards.
Explore more high-performance leaded inductors and common mode chokes in EnvMart's Electronics Components catalog.
Explore more products in our Common Products category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 mH with an inductance tolerance of ±30%.
It is rated for a maximum DC current of 3 A.
The choke has a diameter of 27.5 mm, a length of 27.5 mm, a height of 33 mm, and a depth of 18.5 mm.
It can operate safely at a maximum voltage of 250V AC.
The core material is manganese zinc, which enhances its inductive properties and noise reduction capabilities.
It operates within a wide temperature range from -40°C to 125°C.
It features a solder termination style with a lead diameter of 1 mm and a lead pitch of 10 mm.
It conforms to several standards including VDE, RoHS, REACH, and ENEC 10.
The DC resistance is rated at 105 milliohms (mΩ).
It is suitable for industrial, power electronics, automotive, and HVAC applications requiring high interference suppression.
The choke operates at a test frequency of 50 Hz.
This model is designed for radial mounting.
