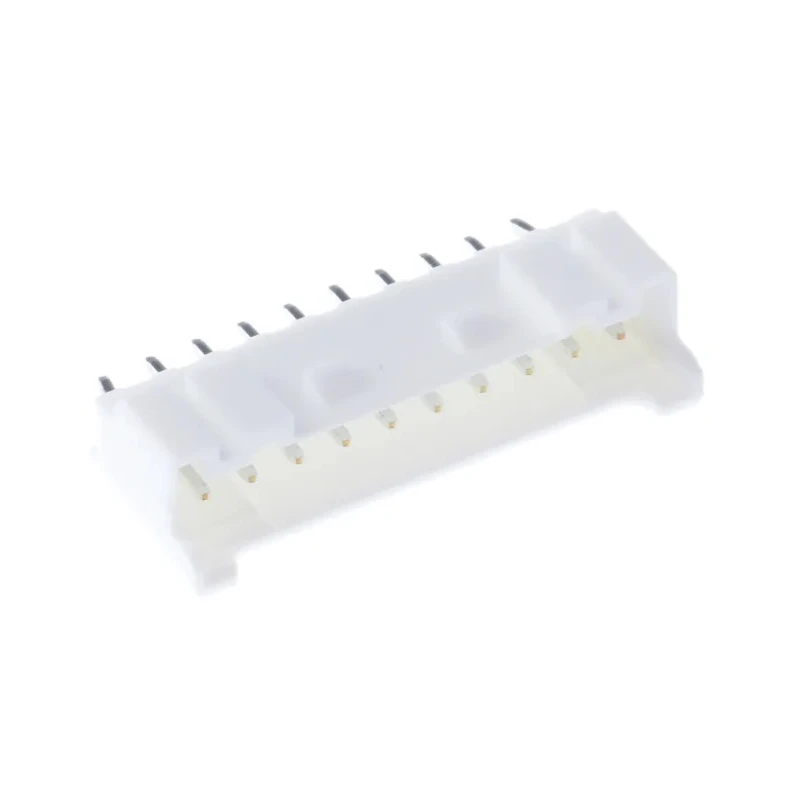

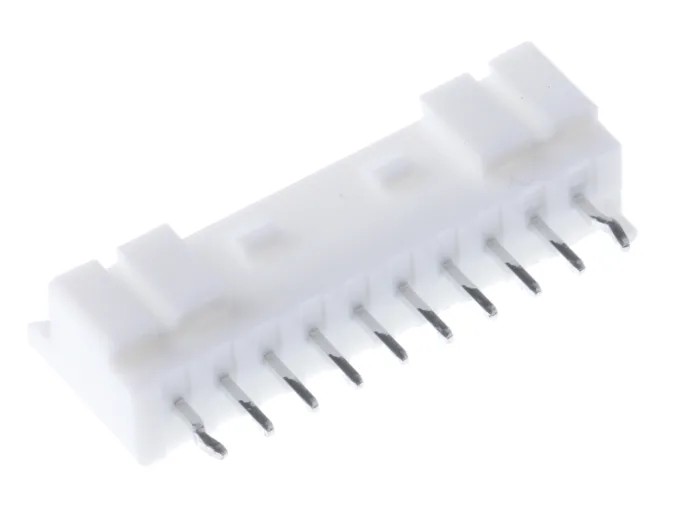

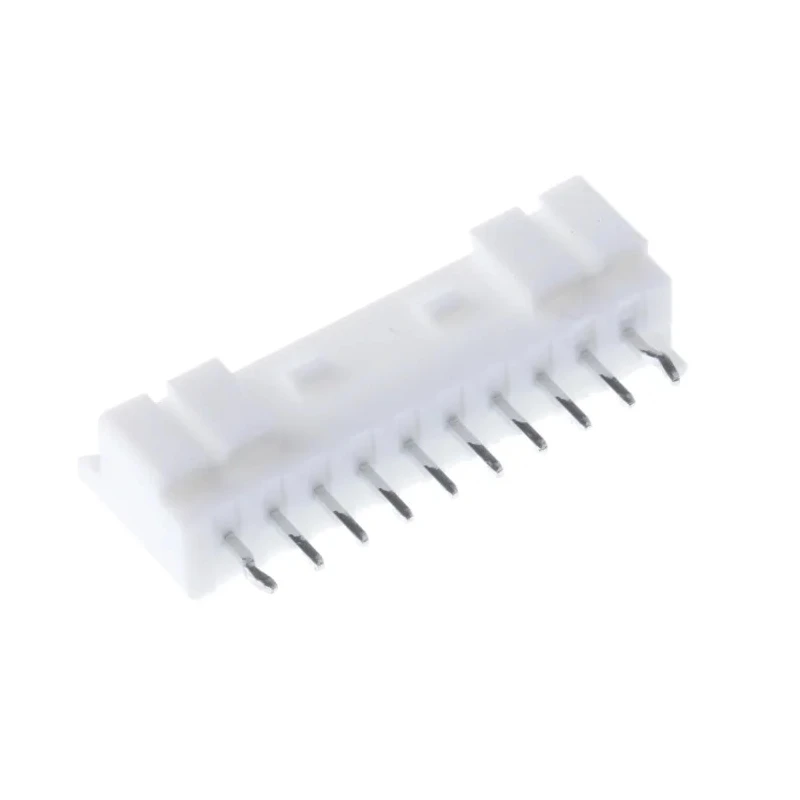

JST PA Series Straight Through Hole PCB Header, 10 Contacts, 2 mm Pitch, 1 Row, Shrouded B10B-PASK-1 (LF) (SN)

The JST B10B-PASK-1 (LF) (SN) is a high-quality PCB Header from the PA Series, engineered for precise and secure wire-to-board connections. It features 10 male contacts in a single row with a 2 mm pitch and a shrouded straight orientation, designed for through-hole mounting. The header’s copper alloy contacts are plated with tin to enhance conductivity and durability, ensuring reliable electrical performance.

Rated at 3 amps current and 250 volts, this connector works efficiently in various electronic circuits with an operating temperature range between -25°C and 85°C, suitable for industrial environments. The 3 mm mating pin length and 2 mm row pitch conform to standard PCB design requirements.

The header includes a thumb depress locking mechanism that prevents accidental disconnection and vibration-related failures, ideal for demanding applications. The shrouded design provides polarization and mechanical protection, facilitating error-free and secure connections during assembly and operation.

Applications include PCB assembly, electronic equipment manufacturing, and other industrial or commercial uses requiring durable and vibration-resistant connections. For compatible housings, see stock number 476-6760 to complete your connector system.

Supports a maximum current rating of 3 amps for reliable electrical performance. Constructed with copper alloy contacts plated in tin for durability and conductivity. Designed for through hole mounting type with a straight orientation and male contact gender.

Operates safely within a temperature range of -25°C to 85°C for versatile environmental applications. Rated for a voltage of up to 250 volts ensuring compatibility with various electronic systems. Features a mating pin length of 3 mm and 2 mm row pitch to fit standard PCB layouts.

Includes a locking device mechanism to prevent accidental disconnections and reduce vibration effects. Shrouded header design offers protection and polarization for easy, secure connector insertion. Ideal for industrial, electronic manufacturing, and PCB assembly applications requiring reliable wire-to-board connections.
