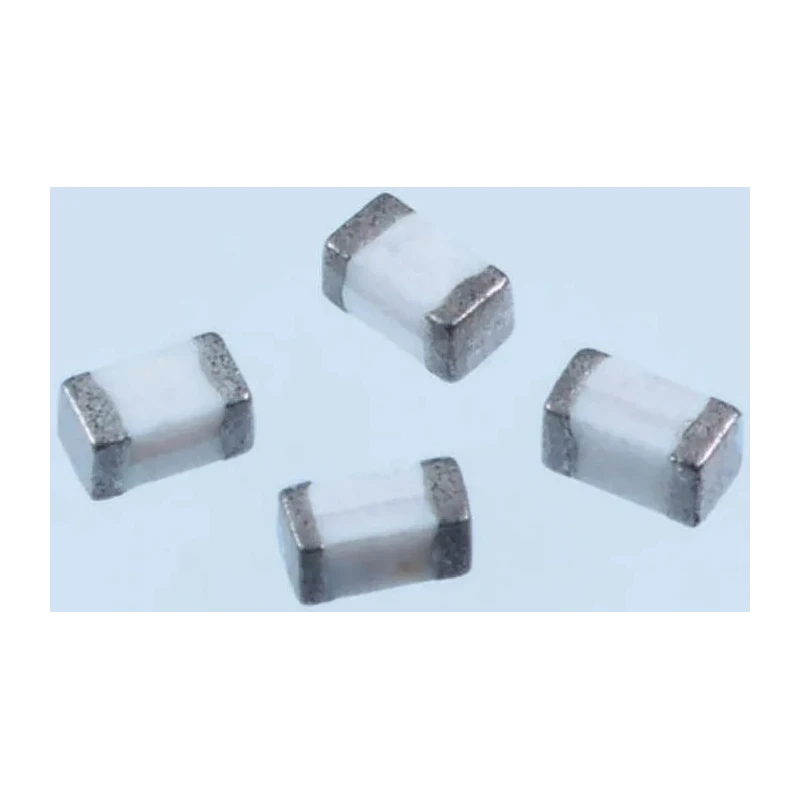

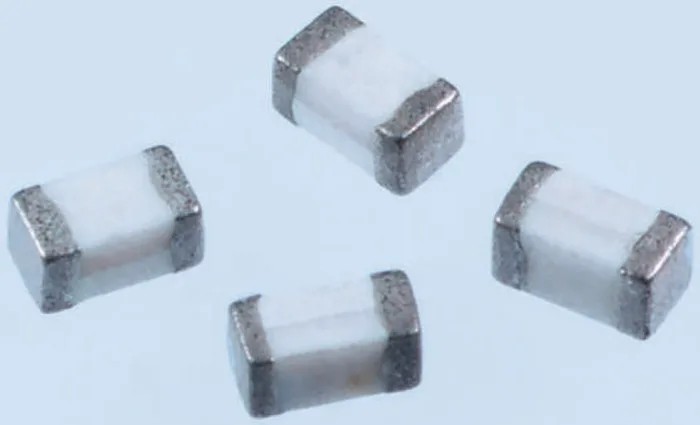

Murata 8.2 nH ±5 % 300 mA Unshielded Wirewound 0402 Surface Mount Inductor LQG15HS8N2J02D

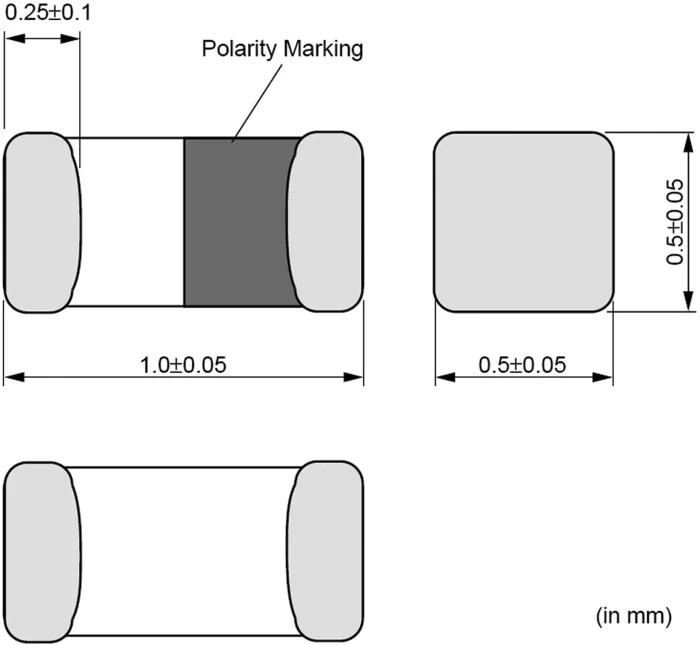

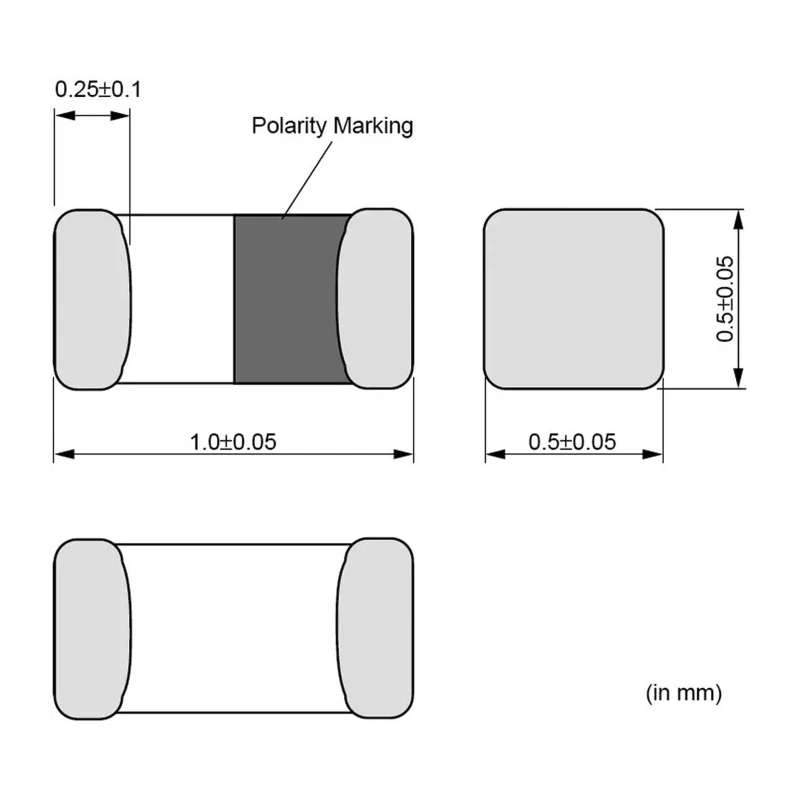

Murata LQG15HS8N2J02D is a high-frequency unshielded wirewound surface mount inductor offering 8.2 nH inductance with a tolerance of ±5 %. Packaged in a 0402 case size measuring 1 mm in length and 0.5 mm in height and depth, this compact component supports applications requiring stable RF performance and low DC resistance of 240 mΩ.

Designed for operation between -55°C and 125°C, this inductor is suitable for demanding electronics in WLAN networks, RF circuit matching, and mobile communication devices. The device supports a maximum DC current of 300 mA and features a minimum quality factor (Q) of 8, ensuring efficiency in high-frequency circuits.

The wirewound construction and moulded design confer mechanical durability and stable characteristics across wide frequency ranges up to a maximum self-resonant frequency of 3.7 GHz. It is terminated by solder pads to facilitate reliable surface mounting on printed circuit boards.

This inductor is supplied in paper tape packaging, suitable for automated pick-and-place manufacturing processes. It is not shielded and does not comply with automotive standards, focusing instead on general electronics applications.

Applications include chokes, RF circuit resonance, WLAN communication equipment, and other industrial and electronic devices that demand consistent inductance and low power losses in miniature format.

Precise inductance of 8.2 nH with ±5 % tolerance ensures consistent circuit performance. Compact 0402 package is suitable for high-density PCB layouts. Rated for continuous DC current up to 300 mA with low DC resistance of 240 mΩ.

Wide operating temperature range from -55°C to 125°C supports harsh environments. Wirewound and moulded construction provides stability and durability. High self-resonant frequency up to 3.7 GHz ideal for RF and mobile communication circuits.

Solder termination for SMT assembly ensures robust PCB mounting. Paper tape packaging compatible with automated assembly lines.
