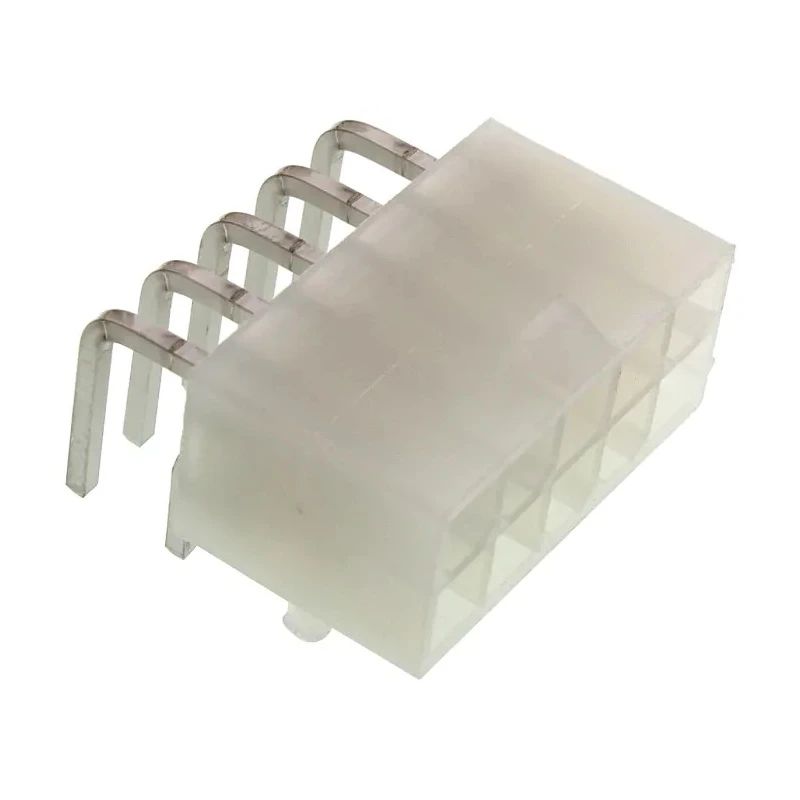

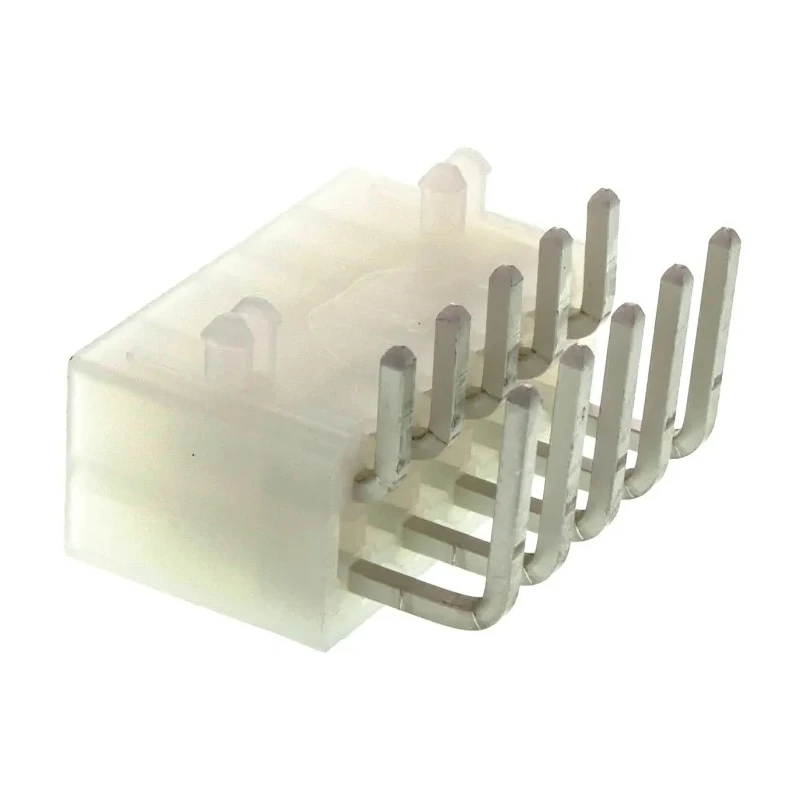

Molex Mini-Fit Jr Series Right Angle Through Hole PCB Header, 10 Contacts, 4.2 mm Pitch, 2 Row, Shrouded 39-30-1100
Specifications
| Country of Origin | Mexico |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 13A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- The header features 10 contacts arranged in 2 rows with 4.2 mm pitch spacing.
- Durable nylon housing material provides long-lasting performance.
- Right angle orientation with through-hole mount type offers stable PCB attachment.
- Rated for 13A current and supports up to 30 mating cycles.
- Brass contacts plated with tin ensure reliable conductivity.
- Operates safely between -40°C and 105°C temperature range.
- Shrouded design ensures secure mating and prevents accidental contact.
- Recommended PCB thickness is 1.78 mm for proper fit.
Product Description
Molex 39-30-1100 Mini-Fit Jr Series Right Angle Through Hole PCB Header is a high-quality connector designed for reliable power connections in electronic applications. Featuring a 10-contact, 2-row arrangement with a 4.2 mm pitch, this right angle header is tailored for through-hole mounting on PCBs, providing secure mechanical attachment and dependable electrical performance.
Constructed with durable PA polyamide nylon 6/6 housing, the header is resilient against mechanical stresses and environmental factors. Brass contacts with tin plating ensure excellent conductivity and resistance to corrosion while supporting a 13A current rating. The header is designed for 30 mating cycles, providing good durability for repeated connect and disconnect operations.
The shrouded design guarantees secure mating with compatible receptacles and offers protection against accidental terminal contact. Operating within a broad temperature range from -40°C to +105°C, it suits various consumer electronics, telecommunications, and machinery environments.
Its 600V voltage rating meets demanding electrical standards, and the recommended PCB thickness of 1.78 mm ensures proper fitment and retention on circuit boards. The connector system is wire-to-board type, optimized for ease of installation and reliable connectivity.
This PCB header is ideal for applications requiring tightly spaced, robust, and safe power connections. Commonly used in consumer electronic devices, telecom equipment, and industrial machinery to support compact and secure wiring.
Designed for through-hole mounting, enhancing mechanical stability on printed circuit boards. The right angle orientation facilitates space-saving layouts and effective cable management.
Overall, the Molex Mini-Fit Jr Series 39-30-1100 PCB Header provides dependable electrical and mechanical performance, suitable for industrial and commercial use. Explore EnvMart's wide selection of PCB Headers and connectors for your electronic component needs.
