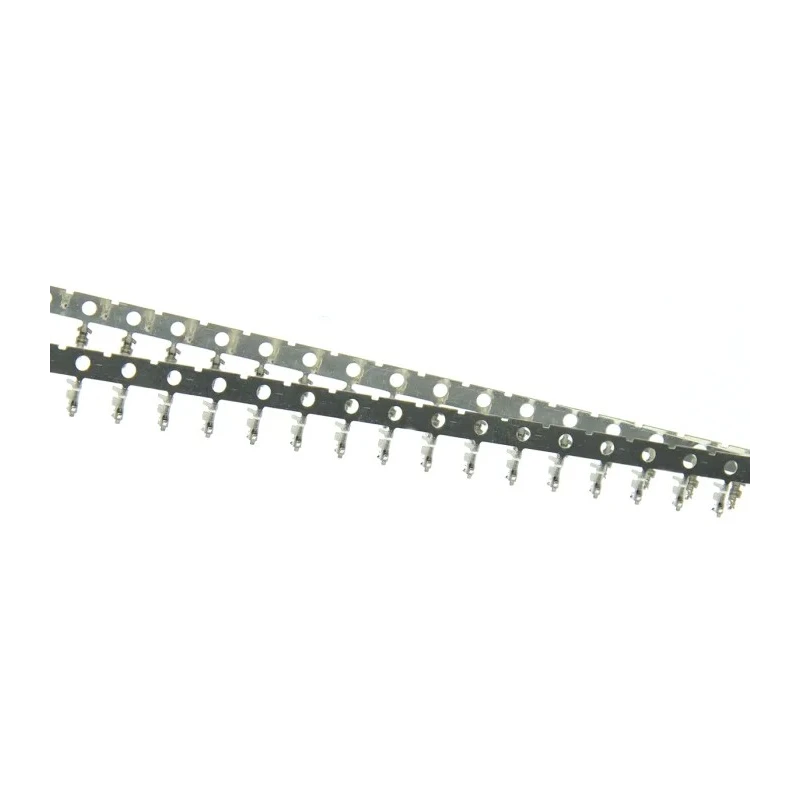

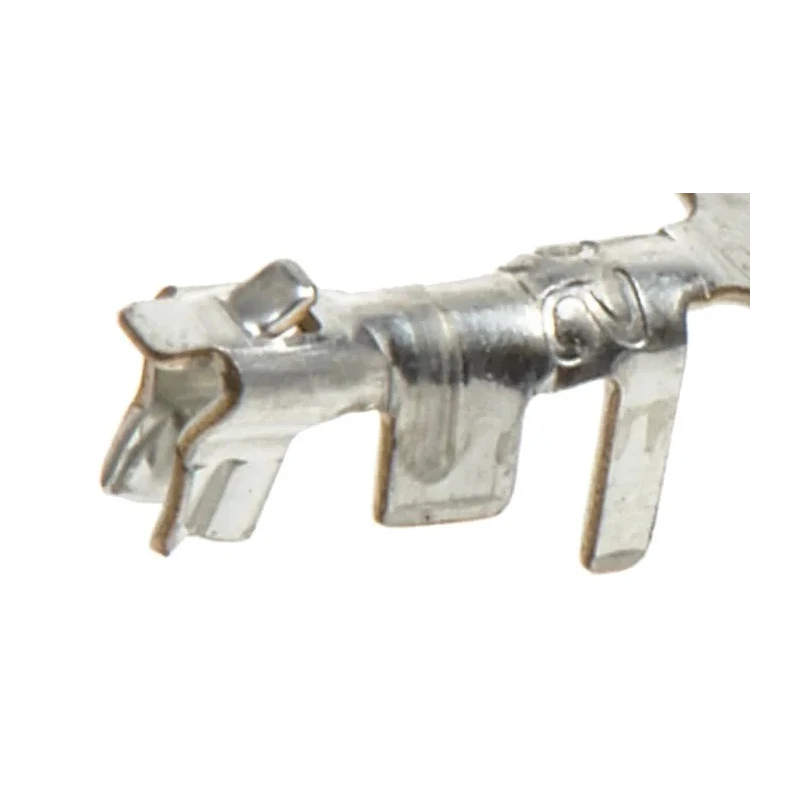

Hirose DF13 Series Female Crimp Terminal, 30 AWG Min Crimp, 26 AWG Max

Free Delivery in India | Lowest Global Shipping Charges

Hirose DF13 Series Female Crimp Terminal, 30 AWG Min Crimp, 26 AWG Max

Name: Hirose DF13 Series Female Crimp Terminal, 30 AWG Min Crimp, 26 AWG Max
Brand: Hirose
SKU: 122339
Price: 0.03 USD
Availability: InStock



Category Crimp Contacts Brand Hirose Condition New

Specifications

Country of Origin	Japan
Brand	Hirose
Current	2.5A
Model	DF13
Gender	Female
Contact Material	Copper Alloy
Series	DF13
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-35°C
For Use With	DF13 Connector Housing
Contact Plating	Tin
Maximum Wire Size mm²	0.12mm²
Minimum Wire Size AWG	30AWG
Maximum Wire Size AWG	26AWG
Maximum Contact Resistance	30mΩ
Hirose DF13 Series Female Crimp Terminal, 30 AWG Min Crimp, 26 AWG MaxBrand	Hirose
Hirose Black Test Lead Wire, 28, 7/0.127 mm, 150mmBrand	Hirose

Key Features

Constructed from copper alloy with tin plating for reliable conductivity.
Rated for a maximum current of 2.5 amps suitable for compact electronic connections.
Features crimp termination ensuring secure and efficient wire attachment.
Operates within a temperature range from -35°C to 85°C for various environments.
Maximum contact resistance is limited to 30 milliohms enhancing signal integrity.
Designed specifically for DF13 series 1.25 mm pitch connector housings.
Manufactured in Japan ensuring quality and precision.
RoHS compliant with no additional standards or approvals applied.

Product Description

Hirose DF13-2630SCF is a female crimp terminal engineered for the DF13 series 1.25 mm pitch connector housings. It supports wire sizes from 30 AWG minimum to 26 AWG maximum, accommodating copper alloy conductor material. The terminal's tin plating ensures consistent electrical contact and corrosion resistance. This crimp contact is rated for a current of 2.5 amperes, ideal for low-power electronic devices and circuit board connections.

Featuring crimp termination style, it offers secure and efficient wiring solutions suitable for electronic components, power connectors, and PCB applications. The crimp terminal operates reliably in temperatures ranging from -35°C to 85°C, making it appropriate for industrial automation, instrumentation, and electronics manufacturing.

The contact resistance is maintained under a maximum threshold of 30 milliohms, providing excellent signal performance in dynamic environments. Originating from Japan, this Hirose terminal adheres to RoHS compliance, though it does not carry additional certifications or approvals.

This product supports integration into the DF13 connector housing system, widely used in telecommunications, consumer electronics, and industrial control systems. These crimp terminals facilitate high-quality electrical connections while minimizing maintenance needs and ensuring durability under typical operating conditions.

Constructed with copper alloy core and tin plating for longevity and conductivity. Rated current capacity of 2.5 amps suitable for compact PCB connectors. Compatible with DF13 series housing connectors with 1.25 mm pitch.

Crimp termination delivers secure wire connections. Temperature operating range between -35°C and 85°C supports industrial uses. Maximum contact resistance of 30 milliohms ensures minimal signal loss. Manufactured in Japan, ensuring high-quality production standards.

Complies with RoHS directive for environmental safety.

This Hirose DF13 Series female crimp terminal is an excellent choice for electronic assembly, laboratory instrumentation, telecommunications equipment, and industrial automation. Explore a wide range of electronic connector products and solutions in EnvMart’s electronics components section for further application needs.
