3M 2500 Series Straight Surface PCB Header, 40 Contacts, 2.54 mm Pitch, 2 Row, Shrouded N2540-6V0C-RB-WG

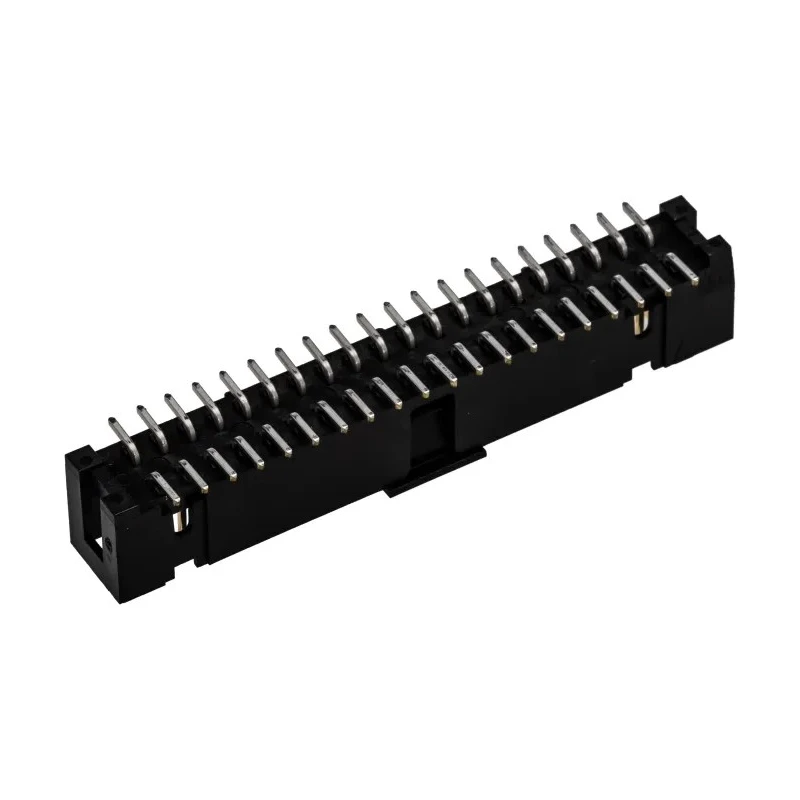

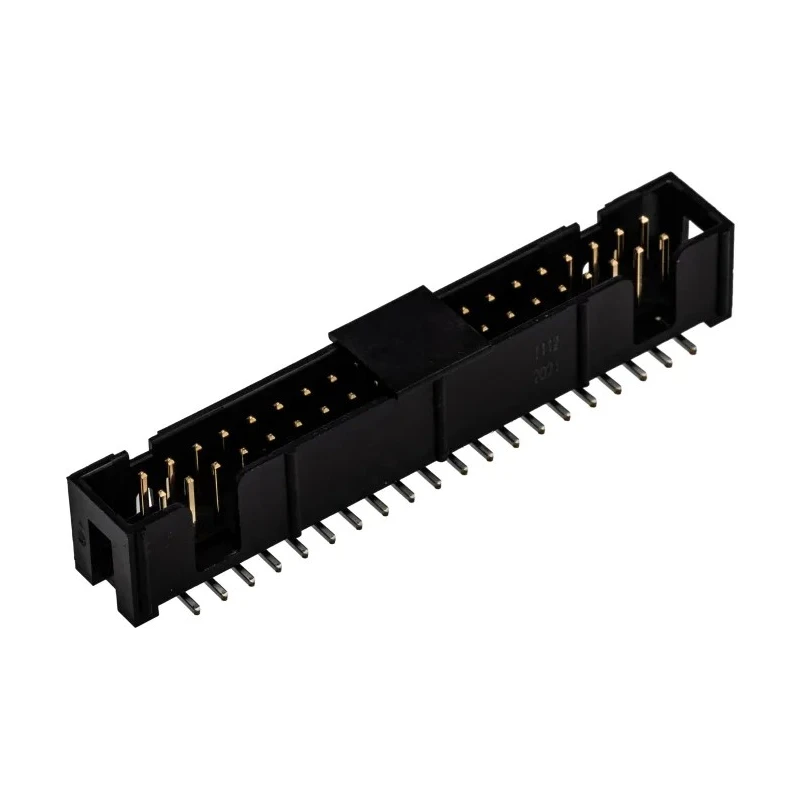

3M's N2540-6V0C-RB-WG is a 2500 Series straight surface PCB header featuring 40 gold-plated copper alloy contacts arranged in two rows with a standard 2.54 mm pitch. The shrouded, male contact configuration ensures secure connections for board-to-board and wire-to-board interfaces. This connector uses a robust glass filled polyester housing that is highly resistant to thermal stress and complies with the JEDEC J-STD-020C standard for high temperature and lead-free soldering processes. It is suitable for current ratings up to 2A and operating voltages up to 1000V, with a temperature range from -55°C to 105°C, making it ideal for demanding electronic environments.

The product features polarized center slot pinning for error-proof mating and is surface mount compatible, facilitating high-volume automated assembly. The connector system design allows clear visibility of contacts after soldering for effective inspection and reduced rework. Packaged as slotted rolls with a high-temp resistant pickup hood, it supports easier handling and processing during manufacturing. Typical applications include industrial automation, instrumentation, medical devices, communications equipment, and consumer electronics where durable and reliable PCB connections are vital.

This 3M PCB Header exemplifies quality and reliability, offering high performance in critical electronic assemblies. Its gold plating ensures excellent conductivity and corrosion resistance, while the glass filled polyester housing reinforces structural integrity. With a country of origin as the United States, it meets stringent quality expectations demanded by global markets.

Features a 2-row configuration with 40 copper alloy contacts plated in gold. Constructed with a glass filled polyester housing for enhanced durability at high temps. Surface mount type designed for quick and secure PCB installation.

Rated for 2A current and 1000V voltage operation withstanding temperatures from -55°C to 105°C. Compliance with high-temperature JEDEC J-STD-020C standards suitable for lead-free soldering processes. Polarized center slot design prevents mis-insertion and speeds up assembly time.

Ideal for use in industrial, instrumentation, medical, communication, and consumer electronics applications. Connector body allows contact visibility for inspection after soldering to ensure quality. Explore the 3M line of electronic connectors and components at EnvMart to source reliable, high-quality parts for industrial, laboratory, and commercial applications.
