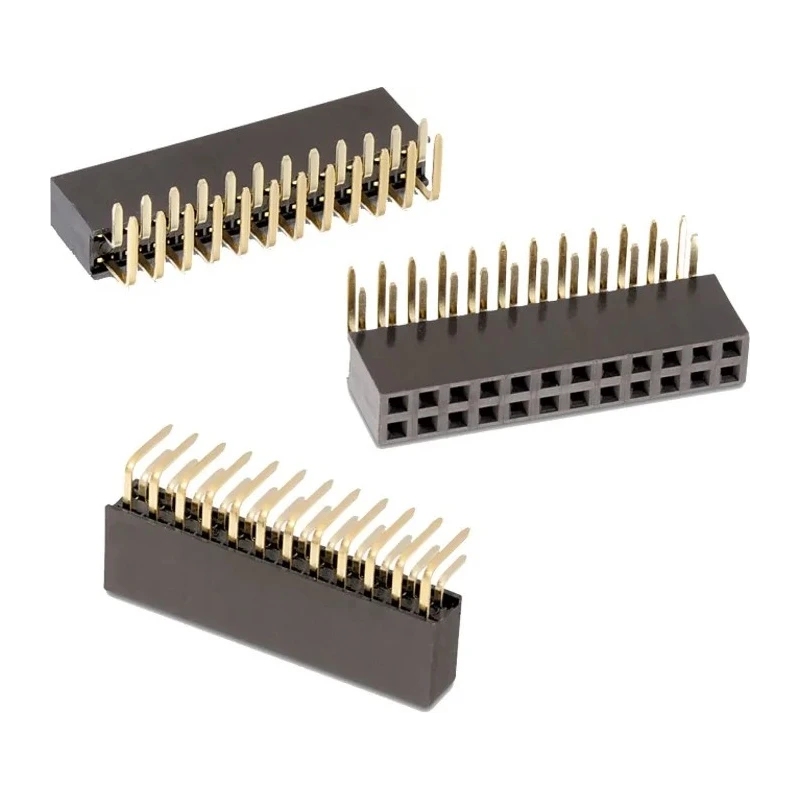

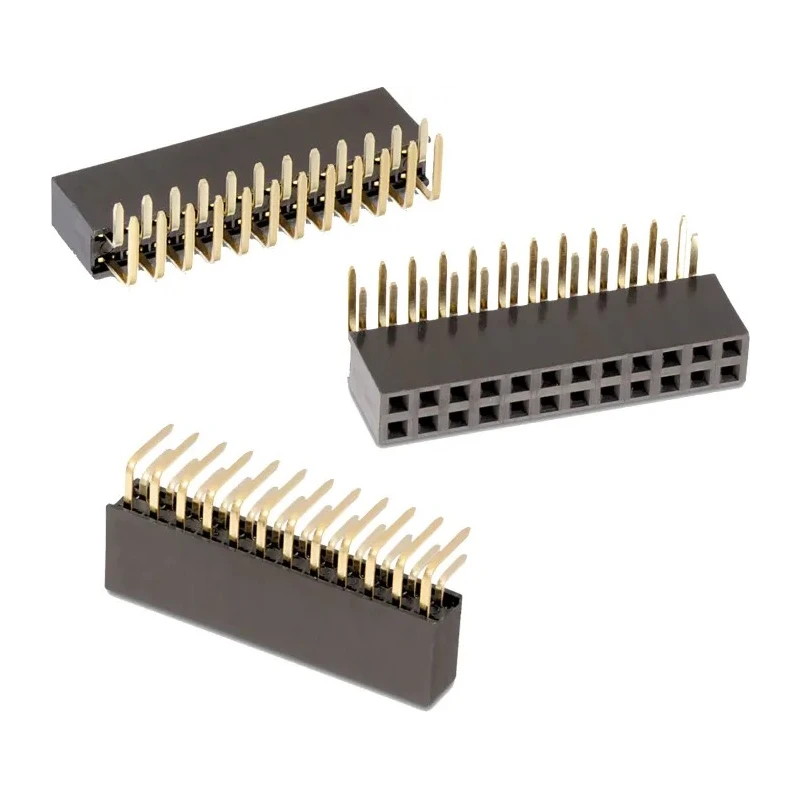

Wurth Elektronik WR-PHD Series Angled Through Hole PCB Socket 24-Contact 2 Row 2.54 mm Pitch 500V 3A 613024243121

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-PHD Series Angled Through Hole PCB Socket 24-Contact 2 Row 2.54 mm Pitch 500V 3A 613024243121

Name: Wurth Elektronik WR-PHD Series Angled Through Hole PCB Socket 24-Contact 2 Row 2.54 mm Pitch 500V 3A 613024243121
Brand: Wurth Elektronik
SKU: 190331
Price: 2.03 USD
Availability: InStock



Category PCB Socket Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Voltage	500V
Brand	Wurth Elektronik
Orientation	Angled
Current	3A
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	WR-PHD
Durability	25mating cycles
Termination Type	Solder
Maximum Operating Temperature	105°C
Sub Type	PCB Socket
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	24
Connector System	Board-to-Board

Key Features

This PCB socket uses a solder termination type for reliable electrical connections.
It features an angled orientation mounted through-hole for board-to-board connectivity.
The contact material is copper alloy with gold plating for durability and corrosion resistance.
The socket is rated for an operating temperature range from -40°C to 105°C.
It offers a durability of 25 mating cycles ensuring long-term usage.
The series WR-PHD ensures compliance with RoHS environmental standards.
UL Approved (E323964) demonstrating product safety and quality.
Insulator is made from PBT material with UL94 V-0 flammability rating for enhanced safety.

Product Description

Wurth Elektronik 613024243121 WR-PHD Series Angled Through Hole PCB Socket is a high-performance PCB connector designed for reliable board-to-board connections in electronic assemblies. It features a dual row configuration with 24 contacts spaced at a 2.54 mm pitch, supporting a current rating of 3A and voltage up to 500V. Its solder termination and angled through-hole mount type facilitates robust mechanical and electrical connections.

Constructed with a copper alloy contact material finished with gold plating, this socket ensures excellent conductivity and corrosion resistance. The insulator uses a PBT material with UL94 V-0 flammability rating that enhances operational safety in harsh environments. Operating temperature ranges between -40°C and 105°C make it suitable for various industrial applications.

The socket offers a durability rated for 25 mating cycles, ensuring long-term reliability in frequent connect-disconnect scenarios. It is compliant with RoHS standards and carries UL approval (E323964), validating its adherence to industry quality and environmental guidelines.

This PCB socket uses a solder termination type for secure connections. Angled orientation and through-hole mount allow easy integration onto printed circuit boards. Copper alloy with gold plating offers durability and superior electrical performance.

Wide operating temperature range supports use in varied industrial and commercial electronics. Durability supports repeated mating cycles without degradation. RoHS compliance ensures environmentally friendly manufacture.

UL Approval certifies quality and safety. PBT insulator with UL94 V-0 flammability rating enhances fire safety.

This Wurth Elektronik PCB Socket is ideal for electronic, industrial, and manufacturing applications requiring secure board-to-board connections. It is widely used in electronic component assemblies, automation systems, and control panels. Discover more high-quality PCB components and connectors with the WR-PHD series for efficient electronic designs at EnvMart.
