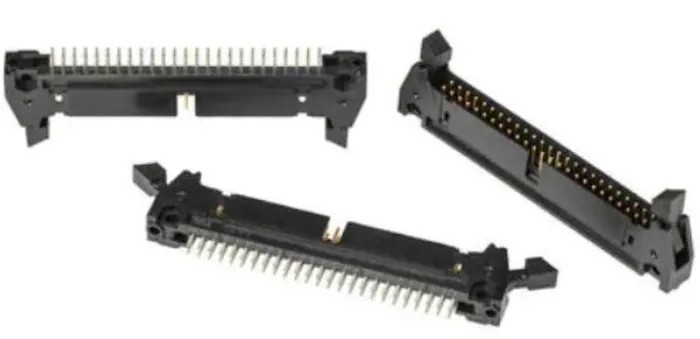

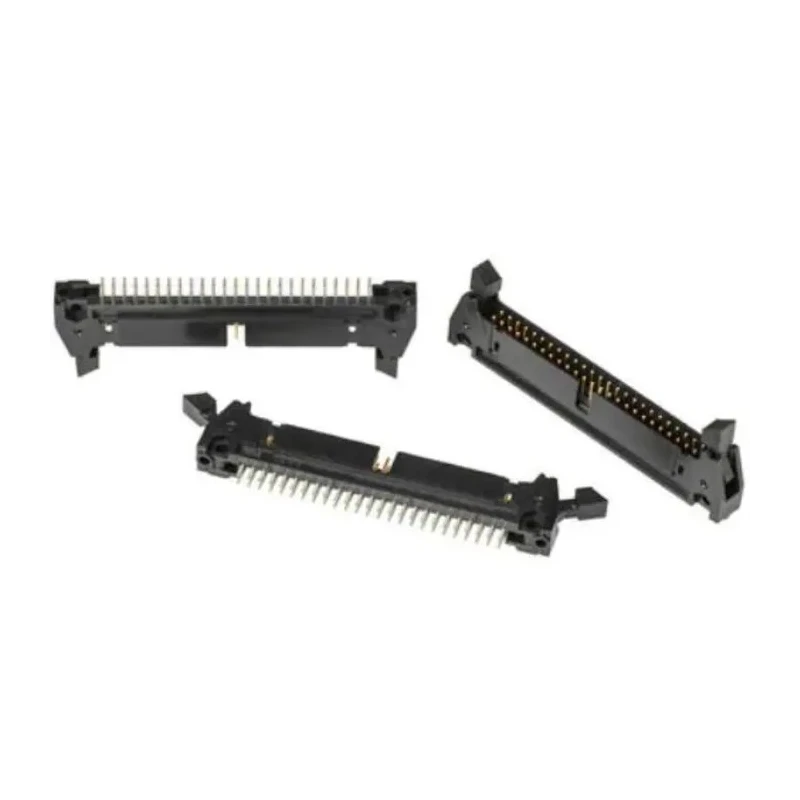

3M 3000 Series Straight Through Hole PCB Header 64 Contact 2.54 mm Pitch 2 Row Shrouded N3764-6302RB

Free Delivery in India | Lowest Global Shipping Charges

3M 3000 Series Straight Through Hole PCB Header 64 Contact 2.54 mm Pitch 2 Row Shrouded N3764-6302RB



Category PCB Header Brand 3M Condition New

Specifications

Country of Origin	United States
Voltage	25V
Brand	3M
Orientation	Straight
Current	2.0
Model	N3764-6302RB
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	3000
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	64
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	0.01in
Mating Pin Length	6.2mm
Connector,PCB,multipole,header,solder,straight,long,64way,HE10Brand	3M

Key Features

The header is fully shrouded to protect contacts from damage.
It includes 64 gold-plated copper alloy contacts arranged in 2 rows.
The 2.54 mm pitch and mounting holes facilitate secure PCB connection.
Designed for board-to-board and wire-to-board connector systems.
Supports operating temperatures from -55°C to 105°C.
Features a latch-and-eject mechanism for secure and easy mating/removal.
Complies with UL 94V-0 flammability standards.
Provides centre bump polarization to prevent incorrect mating.

Product Description

3M N3764-6302RB 3000 Series Straight Through Hole PCB Header is designed with 64 gold-plated copper alloy contacts configured in two rows with a 2.54 mm pitch. This shrouded header protects the contacts from physical damage and enhances reliable connectivity in harsh environments.

The header is rated for an electrical current of 2.0 amps and a voltage of 25V, suitable for board-to-board and wire-to-board applications. It supports operation across a wide temperature range from -55°C to 105°C, making it well suited for industrial automation and electrical engineering use cases.

The unit includes a latch-and-eject feature that secures connections while allowing easy disconnection for maintenance. The centre bump polarization ensures that incorrect mating is prevented, increasing reliability and preventing damage during assembly.

This 3M PCB header meets UL 94V-0 flammability standards and features corrosion-resistant copper alloy contacts with gold plating for durability and compatibility with humid environments. The PCB Header is provided with predrilled mounting holes to ensure a secure fit on printed circuit boards.

Applications span electronics development, industrial automation, electrical engineering, and other electronics manufacturing sectors. The connector is made in the United States, emphasizing quality manufacturing standards and materials.

The header is fully shrouded to protect contacts from damage. Features 64 gold-plated copper alloy contacts arranged in two rows with 2.54 mm pitch. Supports board-to-board and wire-to-board connector systems with through-hole mounting.

Rated for current at 2.0 amps and voltage of 25V. Operates reliably within a temperature range of -55°C to 105°C. Includes a latch-and-eject system for secure engagement and easy removal. Meets UL 94V-0 flammability standards and exhibits resistance to corrosion.

Centre bump polarization prevents incorrect mating. Manufactured in the United States for ensured quality standards.
