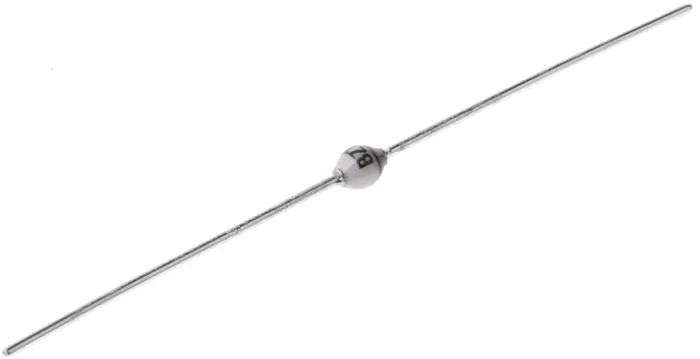

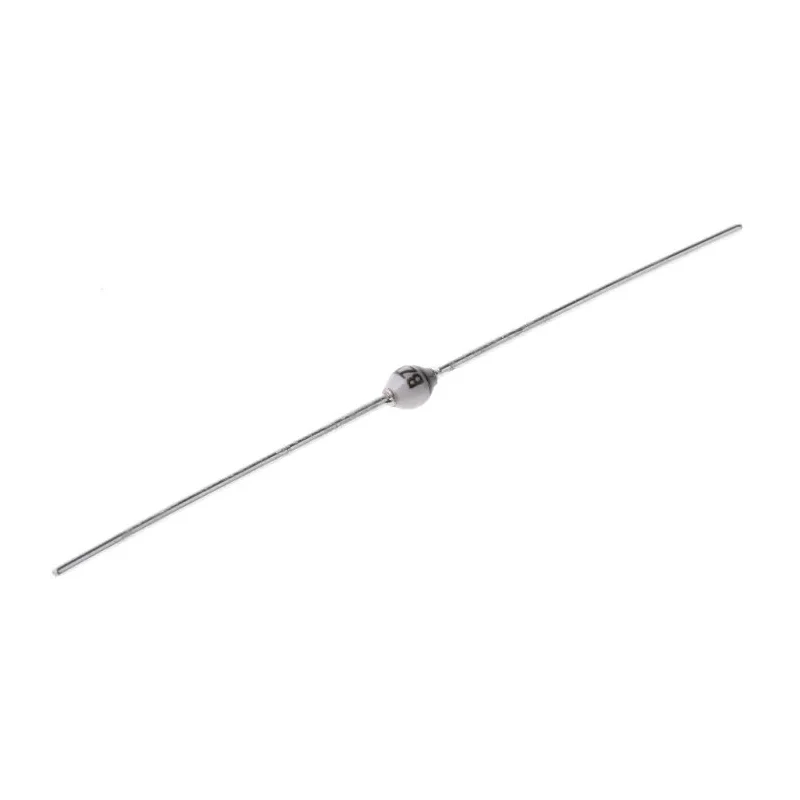

Vishay 1.3W 15V Voltage Regulator Zener Diode Single Through Hole 2-Pin SOD-57 BZT03C15-TAP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 3.6mm |
| Length | 4mm |
| Model | BZT03C15-TAP |
| Mount Type | Through Hole |
| Series | BZT03 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-57 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 1.3W |
| Diode Configuration | Single |
| Test Current It | 50mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 15V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 10Ω |
Key Features
- Designed for voltage regulation applications with a nominal zener voltage of 15V.
- Single diode configuration with two pins in SOD-57 through-hole form factor.
- Maximum power dissipation of 1.3 watts ensuring reliable operation under load.
- Test current fixed at 50 mA with a zener impedance of 10 ohms for stable voltage regulation.
- Wide operating temperature range from -65°C up to 175°C for versatile industrial use.
- Low reverse leakage current of 1 microampere for high efficiency and low losses.
- Zener voltage tolerance of ±6% ensuring precise voltage regulation.
- Not compliant with automotive standards, intended for general electronics and industrial semiconductor applications.
Product Description
Vishay BZT03C15-TAP is a high-quality 15V Zener diode designed as a voltage regulator for robust industrial and electronic applications. This single diode features a 1.3-watt power dissipation rating enabling it to regulate voltage efficiently in circuits requiring stable 15V output.
The diode is housed in a through-hole SOD-57 package with 2 pins, facilitating easy mounting on printed circuit boards. Its nominal zener voltage of 15V, combined with a ±6% voltage tolerance, ensures consistent voltage regulation performance.
Operating parameters include a test current of 50 mA, a maximum zener impedance of 10 ohms, and a minimal reverse leakage current of 1 microampere, all of which contribute to reliable and efficient semiconductor function.
Vishay’s diode offers a broad temperature range from -65°C to 175°C to withstand harsh environments in industrial, power supply, and electronic equipment applications. Its compact dimensions of 3.6 mm in height and 4 mm in length support integration into tight spaces.
This diode is part of the BZT03 series and is primarily used for voltage regulation in power and electronic circuits, making it suitable for industrial, laboratory, manufacturing, and commercial electronics applications.
Designed for voltage regulation with 15V nominal zener voltage. Single element in a through-hole SOD-57 package. Supports a maximum power dissipation of 1.3 watts. Test current of 50 mA with low zener impedance. Wide operating temperature from -65°C to 175°C.
Minimal reverse leakage current of 1µA for efficiency. Compact size with 3.6mm height and 4mm length. Not suited for automotive standard compliance. Explore more Vishay semiconductor products and power components at EnvMart for your industrial and electronic development requirements.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal zener voltage of this diode is 15V, designed specifically for voltage regulation applications.
This model supports a maximum power dissipation of 1.3 watts, which ensures reliable operation under load conditions.
The diode operates within a wide temperature range from -65°C to 175°C, making it suitable for various industrial applications.
The test current for this voltage regulator is fixed at 50 mA, which is essential for its stable voltage regulation performance.
The maximum zener impedance of this model is 10 ohms, contributing to its efficiency in voltage regulation.
This diode features a two-pin configuration, facilitating its integration into circuits.
The maximum reverse leakage current is 1 microampere, which enhances its efficiency and reduces losses.
The diode is housed in a SOD-57 package type, designed for through-hole mounting on printed circuit boards.
This model has a height of 3.6 mm and a length of 4 mm, making it compact for various applications.
It is primarily used for voltage regulation in power and electronic circuits, suitable for industrial, laboratory, and commercial electronics applications.
No, this diode is not compliant with automotive standards and is intended for general electronics and industrial semiconductor applications.
This model belongs to the BZT03 series of zener diodes, known for their voltage regulation capabilities.
