Phoenix Contact PTFIX Series Distribution Block 19-Way 41A 500V Grey 3273374

Free Delivery in India | Lowest Global Shipping Charges

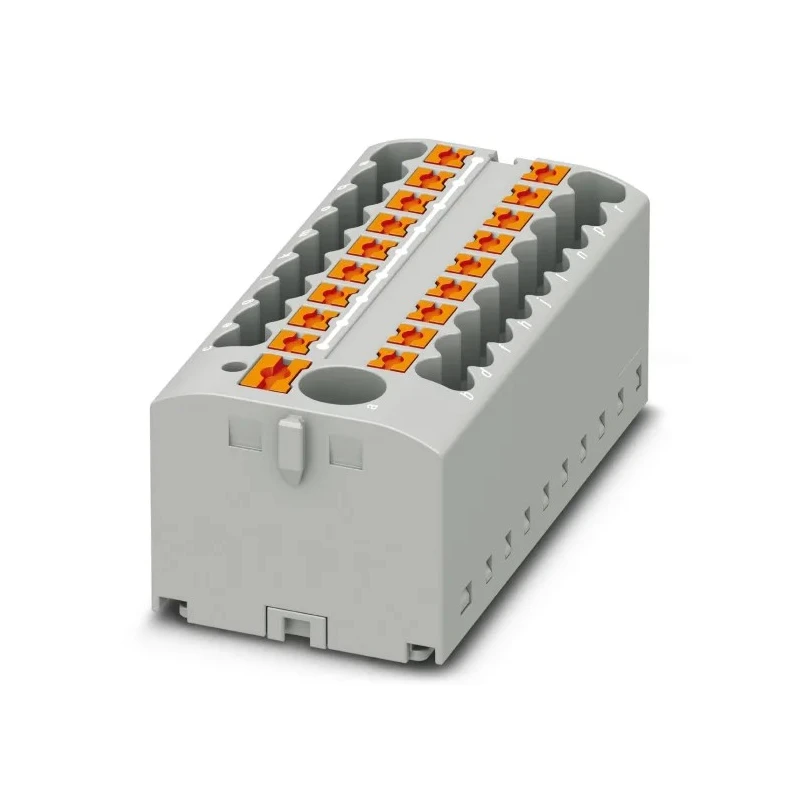

Phoenix Contact PTFIX Series Distribution Block 19-Way 41A 500V Grey 3273374

Name: Phoenix Contact PTFIX Series Distribution Block 19-Way 41A 500V Grey 3273374
Brand: PHOENIX CONTACT
SKU: 145102
Price: 137.26 USD
Availability: InStock



Category Distribution Blocks Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Poland
Voltage	500V
Brand	Phoenix Contact
Colour	Grey
Current	41A
Model	3273374
Number Of Ways	19
Series	PTFIX
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-60°C
Standards/Approvals	CSA
Number of Terminal points	6, 12 and 18

Key Features

Features push-in direct connection technology for easy conductor insertion without tools.
Supports cable cross-sectional areas from 0.14 to 4 mm² and wire sizes 26 to 12 AWG.
Constructed with durable grey polyamide housing providing electric shock protection.
Compact design suitable for transverse DIN rail mounting to save panel space.
Expandable output via standard plug-in bridges for increased versatility.
CSA approved meeting recognized safety standards.
Operates efficiently in temperatures ranging from -60°C to 105°C.
Ideal for industrial power distribution and control panel applications.

Product Description

Phoenix Contact 3273374 PTFIX Series Distribution Block is a high-quality 19-way distribution block rated at 41 amperes and 500 volts. It is constructed with a grey polyamide housing offering excellent insulation and protection against electric shocks, making it suitable for demanding industrial electrical distribution systems.

The push-in direct connection technology incorporated into this block allows for simple and secure connection of both solid and stranded conductors without special tools, facilitating quick installation and maintenance. It supports cable cross-sectional areas between 0.14 mm² and 4 mm² and wire sizes from 26 to 12 AWG, providing flexibility for various wiring requirements.

The distribution block is designed for transverse mounting on DIN rails, helping to save space in compact electrical setups. It is also expandable using standard plug-in bridges, allowing users to increase the number of outputs as needed.

Rated for continuous operation in temperatures from -60°C to 105°C, this product is suited for use in harsh environments. The block carries CSA certification, ensuring compliance with safety standards for electrical components.

Typical applications include industrial power distribution, control panels, and other scenarios requiring efficient, safe power distribution with multiple outputs. Push-in connection technology for tool-free conductor insertion.

Voltage rating of 500 V and current rating of 41 A at 6 mm². Supports cable sizes from 0.14 to 4 mm²; wire gauge 26 to 12 AWG. Polyamide (PA) insulating housing in grey color. Transverse DIN rail mounting capability. Expandable with standard plug-in bridges.

Operating temperature range of -60°C to 105°C. CSA certified for safety compliance. 19-way distribution providing multiple output connections. Explore more from the Phoenix Contact range and other power distribution components at EnvMart for industrial and commercial electrical systems.
