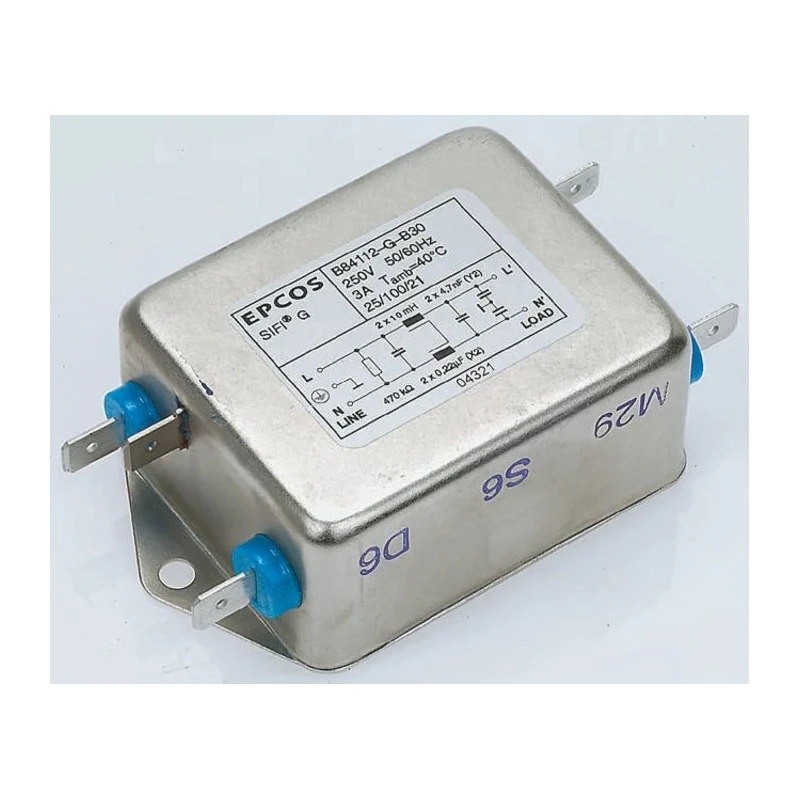

TDK Chassis Mount RFI Filter 3 A 250V AC/DC 60Hz Screw Termination 1 Phase B84112G0000B030

Free Delivery in India | Lowest Global Shipping Charges

TDK Chassis Mount RFI Filter 3 A 250V AC/DC 60Hz Screw Termination 1 Phase B84112G0000B030



Category Power Line Filters Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	29mm
Length	89.5mm
Model	B84112G0000B030
Depth	52mm
Mount Type	Chassis Mount
Operating Frequency	60Hz
Series	B84112G
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	47pF
Minimum Operating Temperature	-25°C
Maximum Current	3A
Number of Phases	1
Leakage Current	369μA
Maximum Voltage	250V ac/dc
Inductance	2mH
Standards/Approvals	UL1283
Termination Style	Screw
TDK, B84113C 3 A 250V ac 50Hz, 60 Hz, Chassis Mount EMC Filter, Tab 1 PhaseBrand	TDK

Key Features

Compact design with a metal case for durability.
Operating frequency of 60 Hz suitable for industrial electronics.
Constructed with 2 line filters for enhanced insertion loss.
Capacitance of 47 pF and inductance of 2 mH for effective noise suppression.
Temperature operating range from -25°C to 100°C for versatile applications.
Leakage current rated at 369μA ensuring low power loss.
Complies with UL1283 standard for EMI filters.
Ideal for switch-mode power supplies, telecom, data systems, medical equipment, and DC applications.

Product Description

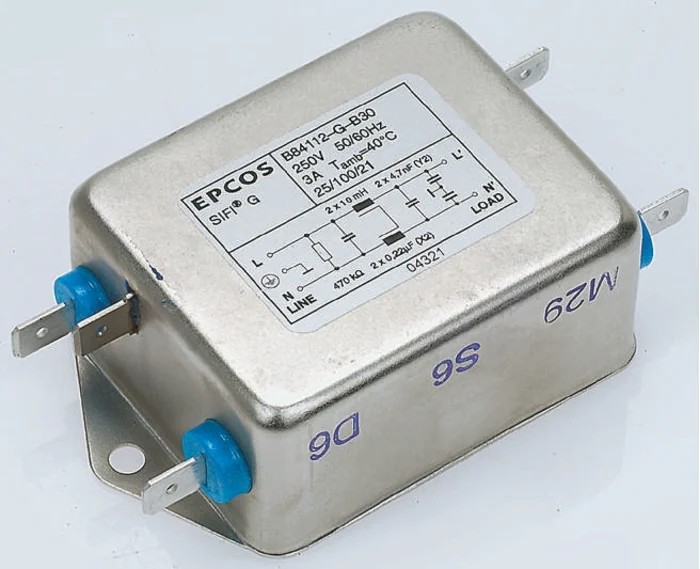

TDK B84112G0000B030 chassis mount RFI filter is designed for single-phase power line noise suppression in industrial and commercial applications. It supports a maximum current of 3 A and withstands voltages up to 250 V AC/DC operating at 60 Hz, making it suitable for a wide range of EMI filtering needs.

The compact metal case houses two line filters which provide enhanced insertion loss, making installation straightforward and efficient in various electronic equipment such as switch-mode power supplies, telecom systems, data communication devices, and certain medical equipment models.

This filter exhibits a capacitance of 47 pF and inductance of 2 mH, providing effective suppression of electromagnetic interference. It operates reliably within a temperature range from -25°C to 100°C, ensuring durability under fluctuating environmental conditions. The leakage current is low at 369 μA, minimizing energy loss during operation.

Physical dimensions are 89.5 mm length, 52 mm depth, and 29 mm height, making it a compact solution that can be easily integrated into chassis mount configurations with screw type terminal termination for secure connections.

Compact metal housing for durability and protection. High insertion loss with SIFI-G construction. Rated for 3 A current and 250 V AC/DC voltage. Effective capacitance and inductance values for noise filtering. Wide temperature operation range from -25°C to 100°C.

Low leakage current ensuring energy efficiency. UL1283 approval for industrial EMI filter compliance. Simple chassis mount installation with screw terminals. Applications include industrial electronics, telecom, data systems, switch-mode power supplies, and medical equipment.

This TDK RFI filter is a reliable component for industrial EMI noise suppression, ensuring improved performance and protection of sensitive electronic equipment. Explore more TDK filter components on EnvMart for your industrial and commercial needs.
