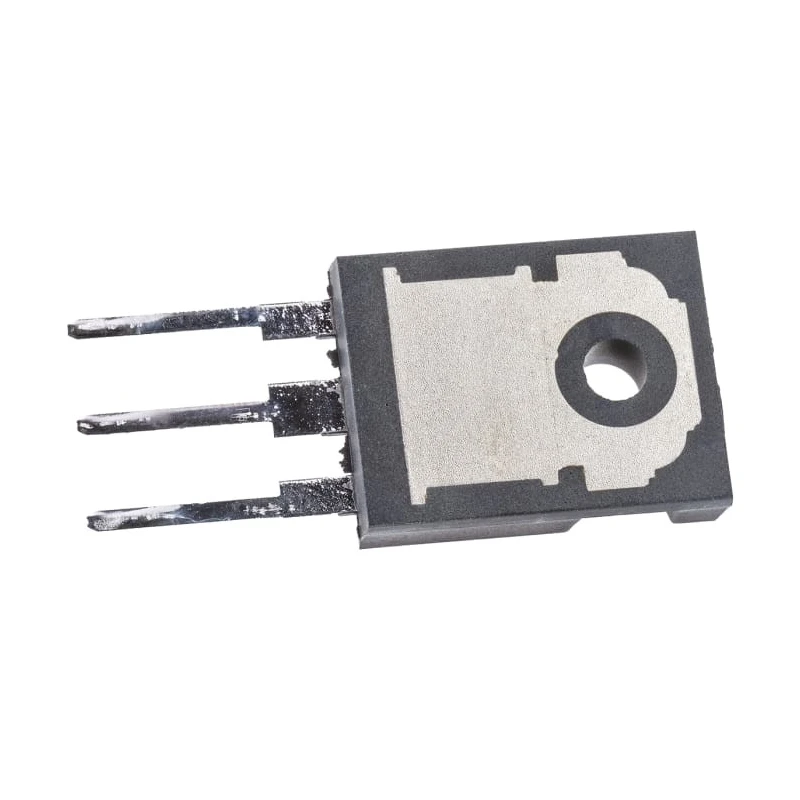

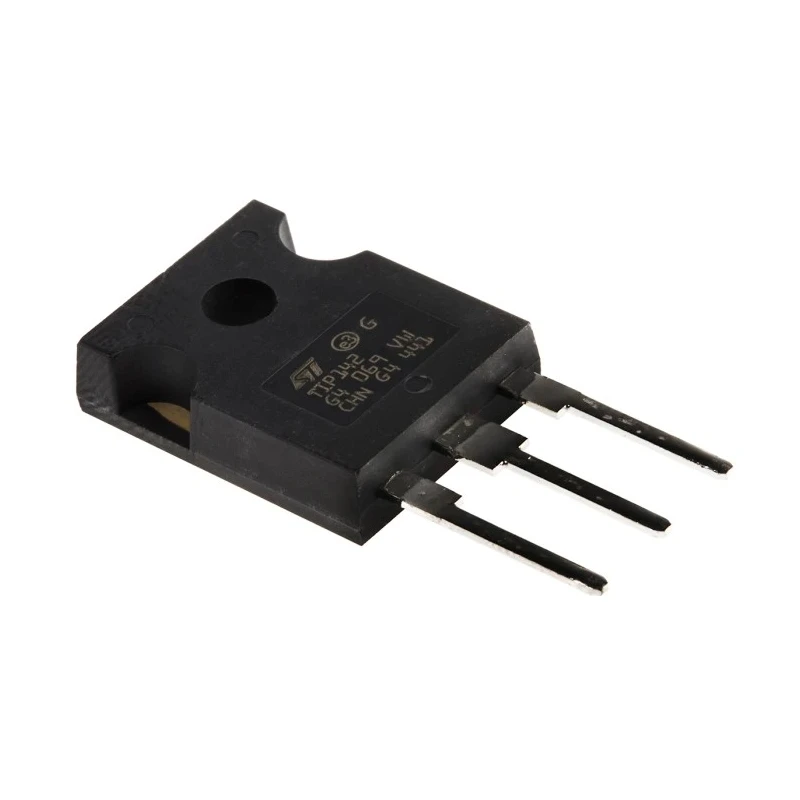

STMicroelectronics Darlington Transistor NPN 10 A 100 V 3-Pin TO-247 TIP142

STMicroelectronics TIP142 is a high-performance NPN Darlington Transistor designed for power amplification and switching applications. Featuring a 3-pin TO-247 package for easy through-hole mounting, this transistor supports a maximum continuous collector current of 10 amperes and maximum collector-emitter voltage of 100 volts. Its high current gain (hFE) of 500 enables efficient signal amplification.

The device can dissipate up to 125 watts of power, making it suitable for demanding electronic circuits requiring reliable operation under heavy loads. With an operating temperature range from -65°C to 150°C, the TIP142 is capable of functioning effectively across various industrial and commercial environments.

The transistor features a maximum collector cutoff current of 1 mA and a collector-emitter saturation voltage up to 2 volts, ensuring low power loss during switching. Its emitter-base voltage rating is capped at 5 volts to protect internal junction integrity. This product is ideal for electronic assemblies requiring robust bipolar transistors with high gain and power handling capabilities.

STMicroelectronics provides a broad range of bipolar transistors including general purpose, Darlington, power, and high-voltage devices in both surface mount and through-hole packages, with the TIP142 being part of their reliable Darlington Transistor series.

Maximum continuous collector current of 10 amperes. Collector-emitter voltage rating up to 100 volts. Minimum DC current gain (hFE) of 500 ensuring high amplification. Power dissipation capability of 125 watts for robust operation.

Operating temperature range from -65°C to 150°C for wide environmental tolerance. 3-pin TO-247 package suitable for through-hole mounting applications. NPN transistor configured as a single Darlington pair element. Maximum collector cutoff current of 1 mA supporting low leakage.

Maximum collector-emitter saturation voltage of 2 V under load. Emitter-base voltage rating of 5 volts maximum.

This transistor is commonly used in industrial electronics, power supplies, motor drivers, amplification circuits, and switching applications. It offers high reliability and performance for engineers and manufacturers designing robust electronic systems.

Explore a wide selection of STMicroelectronics semiconductor products and components at EnvMart for your electronic designs and industrial applications.
