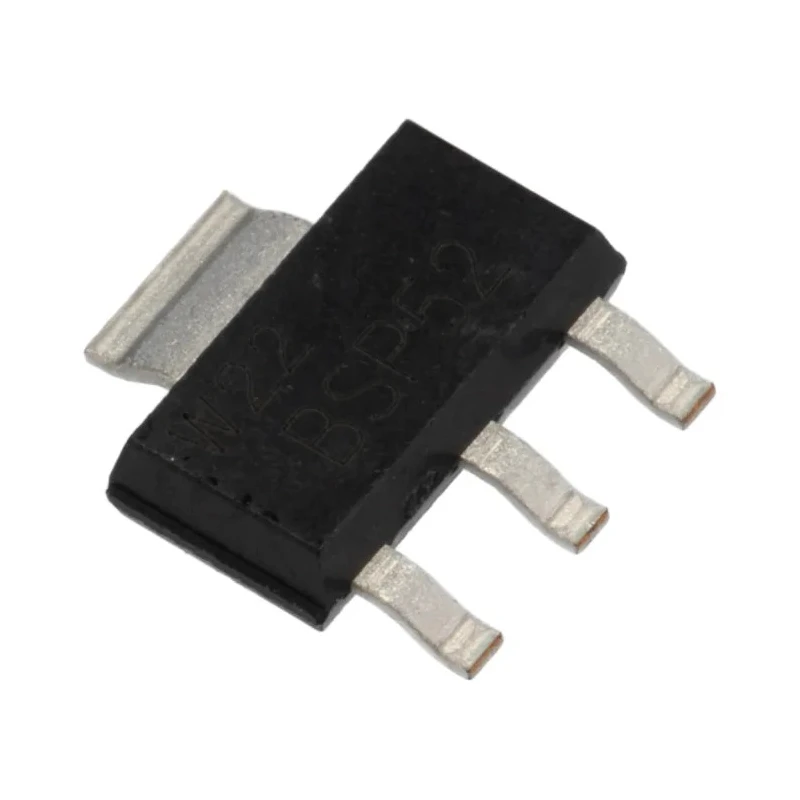

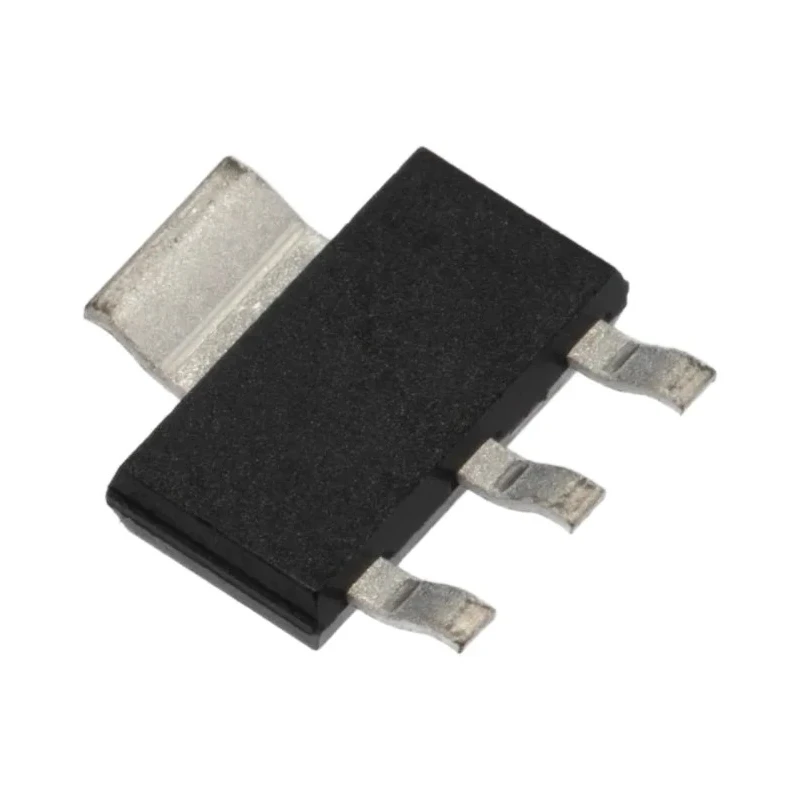

Nexperia Darlington Transistor NPN 1A 80V HFE 1000, 4-Pin SOT-223 BSP52,115
Specifications
| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.7mm |
| Length | 6.7mm |
| Model | BSP52,115 |
| Mount Type | Surface |
| Series | BSP52 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-223 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 4 |
| Maximum Continuous Collector Current Ic | 1A |
| Maximum Collector Emitter Voltage Vceo | 80V |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain hFE | 1000 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.3V |
| Maximum Collector Base Voltage VCBO | 90V |
| Maximum Collector Cut-off Current | 0.00005mA |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1.25W |
| onsemi 1 Darlington Transistor NPN, 1 A 80 V HFE | 1000, 4-Pin SOT-223Brand: onsemi |
| Nexperia 1 Darlington Transistor NPN, 1 A 80 V HFE | 1000, 4-Pin SOT-223 |
Key Features
- Supports a minimum DC current gain (hFE) of 1000.
- Available in a 4-pin SOT-223 surface mount package.
- Maximum emitter-base voltage is 5V, ensuring stable operation.
- Designed for operation in temperatures from -65°C to 150°C.
- Maximum power dissipation of 1.25W allows for efficient thermal management.
- Transistor polarity is NPN, suitable for common switching applications.
- Features a maximum collector base voltage of 90V and maximum collector-emitter saturation voltage of 1.3V.
- Compact dimensions of 6.7mm length and 1.7mm height enable space-saving PCB layout.
Product Description
Nexperia BSP52,115 Darlington Transistor NPN offers robust performance for electronic applications requiring high gain and switching capabilities. It supports a maximum continuous collector current of 1A and a maximum collector-emitter voltage of 80V, making it suitable for many power amplification tasks.
This transistor has a minimum DC current gain (hFE) of 1000, providing high amplification efficiency. Housed in a 4-pin SOT-223 surface mount package, it ensures easy integration into modern PCB designs with compact footprints.
The device operates stably within a broad temperature range from -65°C to 150°C, suitable for industrial, automotive, and consumer electronics. The maximum power dissipation rating of 1.25W supports prolonged use without overheating when appropriately heat-sinked.
Additional features include maximum emitter-base voltage of 5V, maximum collector-base voltage of 90V, and maximum collector-emitter saturation voltage of 1.3V, all contributing to reliable transistor switching and amplification operations.
With dimensions of 6.7mm length and 1.7mm height, this device suits space-constrained design environments. The transistor meets the rigorous AEC-Q101 automotive standard, assuring its reliability in automotive electronic circuits.
Supports minimum DC current gain (hFE) of 1000. 4-pin SOT-223 surface mount package. Maximum continuous collector current of 1A. Broad operating temperature from -65°C to 150°C. Maximum power dissipation of 1.25W. Compliant with AEC-Q101 automotive standard.
Compact physical size for efficient PCB layout. Suitable for industrial, automotive, and consumer electronic applications.
Originating from China, the Nexperia BSP52,115 Darlington Transistor is a reliable component choice for power electronics and amplification projects. This product fits within the Electronics & Electricals > Semiconductor > Darlington Transistor category on EnvMart, making it easy to find for design and procurement professionals.
Explore more high-quality semiconductor components and accessories in EnvMart for your industrial and commercial electronic needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 1A.
This transistor operates within a temperature range of -65°C to 150°C.
The minimum DC current gain (hFE) is 1000, providing high amplification efficiency.
It is housed in a 4-pin SOT-223 surface mount package, suitable for compact PCB designs.
The maximum collector-emitter voltage (Vceo) is 80V.
The maximum power dissipation is rated at 1.25W, allowing for efficient thermal management.
The maximum collector-base voltage (VCBO) is 90V.
The transistor has a height of 1.7mm and a length of 6.7mm.
It complies with the AEC-Q101 automotive standard, ensuring reliability in automotive applications.
The maximum emitter-base voltage (VEBO) is 5V.
This model is an NPN Darlington transistor, suitable for common switching applications.
This transistor features a 4-pin configuration.
