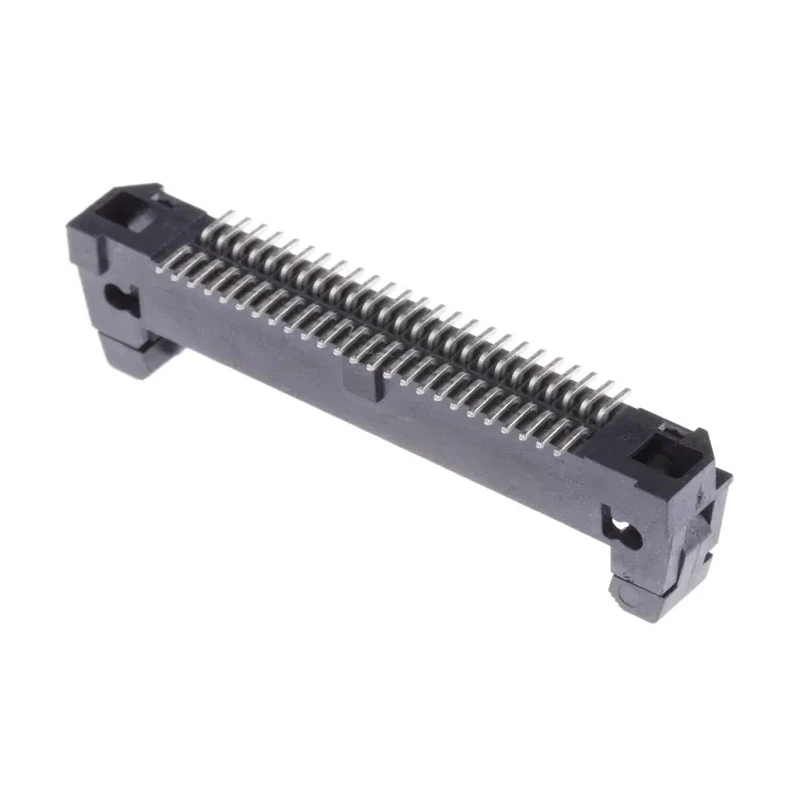

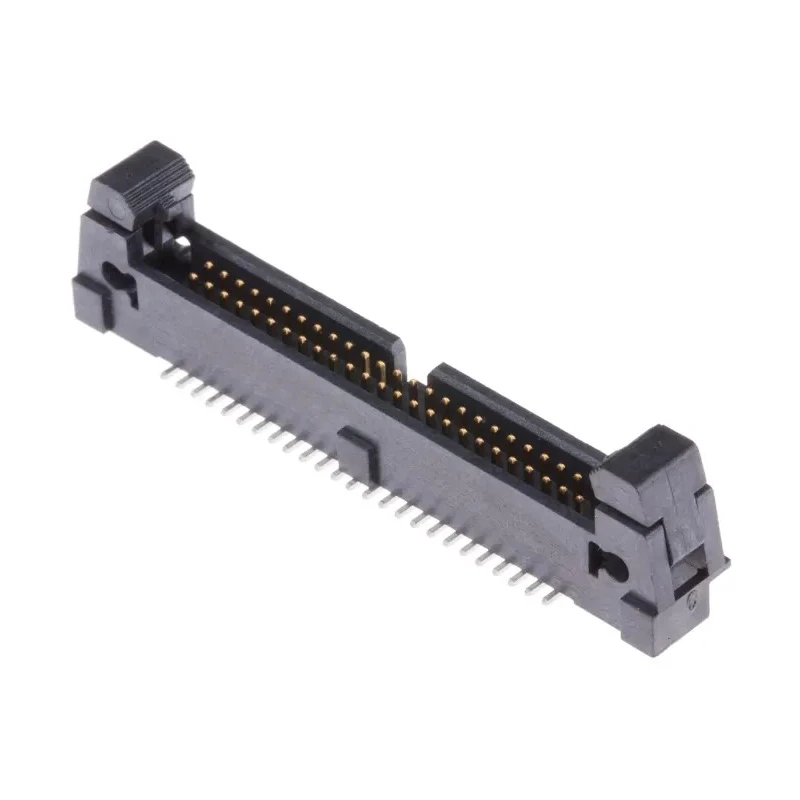

Samtec EHF Series Straight Surface PCB Header 50 Contacts 1.27 mm Pitch 2 Row Shrouded EHF-125-01-L-D-SM

Samtec EHF-125-01-L-D-SM is a high-quality, straight surface mount PCB header from the EHF series, featuring 50 contacts with a precise 1.27 mm pitch arranged in 2 rows. This shrouded connector is designed for wire-to-board applications where secure connection and durability are critical.

The header housing is made from Liquid Crystal Polymer, offering excellent mechanical strength and temperature resistance suitable for industrial electronic components. The contacts are crafted from Phosphor Bronze and plated with gold to provide low electrical resistance and prevent corrosion over prolonged use.

Operating temperature ranges from -55°C to 125°C, and the connector supports a current rating of 1.75 A, making it suitable for a variety of electronic circuits and equipment. The presence of a polarizing notch and ejector latches ensures precise connector mating and easy disconnection when necessary.

This PCB header uses solder termination and features male contact gender with a mating pin length of 3.05 mm for compatibility with matching IDC socket assemblies. It is mainly used in industrial, manufacturing, electronics, laboratory, and commercial applications requiring robust PCB interconnections.

Surface mount design for PCB integration. High durability housing material with temperature resilience. Gold-plated phosphor bronze contacts for reliable conductivity. Polarizing notch and ejector latches for secure and accurate mating.

Wide operating temperature and stable current rating. Male contact gender with standard pin length. Suitable for industrial and electronic component assembly.

Samtec products ensure quality and precision in PCB connector solutions. Explore more in our PCB Headers category for a wide range of connector options tailored to industrial and commercial electronics needs.
