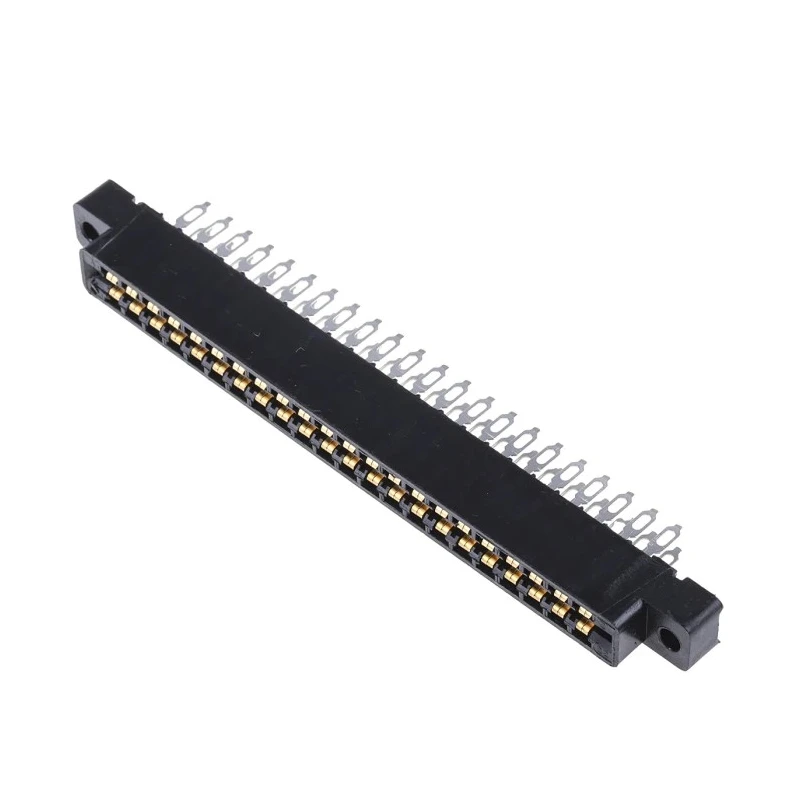

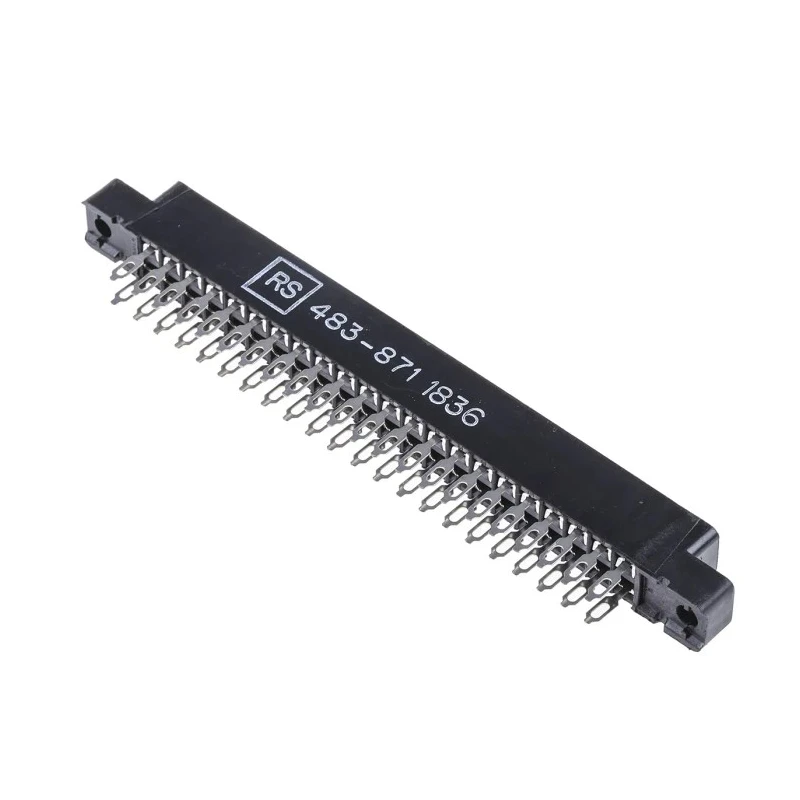

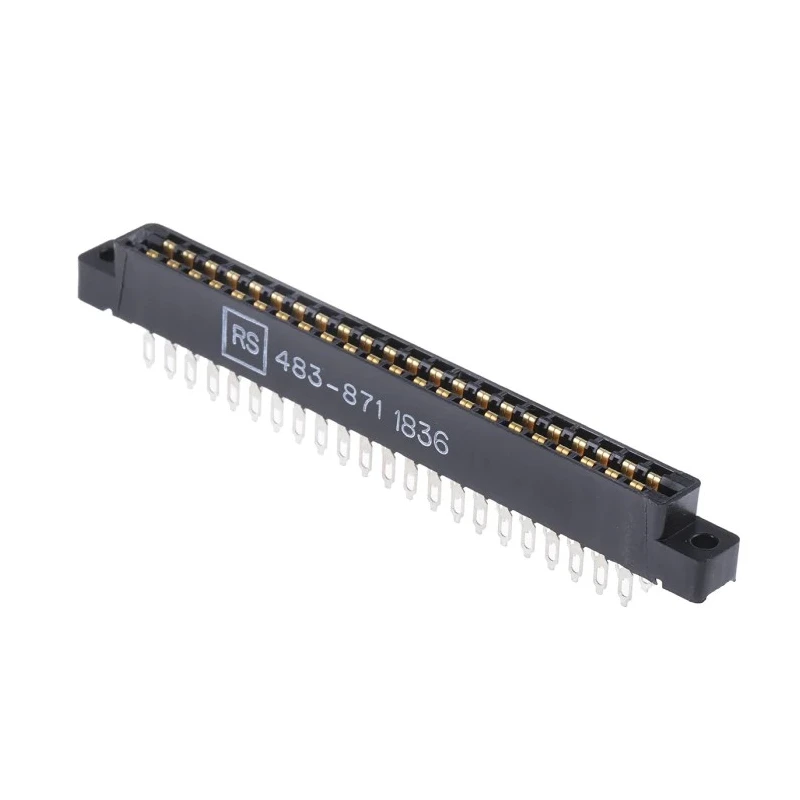

Cinch CARDCON Series Straight Edge Connector, 44-Contacts, 3.96 mm Pitch, 2 Row, Solder Termination BA000060000E000
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 1.8kV |
| Brand | Cinch |
| Orientation | Straight |
| Current | 5A |
| Model | BA000060000E000 |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | CARDCON |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 3.96mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 44 |
| Card Type | Edge |
| 22WAY .156 IN EDGE CONNBrand | NEUTRAL |
| Cinch Edge Connector, 18-Contacts, 3.96mm Pitch, 2-Row, Solder TerminationBrand | Cinch |
Key Features
- 44 contacts enable reliable signal transmission.
- Gold over nickel plating ensures corrosion resistance.
- Brass contact material provides durability and electrical conductivity.
- Suitable for micro-computer interface applications.
- Operates at currents up to 5 amperes.
- Operating temperature ranges from -65°C to 105°C.
- Fibreglass reinforced polyethylene terephthalate housing enhances mechanical strength.
- Keying feature prevents incorrect mating during installation.
Product Description
Cinch BA000060000E000 CARDCON Series Straight Edge Connector is a high-quality edge connector engineered for electronic component applications requiring robust and reliable electrical connections.
This connector features 44 gold-over-nickel plated brass contacts arranged in two rows with a 3.96 mm pitch, providing optimal signal integrity and durability. The housing is constructed from fibreglass reinforced polyethylene terephthalate, delivering excellent mechanical strength and resistance to wear.
Designed to operate sustainably in temperatures ranging from -65°C up to 105°C, and rated for voltages up to 1.8 kV with a maximum current of 5 amps, this connector is ideal for various micro-computer and interface applications.
The solder termination type enables secure connection to PCBs, and the keying feature ensures correct orientation and mating during assembly.
This edge connector series is manufactured in the United States and does not carry specific standards or approvals but is known for reliable performance in industrial and commercial electronic applications.
44 contacts enable reliable signal transmission. Gold over nickel plating ensures corrosion resistance. Brass contact material provides durability and electrical conductivity. Suitable for micro-computer interface applications.
Operates at currents up to 5 amperes. Voltage rating up to 1.8 kV for safe usage. Operating temperature ranges from -65°C to 105°C. Fibreglass reinforced polyethylene terephthalate housing enhances mechanical strength. Keying feature prevents incorrect mating during installation.
Compact double-row design with 3.96 mm pitch spacing. Ideal for industrial electronics, manufacturing, laboratory instrumentation, and power systems requiring dependable Edge Connectors. Explore more connectors and electronic components from the Cinch CARDCON Series and related categories at EnvMart for professional and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a maximum current of 5 amperes.
The voltage rating for this edge connector is up to 1.8 kV.
The contacts are made of brass with gold over nickel plating, and the housing is constructed from fibreglass reinforced polyethylene terephthalate.
It operates within a temperature range of -65°C to 105°C.
This model features 44 contacts arranged in two rows.
The contact pitch is 3.96 mm.
It utilizes a solder termination type for secure connection to PCBs.
The orientation of this connector is straight.
This model includes a keying feature that prevents incorrect mating during installation.
It is manufactured in the United States.
It is suitable for micro-computer interface applications and various industrial electronics.
The housing is made of fibreglass reinforced polyethylene terephthalate, enhancing its mechanical strength.
