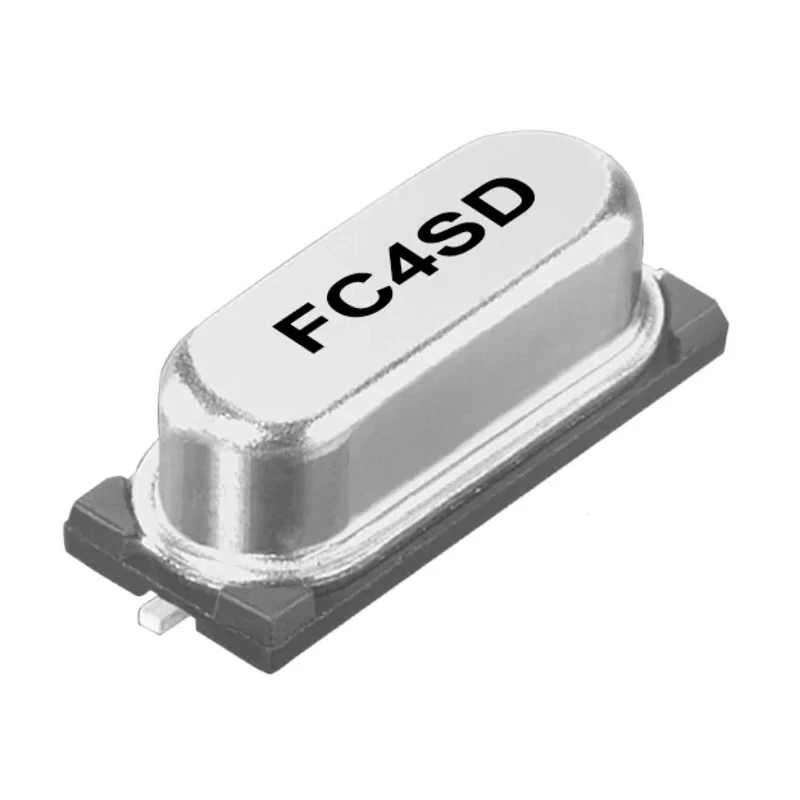

Abracon 25 MHz Crystal ±30 ppm Surface Mount 2-Pin 4.5 mm Height 13.5 mm Length 5 mm Width FC4SDCBMM25.0-T1

Abracon FC4SDCBMM25.0-T1 25 MHz Crystal is a high precision surface mount crystal oscillator unit designed for stable frequency generation in electronic circuits. Featuring a 2-pin surface mount package, its compact dimensions (13.5 mm length, 5 mm width, and 4.5 mm height) facilitate integration into densely packed PCB layouts commonly found in industrial and commercial electronics.

The crystal operates at a standard frequency of 25 MHz with a frequency tolerance of ±30 ppm and stability of ±50 ppm, making it suitable for timing, frequency control, and signal processing applications across a range of devices. Its load capacitance of 20 pF and shunt capacitance of approximately 7 pF ensure consistent electrical performance and reliable load matching.

Designed to withstand operational temperatures ranging from -20°C to 70°C, this crystal unit can be used in various environmental conditions typical in industrial, automotive, and communication sectors. Additionally, it complies with RoHS directives, guaranteeing it meets environmental safety standards for hazardous substances.

The FC4SD series features a resistance weld seal and termination finishes of tin (Sn), silver (Ag 3.0%), and copper (Cu 0.5%), enhancing durability and solderability on the PCB. Packaged in Tape & Reel, it supports efficient automatic placement for mass production.

Standard 25 MHz frequency with ±30 ppm tolerance ensures precision timing. Surface mount design with compact 2-pin package enables space-saving PCB assembly. Robust operating temperature range (-20°C to 70°C) suited for diverse industrial environments.

RoHS compliant construction for environmentally friendly manufacturing. Packaged in Tape & Reel for streamlined automated assembly processes. Resistance weld sealed structure enhances reliability and longevity. Termination finish of Sn, Ag 3.0%, and Cu 0.5% improves solder joint quality.

This Abracon crystal unit is ideal for use in industrial electronics, laboratory instrumentation, communication equipment, and other applications requiring accurate frequency control and stability. It supports efficient manufacturing processes through its surface mount and Tape & Reel packaging configurations.
