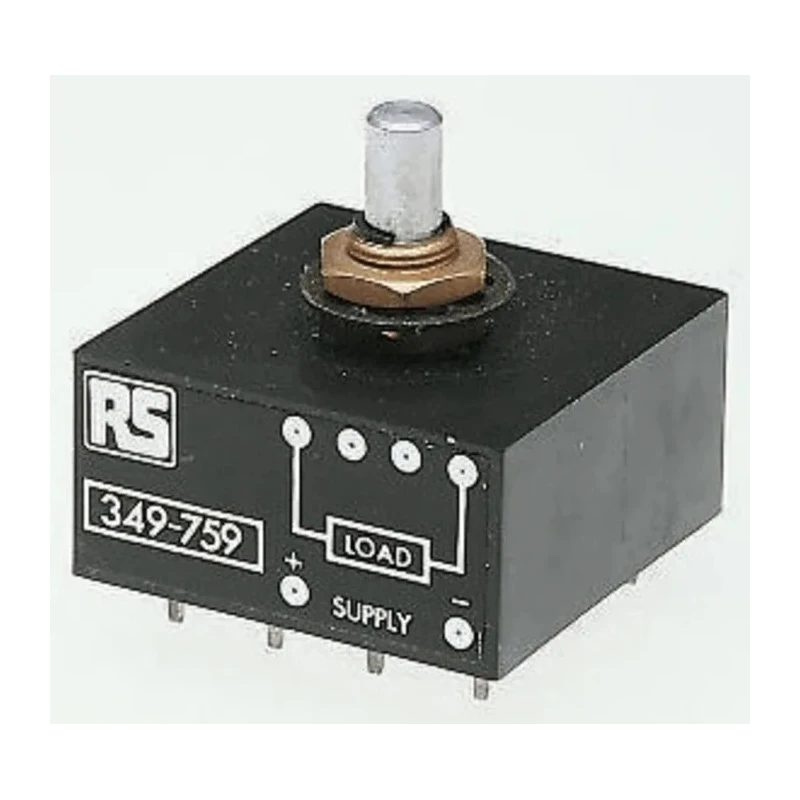

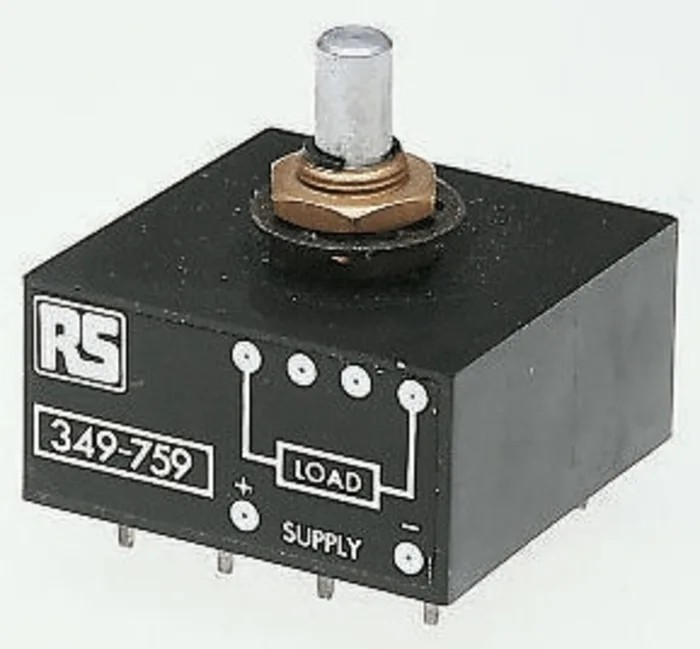

Tempatron Mint Series Panel Timer Relay, Panel Mount, 10 to 30 V dc Supply, 0.5 to 20 s Time Range MINT20SLP30VDC

Tempatron Mint Series Panel Timer Relay model MINT20SLP30VDC is designed for precision timing applications requiring interval control. It operates with a DC supply voltage range of 10 to 30 V and provides timing intervals adjustable between 0.5 to 20 seconds, suitable for automated industrial processes and electrical control systems.

Its panel mount design enables seamless installation in control panels commonly used in industrial automation, manufacturing, and electrical equipment contexts. The relay features a single timer function using an offset double ring end mechanism to ensure precise timing operations consistent with engineering requirements.

The device is housed with an IP65 enclosure rating, offering robust protection against dust and water ingress, making it suitable for use in harsh environments and demanding electrical applications. It operates reliably within a wide ambient temperature range from -20°C to 60°C, supporting diverse industrial and commercial settings.

Standards compliance includes CE marking, conforming to EN61010-1 and EN50081-1/50082-1 EMC directives, ensuring safe, electromagnetic compatibility and regulatory adherence.

Connectivity is facilitated via solder terminals enabling strong and durable electrical connections. The relay resets by removal of power supply with a reset time of 50 milliseconds. It provides an output sink current of up to 150 milliamps, making it suitable for control circuits requiring moderate current handling.

Compact physical dimensions of 40mm width, 40mm length, and 42mm height allow installation in space-constrained panels and enclosures common in electrical and automation industries.

Panel mount type ensures easy integration in electrical control panels. Features a single timer function with offset double ring end operation. Robust IP65 rating for protection against dust and water ingress. Temperature operating range from -20°C to 60°C suitable for diverse environments.

CE marked, conforming to EN61010-1 and EN50081-1/50082-1 EMC directives. Compact dimensions of 40mm width, 40mm length, and 42mm height. Solder terminal connections for secure and reliable electrical contacts. Reset function activated by removing the power supply, with a reset time of 50 ms.

Output sink current capacity of 150 mA.

This timer relay is ideal for industrial automation, laboratory electrical control, manufacturing process control, HVAC systems, and commercial electrical installations requiring precise timing control.
