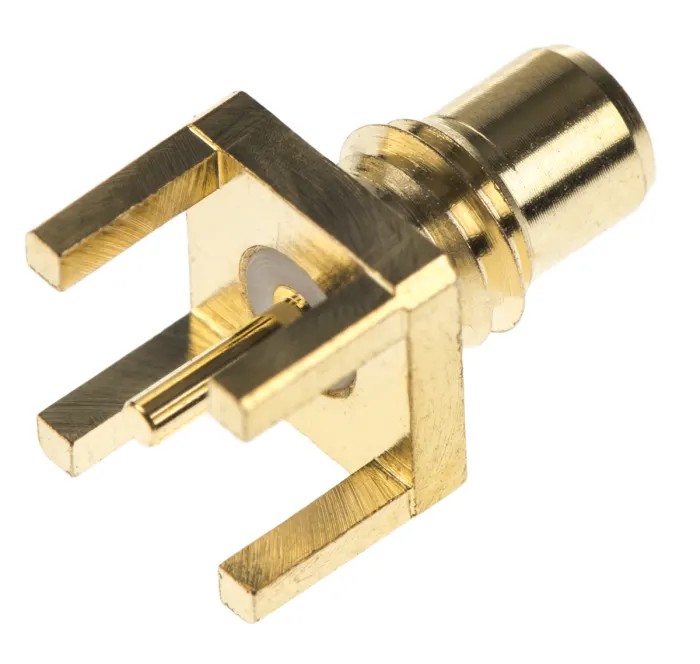

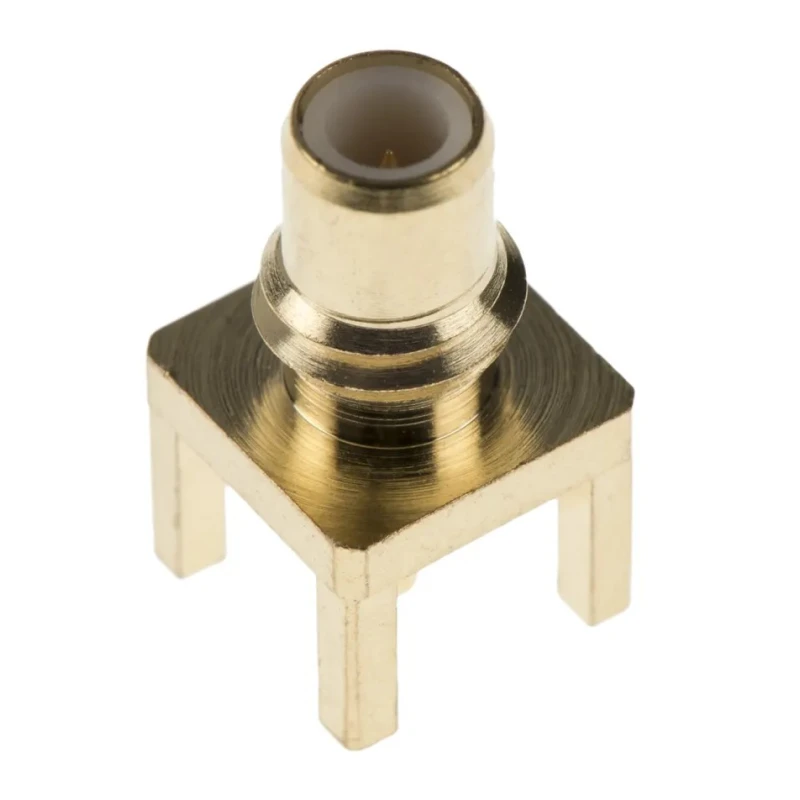

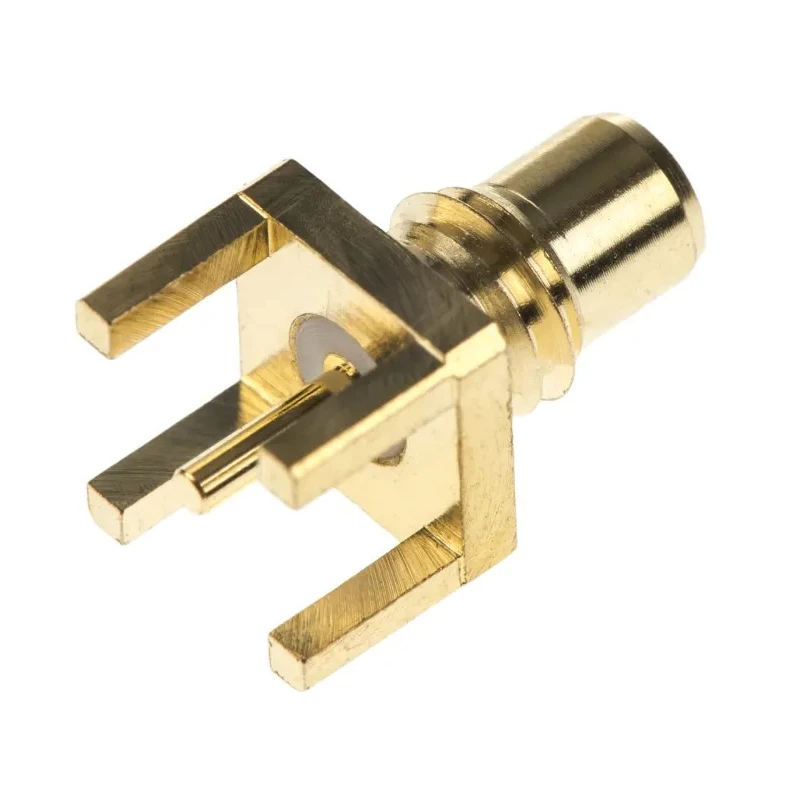

TE Connectivity SMC Series Coaxial Connector Through Hole Female, 50 Ω, Straight Body Solder 1-1337485-0
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Through Hole |
| Operating Frequency | 10GHz |
| Contact Material | Beryllium Copper |
| Series | SMC |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | Coaxial |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMC |
| Body Plating | Gold |
Key Features
- Designed for through hole mounting on PCB assemblies.
- Features a female connector gender with normal polarity.
- Operates efficiently up to 10 GHz frequency.
- Constructed with beryllium copper contacts plated in gold for optimal conductivity.
- Gold plated body offers corrosion resistance and durability.
- Suitable for operating temperatures ranging from -65°C to 165°C.
- Standard size coaxial cable compatibility ensures versatile applications.
- Termination is performed by soldering to ensure robust mechanical and electrical connections.
Product Description
TE Connectivity 1-1337485-0 is a precision SMC Series Coaxial Connector designed for through hole mounting onto printed circuit boards (PCBs). This female gender connector features a straight body design with solder termination, ensuring secure and reliable electrical connections in high-frequency circuits.
The connector offers 50 Ω impedance, supporting signal frequencies up to 10 GHz, making it suitable for RF, microwave, and communication devices requiring minimal signal loss and high-performance transmission.
Constructed with beryllium copper contact material, the connector benefits from excellent electrical conductivity and mechanical strength. Both the contacts and the connector body boast gold plating, which enhances corrosion resistance and durability over prolonged use in demanding environments.
Operating temperature ranges from -65°C to 165°C, enabling reliable function in harsh industrial, laboratory, and electronic manufacturing settings. The standard coaxial cable compatibility and non-bulkhead mount type allow integration into a wide array of electronic assemblies.
Termination through soldering simplifies installation and ensures a stable, long-lasting connection. This connector is ideal for use in telecom equipment, test instrumentation, broadcast systems, and any application where high-frequency signal integrity is critical.
Designed for through hole PCB mounting applications. Female connector gender with normal polarity configuration. High-frequency support up to 10 GHz. Gold plated beryllium copper contacts for optimal conductivity and corrosion resistance.
Robust gold plated body for enhanced durability. Wide operating temperature range: -65°C to 165°C. Solder termination type for secure electrical and mechanical connection. Standard size for versatile coaxial cable connectivity.
Non-bulkhead design enables direct PCB integration. Suitable for industrial, laboratory, telecommunications, and test equipment applications. Explore more high-quality Coaxial Connectors and electronic components at EnvMart for your industrial and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates efficiently up to 10 GHz, making it suitable for high-frequency applications.
This connector is designed for through hole mounting on printed circuit boards (PCBs).
It has an impedance rating of 50 Ω, which is typical for coaxial connectors used in RF applications.
The connector features beryllium copper contacts plated in gold, providing optimal conductivity and corrosion resistance.
It can operate within a temperature range of -65°C to 165°C, suitable for various environments.
Termination is performed by soldering, ensuring a robust mechanical and electrical connection.
This connector features a female gender with normal polarity configuration.
It is compatible with standard size coaxial cables, allowing versatile applications in electronic assemblies.
It has a straight body design, which is typical for SMC series connectors.
The country of origin for this connector is India.
It is suitable for use in telecom equipment, test instrumentation, broadcast systems, and applications requiring high-frequency signal integrity.
The gold plating enhances corrosion resistance and durability, ensuring reliable performance over time.
