Wachendorff WDGI 58B Series Incremental Encoder 5.5V DC, 1024 PPR, RS422 TTL Inverted Signal, Solid WDG58B-1024-ABN-I05-K3

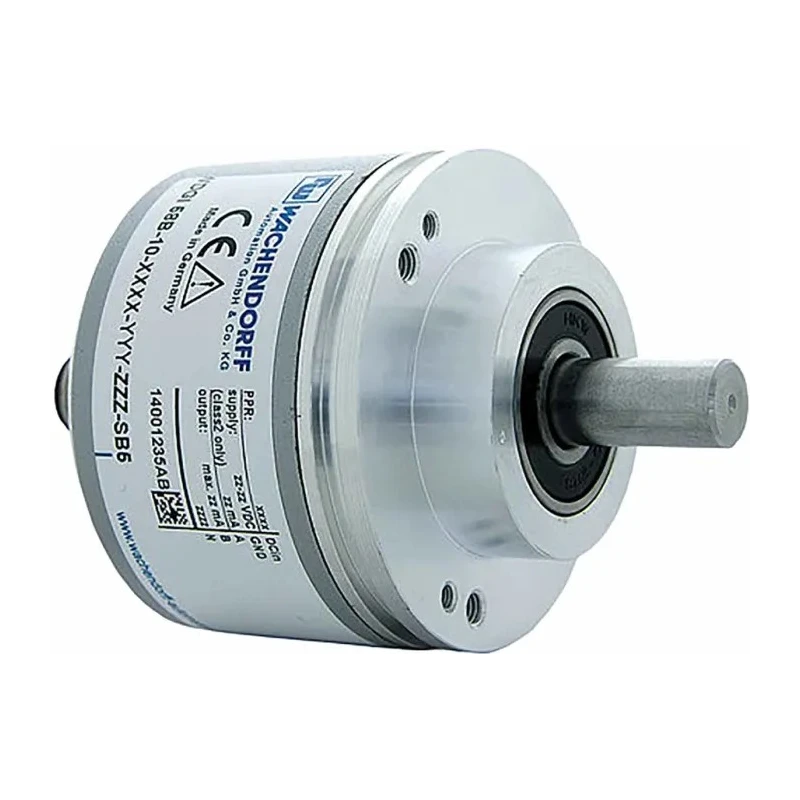

Wachendorff WDGI 58B Series Incremental Encoder model WDG58B-1024-ABN-I05-K3 is a precision rotary transducer designed for industrial motion control applications. It operates on a 5.5V DC power supply and delivers 1024 pulses per revolution (PPR) output signals with RS422 and TTL inverted output types, offering accurate rpm, position, distance, or speed measurement.

The encoder features a solid shaft measuring 10 mm in diameter, housed in a rugged aluminium casing with a clamping flange mount. Its compact overall dimensions are 83 mm in height and width, with a depth of 58 mm. The device supports maximum revolutions up to 8000 rpm and a high switching frequency of 200 kHz, suitable for precise industrial automation tasks.

Designed for harsh environments, it has IP65 rating at the shaft and IP67 rating at the cover, ensuring outstanding protection against dust and water exposure. The operating temperature range spans from -20°C up to 80°C, enabling reliable performance in diverse industrial conditions.

This encoder includes a high degree of axial and radial load resistance and is built to DIN industrial standards, including DIN VDE 0160 and DIN 40 050 compliance. The durable aluminium housing ensures longevity and robustness in challenging operational scenarios.

Use cases include industrial automation, manufacturing machinery monitoring, conveyor positioning, and precise motor control. Its solid industrial design and accurate pulse output make this incremental encoder ideal for demanding applications requiring consistent, high-resolution feedback.

Operates at a maximum supply voltage of 5.5V DC. Outputs RS422 and TTL inverted signals for reliable communication. Solid shaft with a diameter of 10 mm ensures robust mechanical connection. Maximum rotational speed is 8000 rpm suitable for high-speed applications.

Features clamping flange mount for easy installation. IP65 and IP67 rated for excellent protection against dust and water ingress. Withstands operating temperatures from -20°C to 80°C. Constructed with a sturdy industrial aluminium housing for durability.

Switching frequency up to 200 kHz for high-resolution signal processing. Complies with DIN VDE 0160 and high protection standards according to DIN 40 050. Explore more sensors and motion control devices in our Electronics & Electricals category at EnvMart.
