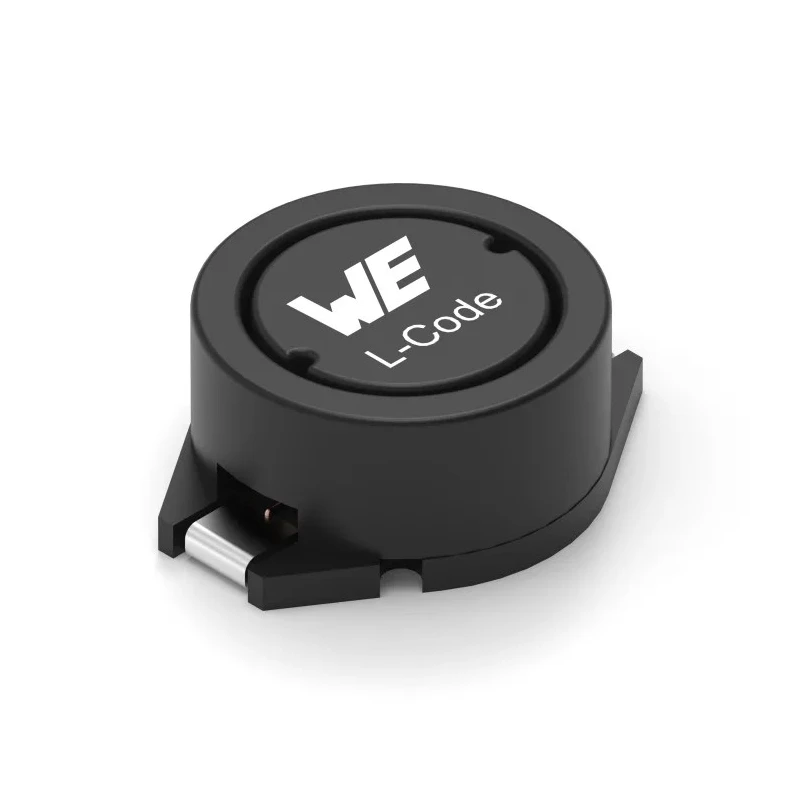

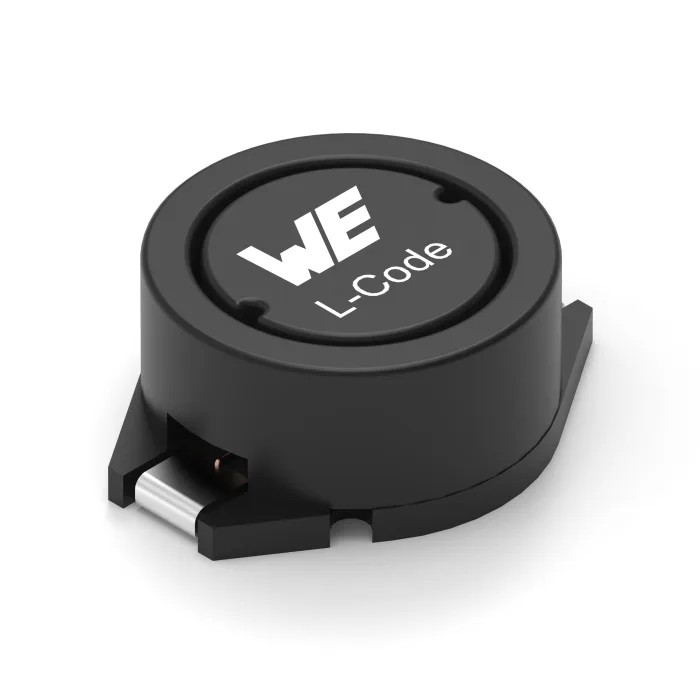

Wurth Elektronik WE-PD3 Shielded Wirewound Surface Mount Inductor with Ferrite Core 100 μH ±10% 680 mA 7.5 MHz 7445420
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 7.6mm |
| Brand | Wurth Elektronik |
| Height | 4.9mm |
| Length | 12.7mm |
| Model | 7445420 |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-PD3 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | JEDEC JS709B, REACH, RoHS |
| Maximum DC Current | 680mA |
| Maximum DC Resistance | 420mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 7.5MHz |
| Minimum Quality Factor | 35 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- This surface mount inductor features magnetic shielding to minimize interference.
- The ferrite core construction ensures efficient performance at frequencies up to 7.5 MHz.
- It has an inductance tolerance of ±10% and a maximum DC resistance of 420 mΩ.
- Designed to operate within a temperature range of -25°C to 85°C.
- Compliant with automotive AEC-Q200 standard and meets JEDEC JS709B, REACH, and RoHS certifications.
- Packaged on tape and reel for automated assembly.

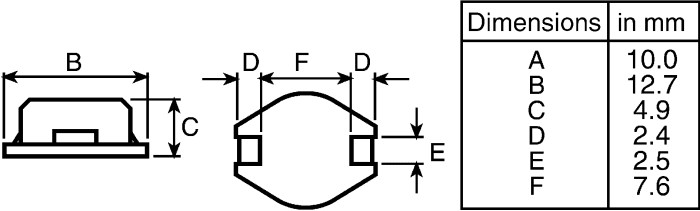

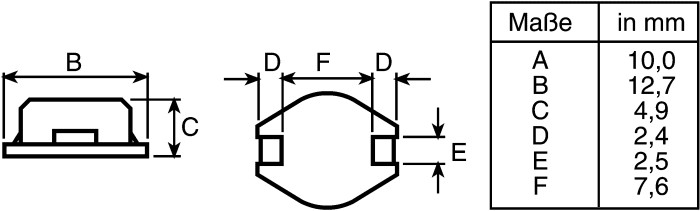

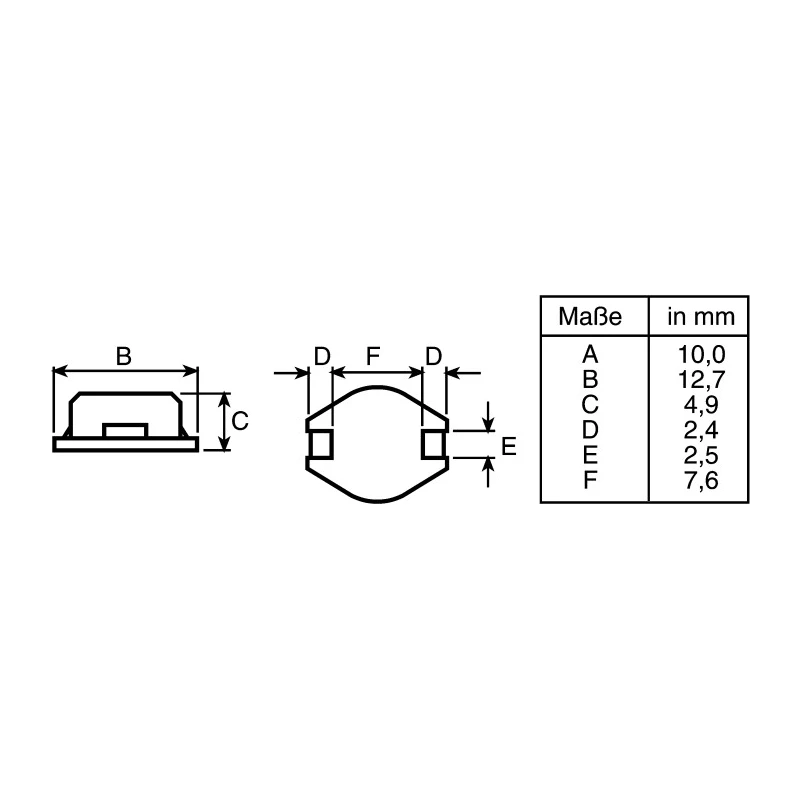

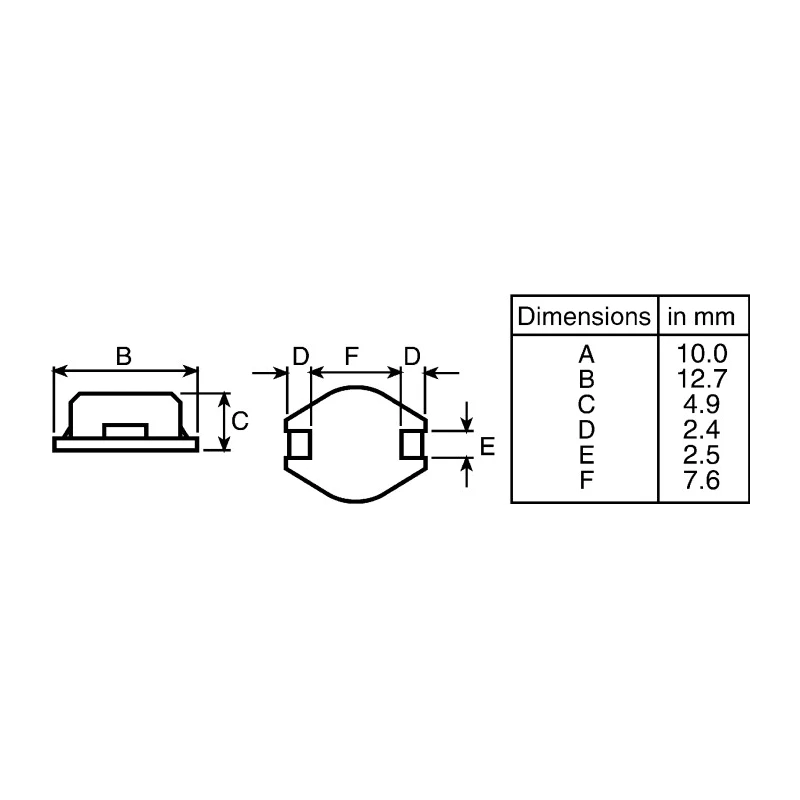

- Low profile design with dimensions 12.7 mm length, 7.6 mm diameter, 10 mm depth, and 4.9 mm height.
Product Description
Wurth Elektronik 7445420 shielded wirewound surface mount inductor with ferrite core is a high-quality passive electronic component designed for efficient suppression of electromagnetic interference in electronic circuits.
It offers a nominal inductance of 100 μH with a tolerance of ±10%, suitable for frequency applications up to 7.5 MHz. It supports a maximum DC current of 680 mA with a maximum DC resistance of 420 mΩ, ensuring reliable performance in demanding electrical environments.
The inductor’s compact, low-profile form factor with dimensions of 12.7 mm length, 7.6 mm diameter, 10 mm depth, and 4.9 mm height allows for versatile surface mounting on PCBs. Its construction includes a ferrite core which provides magnetic shielding, minimizing interference and enhancing circuit stability.
Designed to meet automotive AEC-Q200 standards and compliant with JEDEC JS709B, REACH, and RoHS directives, this component is suitable for automotive, industrial, consumer electronics, and telecommunications applications.
Operating temperature ranges from -25°C to +85°C, making it versatile for various environmental conditions. The product is delivered on tape and reel packaging, facilitating automated insertion during manufacturing.
This surface mount inductor features magnetic shielding to minimize interference. The ferrite core construction ensures efficient performance at frequencies up to 7.5 MHz. It has an inductance tolerance of ±10% and a maximum DC resistance of 420 mΩ.
Designed to operate within a temperature range of -25°C to 85°C. Compliant with automotive AEC-Q200 standard and meets JEDEC JS709B, REACH, and RoHS certifications. Packaged on tape and reel for automated assembly. Low profile design with dimensions 12.7 mm length, 7.6 mm diameter, 10 mm depth, and 4.9 mm height.
This Wurth Elektronik wirewound Surface Mount Inductor is ideal for demanding industrial, automotive, telecommunication, and consumer electronics applications where reliable magnetic shielding and stable inductance are essential.
Browse the Wurth Elektronik range and other quality inductors at EnvMart for your advanced electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 100 μH with an inductance tolerance of ±10%.
It supports a maximum DC current of 680 mA.
The maximum operating temperature is 85°C.
The dimensions are 12.7 mm in length, 7.6 mm in diameter, 10 mm in depth, and 4.9 mm in height.
The maximum self-resonant frequency is 7.5 MHz.
This inductor uses a ferrite core material, which provides magnetic shielding.
It is packaged on tape and reel, which facilitates automated assembly.
It complies with the automotive AEC-Q200 standard.
This model meets JEDEC JS709B, REACH, and RoHS certifications.
The minimum operating temperature is -25°C.
The maximum DC resistance is 420 mΩ.
It is suitable for automotive, industrial, consumer electronics, and telecommunications applications.
