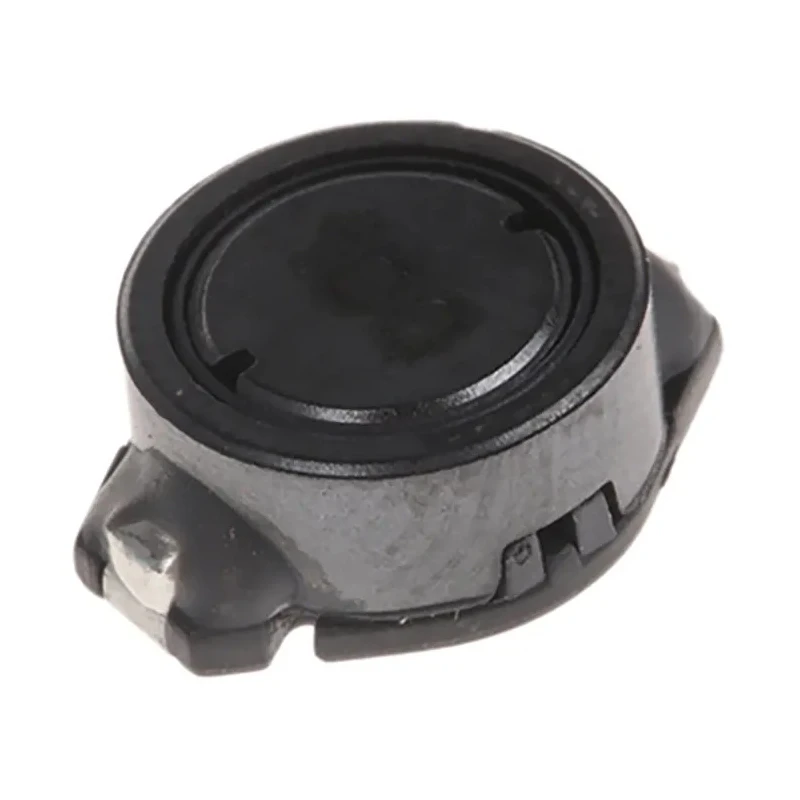

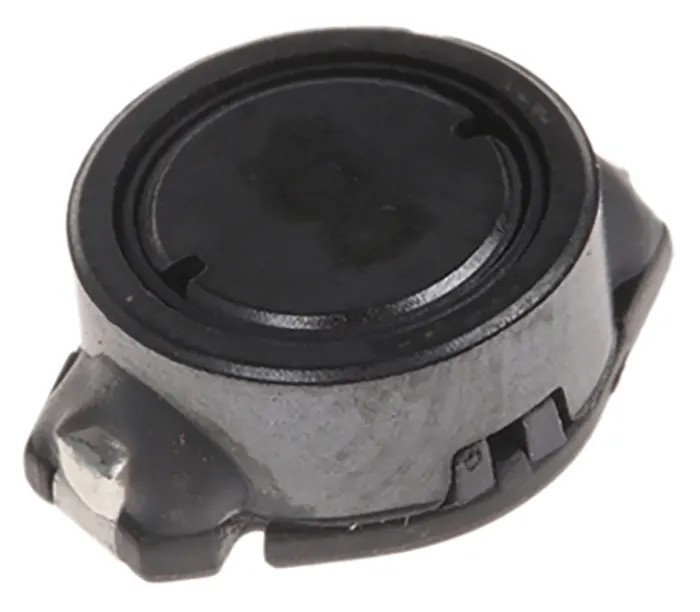

Wurth Elektronik WE-PD3 Shielded Wirewound Surface Mount Inductor 10 μH ±20% 2 A Max DC Current 74454010
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 7.6mm |
| Brand | Wurth Elektronik |
| Height | 4.9mm |
| Length | 12.7mm |
| Model | 74454010 |
| Depth | 10mm |
| Packaging | Tape & Reel |
| Series | WE-PD3 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | JEDEC JS709B, REACH, RoHS |
| Maximum DC Current | 2A |
| Maximum DC Resistance | 65mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 30MHz |
| Minimum Quality Factor | 48 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Inductance of 10 μH with ±20% tolerance provides effective inductive performance.
- Maximum DC current rating of 2 A suitable for demanding power applications.
- Magnetically shielded design reduces electromagnetic interference and enhances circuit stability.

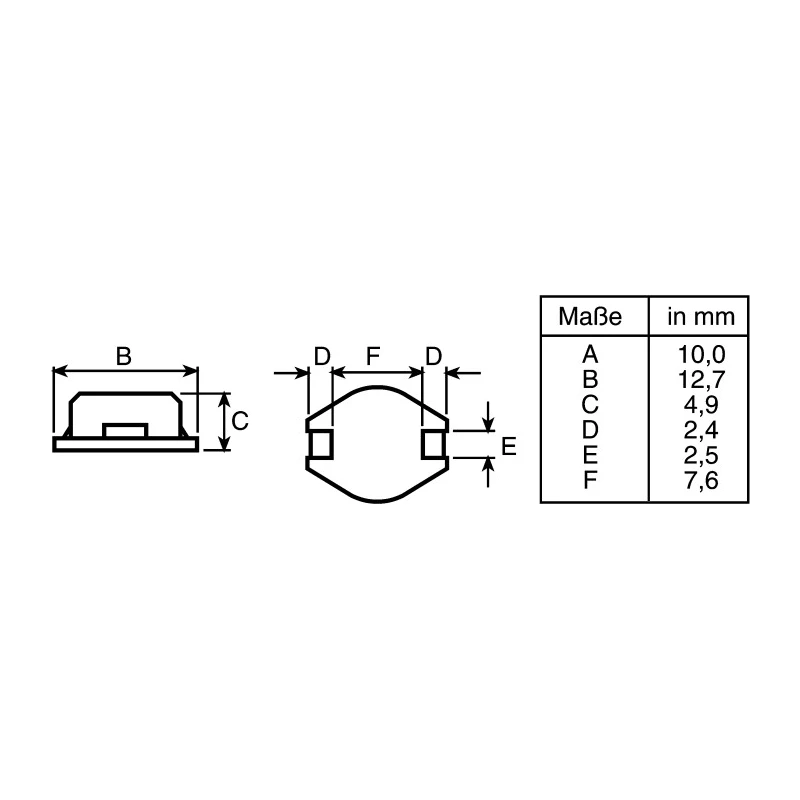

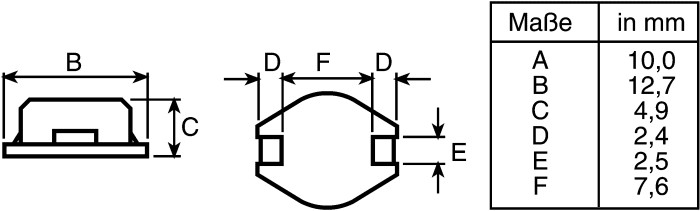

- Compact size with dimensions 12.7mm length, 7.6mm diameter, and 4.9mm height supports space-constrained PCBs.
- Operating temperature range from -25°C to 85°C ensures reliable operation in harsh environments.
- AEC-Q200 automotive standard certification highlights suitability for automotive electronic systems.
- High quality ferrite core material and wirewound construction deliver low DC resistance of 65mΩ and high quality factor of 48.
- Packaging by tape and reel enables efficient automated PCB assembly processes.
Product Description
Wurth Elektronik 74454010 is a high-quality WE-PD3 series shielded wirewound surface mount inductor designed specifically with a ferrite core for power and electronic applications requiring stable inductance and low electromagnetic interference.
This inductor offers an inductance rating of 10 μH with a tolerance of ±20%, making it suitable for various electronic circuits including power supply filters, DC/DC converters, and radio frequency shielding up to 10 MHz operating frequency.
The device can handle a maximum DC current of 2 A and exhibits a low DC resistance of 65 mΩ, ensuring efficient current flow and minimal power losses. Its magnetic shielding prevents interference with adjacent components, improving overall circuit performance.
Physically compact with a length of 12.7mm, diameter of 7.6mm, and height of 4.9mm, this Surface Mount Inductor is ideally suited for automated assembly lines utilizing tape and reel packaging. The robust construction complies with automotive industry standard AEC-Q200, making it suitable for automotive electronics and other industrial uses.
Operating reliably across the temperature range of -25°C to +85°C, the 74454010 model is moulded and designed to meet industry standards JEDEC JS709B, REACH, and RoHS for environmental compliance.
Inductance of 10 μH with ±20% tolerance. Maximum DC current rating of 2 A. Magnetically shielded wirewound construction. Low DC resistance of 65 mΩ and minimum quality factor of 48. Compact surface mount package with dimensions 12.7mm x 7.6mm x 4.9mm.
AEC-Q200 certified for automotive applications. Compliant with JEDEC JS709B, REACH, and RoHS standards. Packaging: Tape & Reel for automated PCB assembly.
This Wurth Elektronik WE-PD3 inductor is ideal for use in industrial, automotive, and electronic manufacturing applications requiring reliable, shielded inductive components. Explore our extensive electronics category for more components to support your projects and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance of 10 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 2 A.
The dimensions are 12.7 mm in length, 7.6 mm in diameter, and 4.9 mm in height.
It operates reliably within a temperature range of -25°C to 85°C.
The inductor features a wirewound construction with a ferrite core material.
The inductor has a low DC resistance of 65 mΩ.
Yes, it is AEC-Q200 certified, making it suitable for automotive electronic systems.
It complies with JEDEC JS709B, REACH, and RoHS standards.
The minimum quality factor is 48.
It is packaged by tape and reel, which facilitates efficient automated PCB assembly processes.
The maximum self-resonant frequency is 30 MHz.
It is suitable for power supply filters, DC/DC converters, and radio frequency shielding up to 10 MHz.
