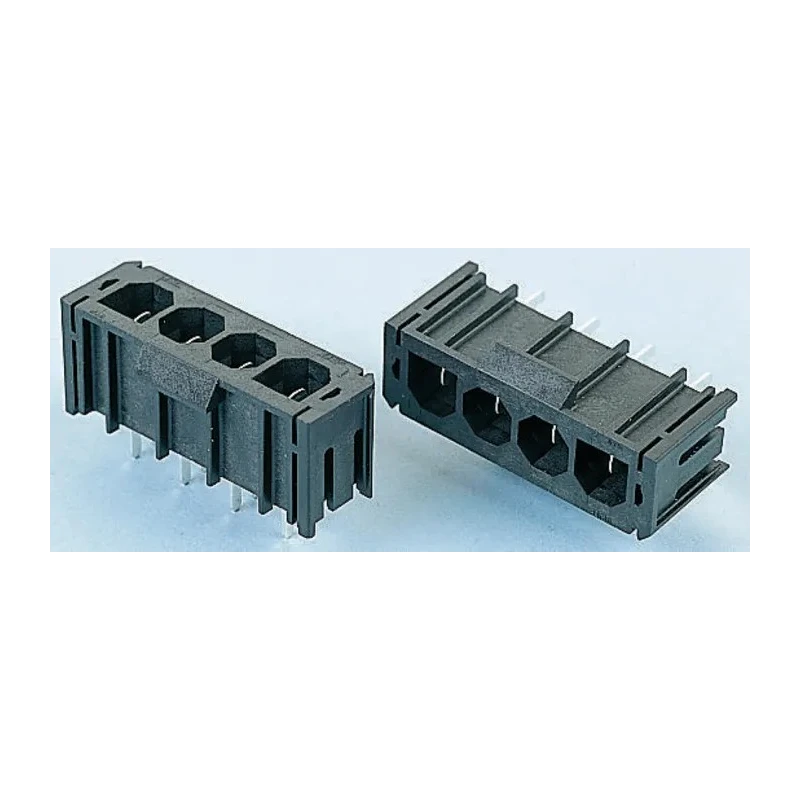

Molex Sabre Series Right Angle Through Hole PCB Header 4 Contacts 7.5 mm Pitch 1 Row Shrouded 43160-3104
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 18A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Sabre |
| Termination Type | Solder |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 7.5mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.81mm |
Key Features
- Supplies a robust single-row connector suitable for high current applications up to 18A.
- Features male brass contacts with tin plating for secure solder termination.
- Constructed with high temperature thermoplastic housing for durability in harsh environments.
- Designed with positive locking casing to prevent accidental disconnection and ensure correct mating.
- Operates reliably between -40°C and 75°C, accommodating industrial temperature ranges.
- Complies with UL E29179 and UL1950 standards, ensuring safety and quality.
- Ideal for wire-to-board applications in PCB assemblies requiring right angle orientation.
Product Description
Molex 43160-3104 PCB Header from the Sabre Series is a high-quality electronic component engineered for reliable wire-to-board connections in industrial and commercial PCB applications. This 4-contact, single-row, right angle header features a 7.5 mm pitch and a shrouded housing made from high temperature thermoplastic, providing excellent durability and insulation.
The male brass contacts are tin plated and include harpoons for secure fixing on PCBs. Designed to handle currents up to 18A at voltages up to 600V, this header is suitable for demanding electrical environments. The connector system is through hole mount type and designed to maintain strong mechanical and electrical connections.
Operating temperature ranges from -40°C up to 75°C, making it adaptable for various industrial settings. The positive locking casing offers an audible click to ensure secure mating and prevent accidental disconnections. With UL E29179 and UL1950 certifications, this connector meets recognized safety and quality standards.
Its right angle orientation facilitates PCB layout flexibility while maintaining tight connections. These headers are used extensively in electronics manufacturing, industrial machinery, control systems, and electrical distribution equipment.
Robust single-row right angle connector with 4 male contacts. 7.5 mm pitch for precise wire-to-board connectivity. High temperature thermoplastic housing for enhanced durability. Positive lock design ensures secure and reliable connection.
Rated for 18A current and 600V voltage applications. Solder termination with tin-plated brass contacts. Operating temperature range from -40°C to 75°C. Meets UL E29179 and UL1950 safety standards.
This Molex Sabre Series PCB Header 43160-3104 is an essential component for PCB manufacturers and electronic engineers seeking reliable, high-performance connectors. Browse the Electronics Components category on EnvMart to explore the full range of PCB Headers and connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 18A, making it suitable for high current applications.
It has a voltage rating of 600V, allowing it to be used in demanding electrical environments.
This unit features a through hole mount type, ensuring strong mechanical and electrical connections on PCBs.
The housing is made from high temperature thermoplastic, while the contacts are made from brass with tin plating for secure solder termination.
It operates reliably within a temperature range of -40°C to 75°C, suitable for various industrial settings.
This model has 4 male contacts, designed for precise wire-to-board connectivity.
The contact pitch is 7.5 mm, facilitating accurate alignment and connection in PCB assemblies.
Yes, it features a positive locking casing that provides an audible click to ensure secure mating and prevent accidental disconnections.
It complies with UL E29179 and UL1950 standards, ensuring safety and quality in its applications.
The connector system is designed for wire-to-board applications, making it suitable for various electronic connections.
The tail pin length is 3.81 mm, which is suitable for through hole mounting on PCBs.
The country of origin for this model is India, indicating its manufacturing location.
