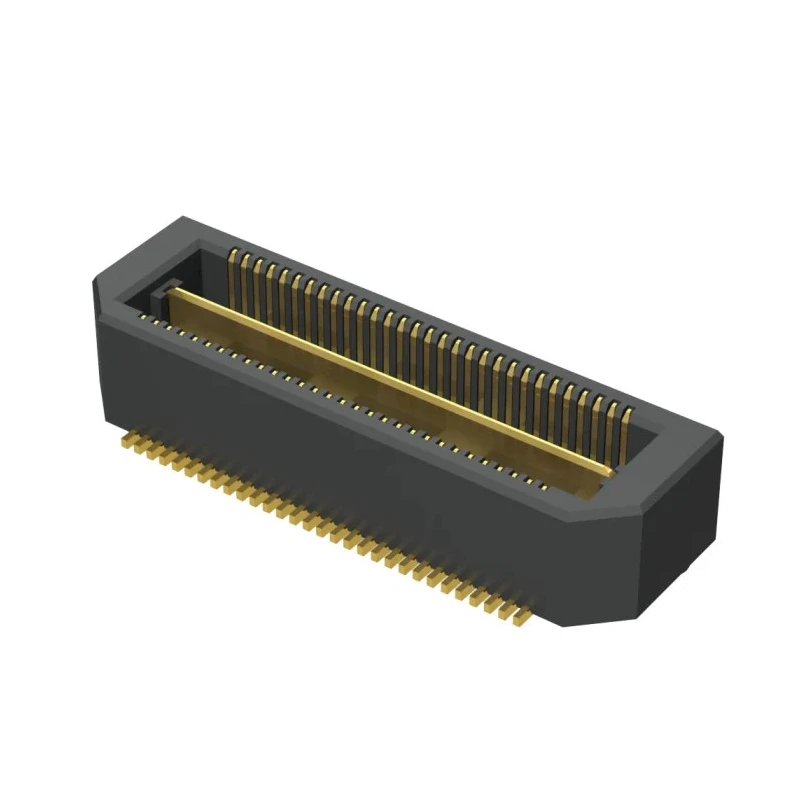

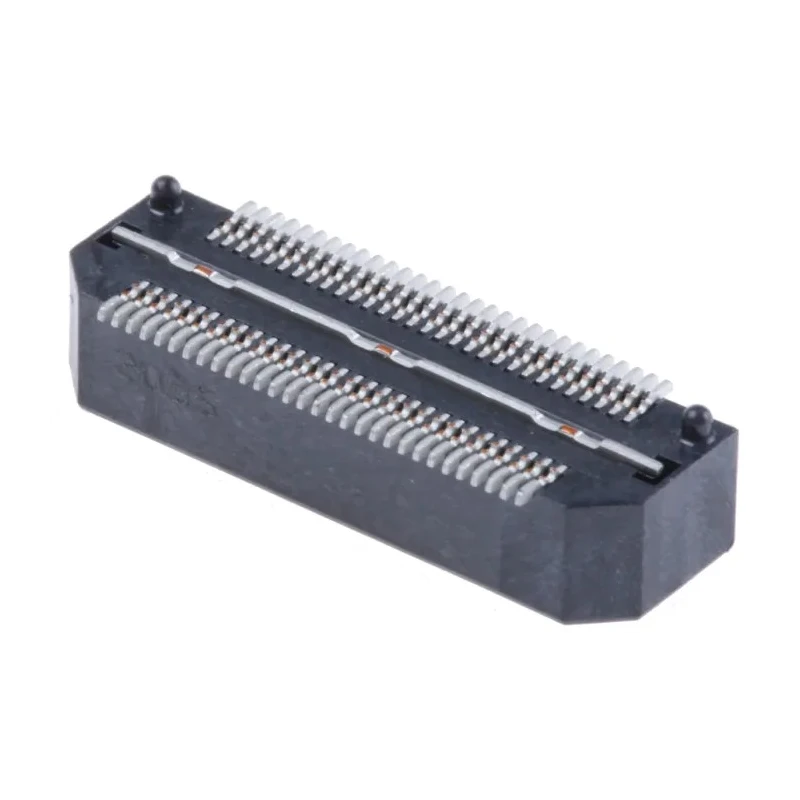

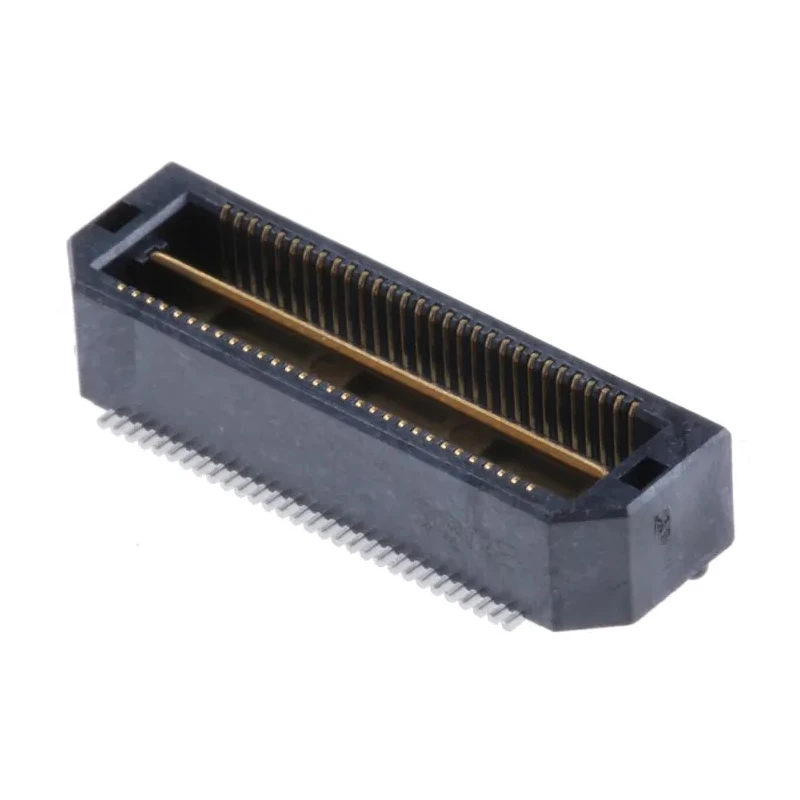

Samtec QTH Series Straight Surface PCB Header, 60 Contacts, 0.5 mm Pitch, 2 Row, Shrouded QTH-030-01-L-D-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec QTH Series Straight Surface PCB Header, 60 Contacts, 0.5 mm Pitch, 2 Row, Shrouded QTH-030-01-L-D-A

Name: Samtec QTH Series Straight Surface PCB Header, 60 Contacts, 0.5 mm Pitch, 2 Row, Shrouded QTH-030-01-L-D-A
Brand: Samtec
SKU: 130530
Price: 8.2 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	125V
Brand	Samtec
Orientation	Straight
Current	1A
Model	QTH-030-01-L-D-A
Mount Type	Surface
Housing Material	Polymer
Contact Material	Phosphor Bronze
Series	QTH
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	60
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Constructed with gold-plated phosphor bronze contacts for high-quality signal and power transfer.
Shrouded design with liquid crystal polymer housing ensures physical robustness and electrical insulation.
Operates reliably between -55°C and 125°C, suitable for harsh environments.
Surface mount type with straight orientation for seamless PCB integration.
Rated for 1A current and 125V voltage, ensuring safe and stable performance.
Ideal for telecommunication, aerospace engineering, process control, and industrial lighting applications.
Differential pair routing minimizes EMI and improves signal integrity for high-speed PCB designs.

Product Description

Samtec QTH-030-01-L-D-A is a high-performance Straight Surface PCB Header designed to facilitate robust board-to-board connections with a 60-contact, 0.5 mm pitch across two rows. Its shrouded construction with liquid crystal polymer housing and gold-plated phosphor bronze contacts ensures reliable power and signal transfer in demanding electronic environments.

Featuring a straight body orientation and surface mount type, this PCB header provides an easy and stable integration onto circuit boards. It is engineered to function flawlessly across temperatures ranging from -55°C to +125°C, making it suitable for rigorous industrial and aerospace applications.

The design supports up to 1A current and 125V voltage, providing secure power connections with excellent electrical performance. Its signal-boosting differential pair routing effectively reduces common mode noise and electromagnetic interference, enhancing high-speed data transfer reliability.

This header excels in telecommunications networking, process and control systems, aerospace engineering, and industrial lighting, serving as a critical connector in complex electronic assemblies.

Gold-plated phosphor bronze contacts deliver high-quality power and signal transmission. Liquid crystal polymer shrouding offers durability and safety against electrical shock. Operating temperature range of -55°C to 125°C for challenging environments.

Straight orientation with surface mount ensures compatibility with standard PCB assembly techniques. Differential pair routing minimizes EMI and enhances signal integrity. Supports currents up to 1A and voltages up to 125V for reliable performance.

Ideal applications include telecom, aerospace, industrial lighting, and process control.

Samtec’s QTH series provides durable and efficient PCB connectors for electronic and industrial needs. Explore more high-quality PCB Headers and connectors at EnvMart to support your board-level connectivity requirements.
