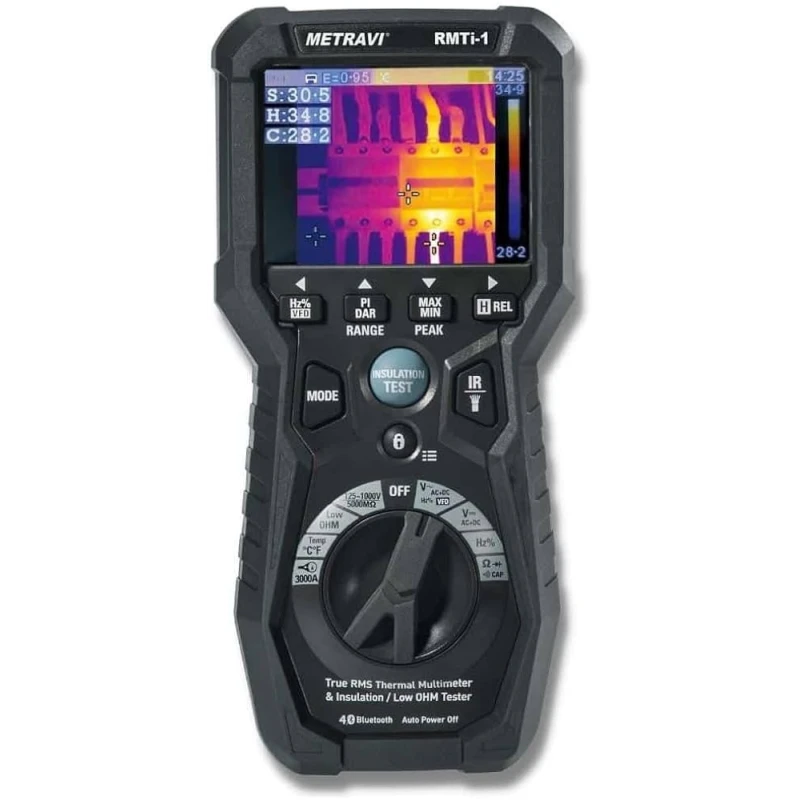

Metravi Rotating Machine Tester with Thermal Imager PRO RMTi-1

Name: Metravi Rotating Machine Tester with Thermal Imager PRO RMTi-1
Brand: Metravi
SKU: ADSJK
Price: 988.75 USD
Availability: InStock



SKU ADSJK Category Testing Instruments Brand Metravi Condition New

Specifications

Country of Origin	India
Package Contents	Metravi PRO RMTi-1 Rotating Machine Tester with Thermal Imager / Pair of Test Leads / K-type Wire Temperature Probe / 1x7.4V Rechargeable Li-Ion Battery / Carrying Bag / User Manual
Fuses	500mA/1000V
Brand	Metravi
Operating Temperature	5–40°C(41–104°F)
Storage Temperature	-20–60°C(-4–140°F)
Battery type	7.4V rechargeable Li-ION 2600mAh
Model	PRO RMTi-1
Reference Temperature	18–28°C(64–82°F)
EMC	IEC/EN61326-1/61557-1-2-4
Insulation	Double insulation
Safety	IEC/EN61010-1
Auto Power Off	After 5–60min idling(may be disabled)
Storage Humidity	Less than 80%RH
Allowable Relative Humidity	Less than 80%RH
Duty Cycle Range	10.0–90.0%
Duty Cycle Accuracy	±(1.2%+8dgt)
Overvoltage Category	CAT IV 600V/CAT III 1000V
Pollution Level	2
Max Operating Altitude	2000m(6562ft)
Mechanical Size	210×85×65mm
Mechanical Weight	680g(batteries included)
Battery Charger Power Supply	100/240VAC 50/60Hz 12VDC 2A
Display Conversion	TRMS
Display Characteristics	Color RGB 6000 dots with bargraph
Display Sampling Frequency	3 times/s
Thermal Imager Field Of View	21°×21°/0.5m
Thermal Imager Spatial Resolution	4.53mrad
Thermal Imager Ir Resolution	80×80 pixels
Thermal Imager Sensitivity	Less than 0.1°C at 30°C(86°F)/100mK
Thermal Imager Image Frequency	50Hz
Thermal Imager Focus Mode	Focus free
Thermal Imager Focal Length	7.5mm
Thermal Imager Fpa/Spectral Range	Uncooled microbolometer/8–14µm
Thermal Imager Object Temperature Range	-20–260°C(-4–302°F)
Thermal Imager Accuracy	±3°C(±36°F) or ±3% of reading(Environment temperature 10–35°C Object temperatureGreater than 0°C)
Diode Test Current	Less than 2mA
Diode Test Max Voltage	3.2VDC
Frequency Electrical Circuits Range	40.00–10kHz
Frequency Electrical Circuits Resolution	0.01–0.001kHz
Frequency Electrical Circuits Accuracy	±(1.0%+5dgt)
Duty Cycle Resolution	0.1%
Low Ohms Range	1.00–60.00Ω/60.00–600.0Ω
Low Ohms Resolution	0.01Ω/0.1Ω
Low Ohms Accuracy	±(1.5%+40dgt)/±(1.5%+20dgt)

Key Features

6000 Count 3.5’’ TFT Colour LCD Display
Built-in Thermal Imager with Max, Min and Center Crosshair Targeting
50Hz Fast Thermal Image Frame Rate
DC Voltage
AC, AC+DC TRMS Voltage
VFD (Variable Frequency Drive) measurements
Low Ohms measurements
Flexible Clamp or Coil can be used to measure high currents
Resistance and Continuity Test
Diode Test
Capacitance
Frequency
Duty Cycle
Temperature with K-Type Probe
Insulation Tester
PI/DAR Test
Data Logger Function and Recall
Re-chargeable battery and battery charge

Product Description

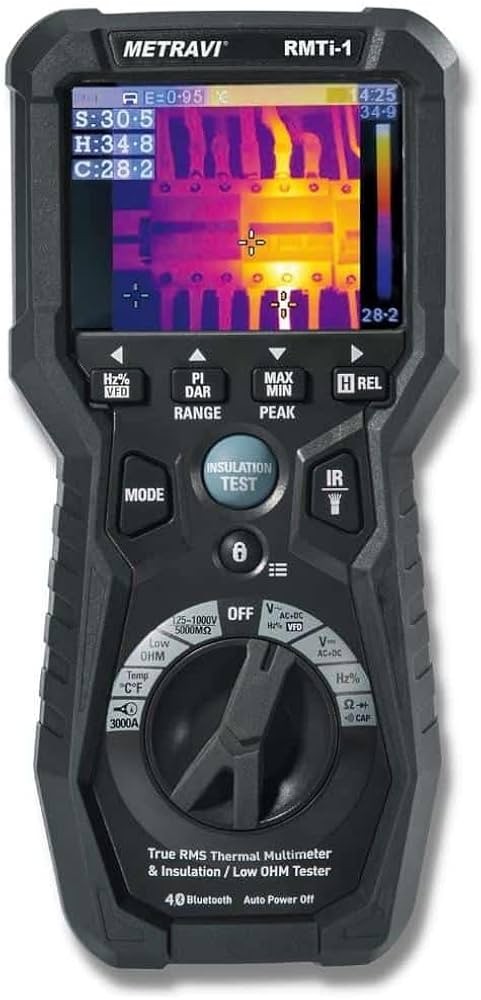

Metravi PRO RMTi-1 Rotating Machine Tester with Thermal Imager is an advanced diagnostic tool designed for comprehensive condition monitoring and fault detection in motors, generators, and rotating machinery. Combining electrical testing with integrated thermal imaging, it enables users to identify overheating, insulation issues, and mechanical faults with high accuracy. The built-in thermal imager features an 80×80 resolution, high sensitivity, and wide temperature range from -20°C to 260°C, ensuring precise thermal analysis. With TRMS measurement, frequency analysis, and low resistance testing capabilities, it delivers reliable performance for industrial maintenance and predictive diagnostics. The device includes a color display with bargraph visualization, rechargeable Li-ion battery, and portable design for field use. Ideal for engineers and maintenance professionals, the Metravi PRO RMTi-1 enhances equipment reliability, reduces downtime, and ensures efficient troubleshooting in demanding industrial environments. Available on EnvMart, these Testing Instruments are designed for precise measurement and analysis across various applications. Metravi Testing Instruments offer accuracy, reliability, and durability, making them ideal for industrial, laboratory, and research environments.

Metravi Rotating Machine Tester with Thermal Imager PRO RMTi-1

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The thermal imager in this model has an object temperature range from -20°C to 260°C (-4°F to 502°F).

It features a thermal imager with a resolution of 80×80 pixels and a spatial resolution of 4.53 mrad.

This tester can perform a variety of measurements including TRMS voltage, low ohms measurements, temperature with a K-type probe, capacitance, frequency, duty cycle, and insulation testing.

The operating temperature range for this model is 5°C to 40°C (41°F to 104°F).

It features a 3.5’’ TFT color LCD display with a resolution of 6000 dots and bargraph visualization.

This model is powered by a 7.4V rechargeable Li-ion battery with a capacity of 2600mAh.

The package includes the Metravi PRO RMTi-1 tester, a pair of test leads, a K-type wire temperature probe, a rechargeable battery, a carrying bag, and a user manual.

The maximum operating altitude for this model is 2000 meters (6562 feet).

This model has dimensions of 210×85×65 mm and weighs 680 grams with batteries included.

It complies with safety standards IEC/EN61010-1 and EMC standards IEC/EN61326-1/61557-1-2-4.

The frequency electrical circuits range for this unit is from 40.00 Hz to 10 kHz.

The thermal imager has an accuracy of ±3°C (±36°F) or ±3% of reading, depending on the environmental conditions and object temperature.
