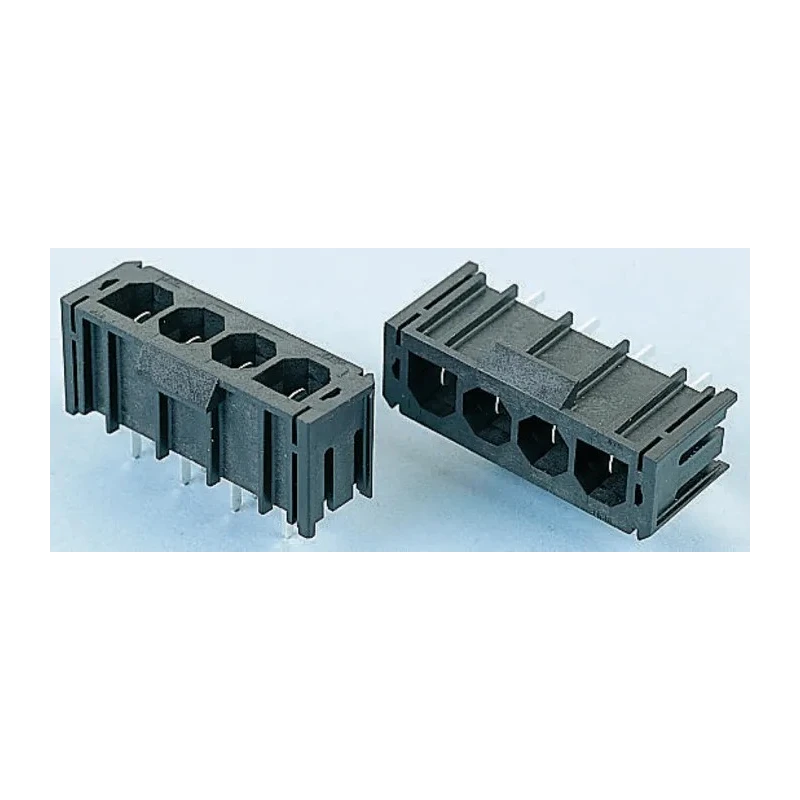

Molex Sabre Series Straight Through Hole PCB Header 4 Contact 7.49 mm Pitch 1 Row Shrouded 43160-2104

Molex 43160-2104 Sabre Series Straight Through Hole PCB Header is a robust, single-row PCB connector featuring 4 male contacts with a standard 7.49 mm pitch. The connector is designed for wire-to-board applications requiring reliable, high-current performance up to 18A at 600 volts.

The housing is constructed from high temperature thermoplastic and is shrouded to provide insulation and protection for the contacts, which are made of brass and plated with tin to ensure excellent electrical conductivity and durability. The connector is intended for through-hole PCB mounting, utilizing solder termination for a secure mechanical and electrical connection.

Operating temperature range spans from -40°C to 75°C, allowing usage in diverse industrial, laboratory, and commercial electronic applications including power supplies, control systems, and PCB assembly lines. The connector’s polarised design with an audible click prevents improper mating and enhances safety during installation and maintenance.

The Molex Sabre Series 43160-2104 PCB Header simplifies the creation of wire-to-board and wire-wire connections, suitable for 14 to 18 AWG wires, thus supporting a wide variety of wire sizes common in electronic manufacturing. This connector supports UL E29179 and UL1950 and CSA LR19980 standards for quality assurance.

Features 4 contacts arranged in a single row for compact installation. Shrouded housing made of high temperature thermoplastic for enhanced durability. Supports up to 18A current at a rated voltage of 600V. Male brass contacts plated with tin provide good conductivity and corrosion resistance.

Designed for through-hole mounting with solder termination for secure PCB attachment. Operates reliably over a temperature range from -40°C to 75°C. Tail pin length of 3.81 mm ensures proper engagement with PCB. Polarised casing prevents incorrect mating and accidental disconnection.

Industry standard pitch of 7.49 mm and row pitch of 7.5 mm for compatibility with common PCB layouts.

This connector is ideally suited for industrial electronics manufacturing, power supply units, test equipment, and HVAC control systems requiring dependable, high-current PCB connectors. Discover more electronic components and connectors in the Electronics Components category on EnvMart.
