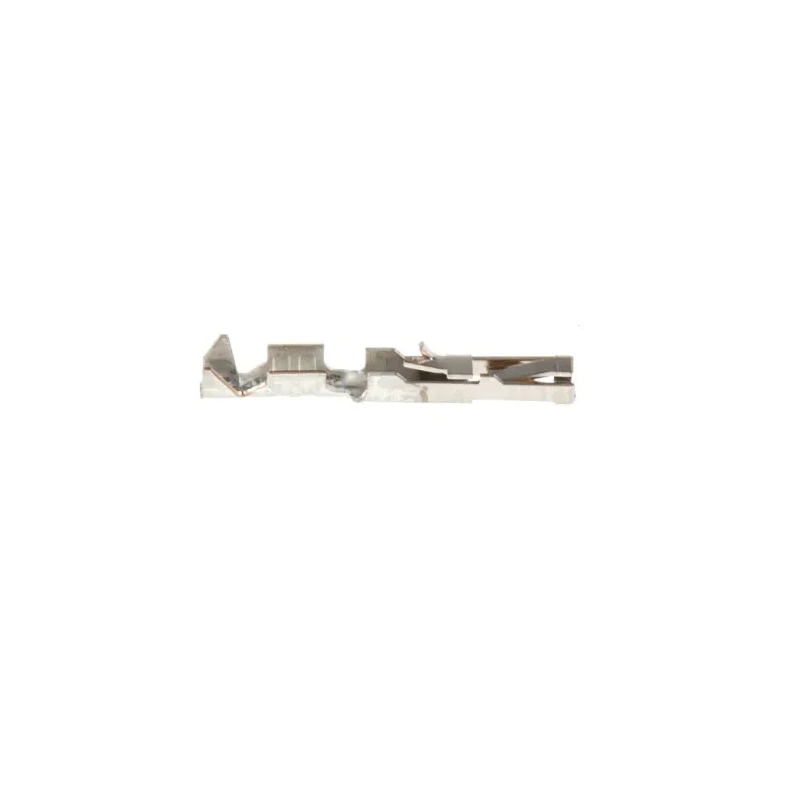

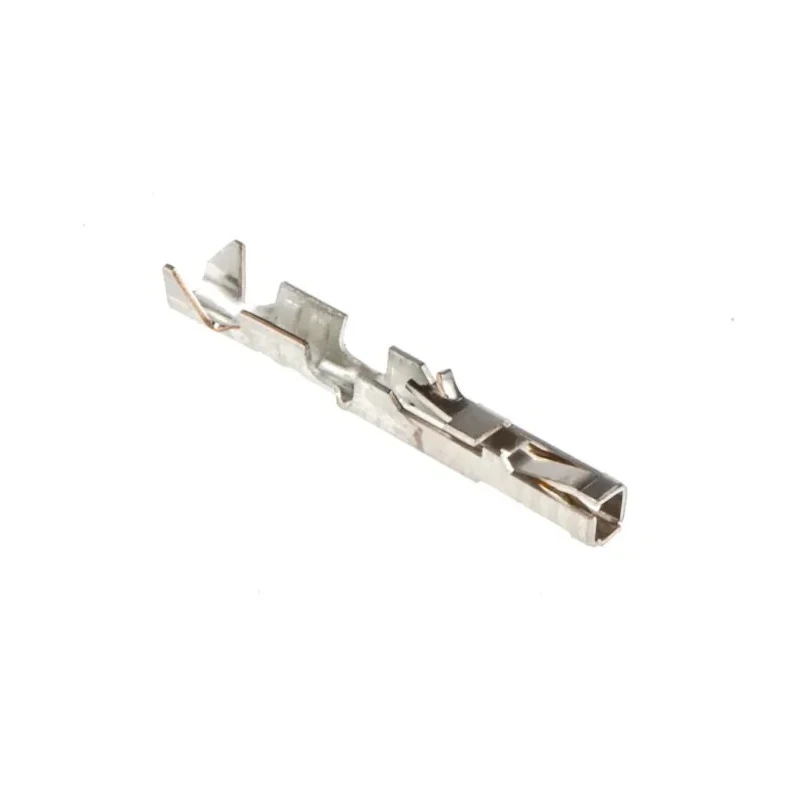

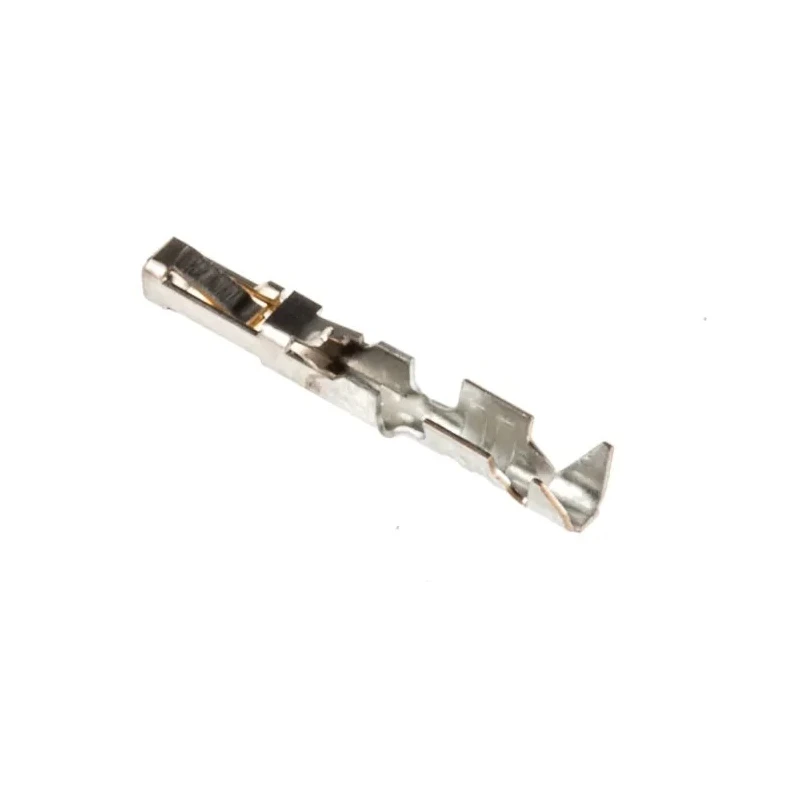

Molex 90119 Series Female Crimp Terminal, 24 AWG Min Crimp, 22 AWG Max 90119-2110
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Housing | Polyphenylene Oxide |
| Contact Material | Phosphor Bronze |
| Series | 90119 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | C-Grid III Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.35mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10 |
| Insulation Material Headers | 15% Glass-filled Polyester (PBT) |
| Header Pin Size | 0.64 square mm |
| Recommended PCB Hole Diameter | 1mm |
| FCI DUBOX Series Female PCB Connector ContactBrand | FCI |
| Molex 90119 Series Female Crimp Terminal, 24 AWG Min Crimp, 22 AWG MaxBrand | Molex |
Key Features
- Constructed from phosphor bronze with gold plating for reliable conductivity.
- Compatible with Molex C-Grid III connector housing systems.
- Supports a maximum current rating of 3 amperes for AC/DC applications.
- Operating temperature range from -55°C to 105°C.
- Provides gas-tight crimp termination to ensure durable and strong connections.
- Features a box design with a uniform locking system for versatile housing use.
- Ideal for use in consumer electronics and commercial vehicle applications.
- Has a recommended PCB hole diameter of 1 mm for mounting.
Product Description
Molex 90119-2110 is a female crimp terminal from the 90119 series designed for precise electrical connections in electronic assemblies. It supports wire sizes from 24 AWG to 22 AWG and features a durable phosphor bronze contact with selective gold plating for optimal conductivity and corrosion resistance. The crimp contact is designed for use with C-Grid III connector housings, offering compatibility across various housing styles due to its box design and uniform locking system.
This terminal provides a reliable current rating of 3 amperes with a maximum working voltage of 350 volts AC/DC. It operates effectively within a temperature range of -55°C to 105°C, making it suitable for demanding industrial and commercial environments. The crimp termination method creates a dependable, gas-tight connection that enhances mechanical strength and prevents oxidation over time.
The insulation material for headers is 15% glass-filled polyester (PBT), and the housing is made from polyphenylene oxide, ensuring the terminal’s robustness and safety. The connector is suitable for applications such as consumer electronics and commercial vehicles where reliable and efficient electrical connections are critical.
Constructed from phosphor bronze with gold plating for excellent conductivity. Compatible with Molex C-Grid III series housings for versatile applications. Rated for 3A current and up to 350V AC/DC voltage handling. Operates reliably between -55°C and 105°C for industrial use.
Gas-tight crimp connections provide durability and strength. Insulation headers made of 15% glass-filled polyester (PBT). Housing fabricated from polyphenylene oxide for durability. Recommended PCB hole diameter of 1 mm ensures proper mounting.
Suited for use in consumer electronics and commercial vehicles.
Choose Molex 90119-2110 crimp terminals for high-quality, reliable electrical connections in demanding industrial and commercial environments. Explore similar connectors and electronic components on EnvMart for your specific assembly needs.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 3 amperes, suitable for both AC and DC applications.
It supports wire sizes from 24 AWG (0.2 mm²) to 22 AWG (0.35 mm²).
The maximum working voltage for this terminal is 350 volts AC/DC.
It operates effectively within a temperature range of -55°C to 105°C.
The contact is made from phosphor bronze with gold plating, while the housing is fabricated from polyphenylene oxide and the insulation headers are made from 15% glass-filled polyester (PBT).
It uses a gas-tight crimp termination method, ensuring strong and durable connections.
This terminal is compatible with Molex C-Grid III connector housing systems.
The recommended PCB hole diameter for mounting is 1 mm.
The maximum contact resistance is specified as 10 ohms.
It is suitable for use in consumer electronics and commercial vehicle applications.
It features a box design with a uniform locking system, allowing for versatile housing use.
The country of origin for this terminal is Singapore.
