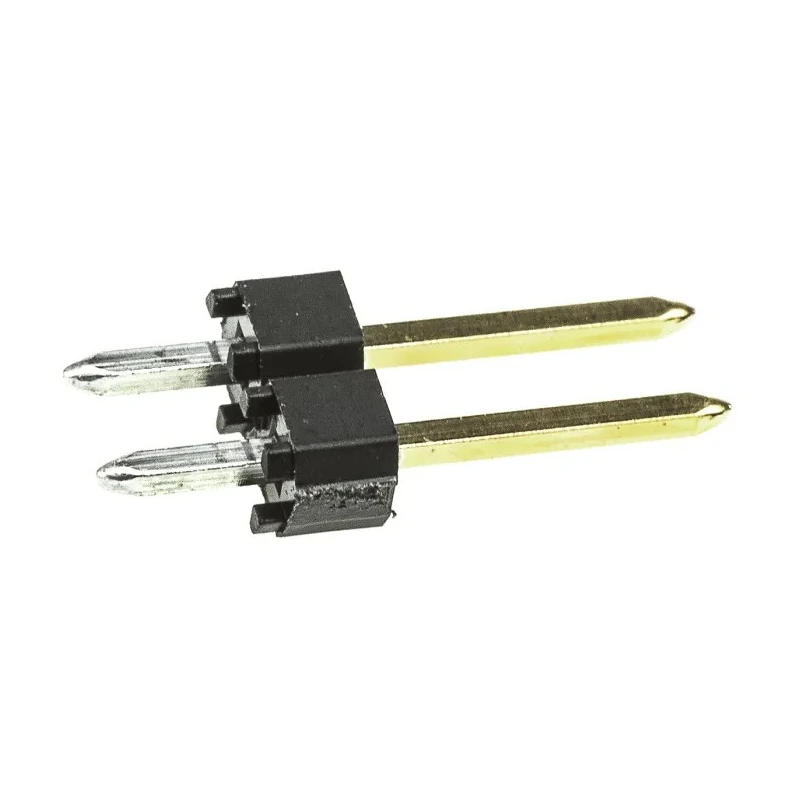

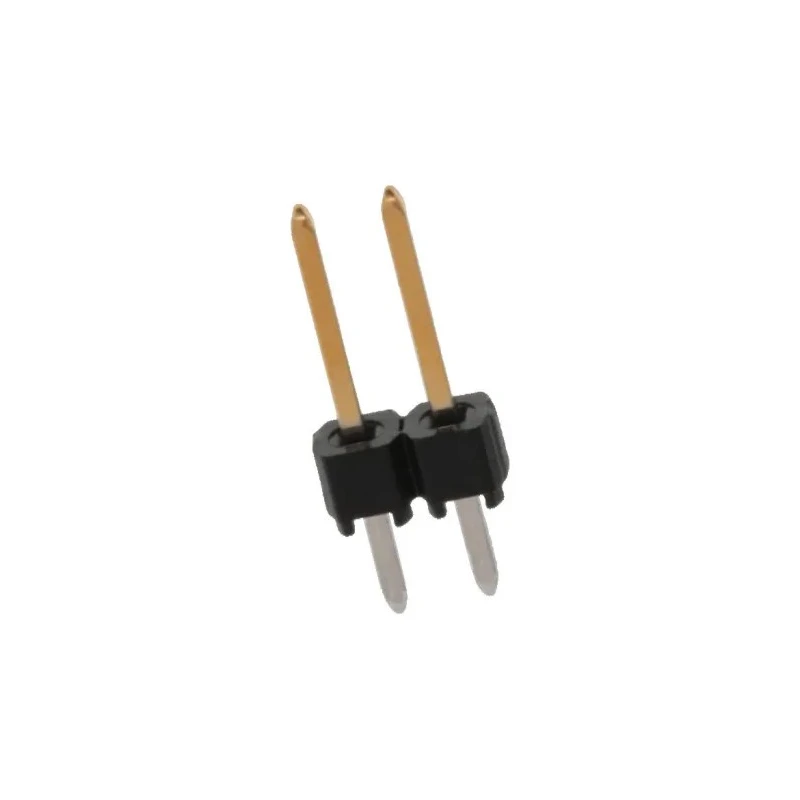

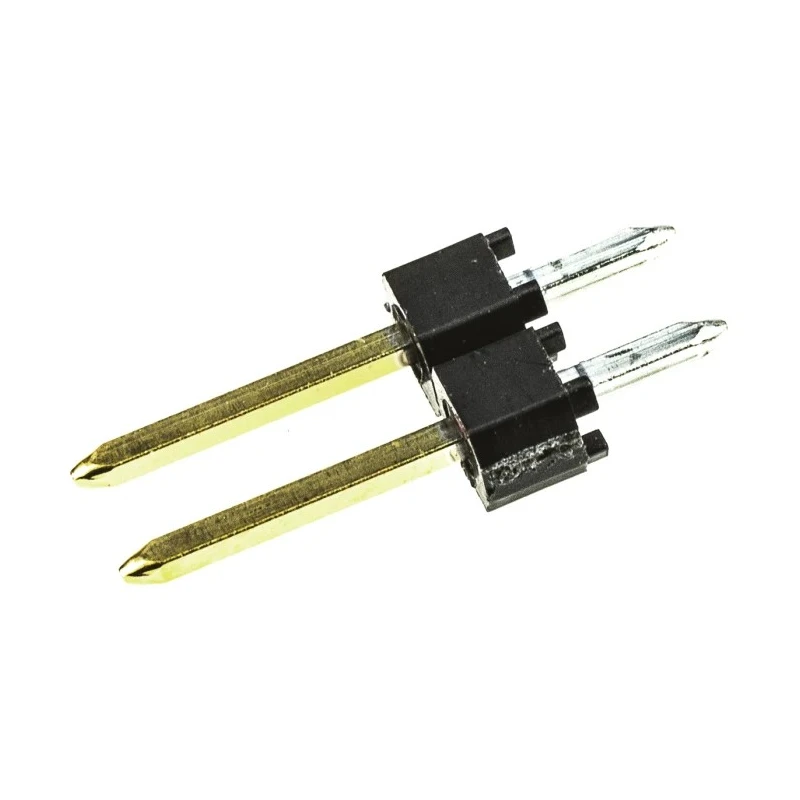

Molex C-Grid III Series Straight Through Hole Pin Header 2 Contact 2.54 mm Pitch 1 Row Unshrouded 90120-0762

Molex 90120-0762 C-Grid III Series straight through hole pin header features 2 gold-plated brass contacts designed for reliable wire-to-board interconnections. This component has a pitch of 2.54 mm and a single-row configuration to suit compact PCB layouts while ensuring high electrical performance.

The header is constructed with a flame-retardant polyester housing that provides insulation and durability, making it safe for handling and operation. It supports a maximum current of 3A per contact and can operate safely within temperatures ranging from -55°C to 125°C, making it suitable for industrial, medical, consumer electronics, telecommunications, and transportation applications.

This unshrouded, straight orientation pin header uses through-hole solder termination, allowing strong mechanical stability once mounted. The breakaway design enables users to customize the header length to meet specific design requirements, thus enabling flexibility in circuit board fabrication.

The gold plating on the brass contacts enhances conductivity and supports up to 200 mating cycles, ensuring long-lasting performance in repeated plug-in and plug-out scenarios. Its male contact gender features a tail pin length of 6.75 mm and a mating pin length of 2.9 mm, facilitating secure connections with compatible receptacles.

Applications span across medical and laboratory equipment, consumer electronics, data and control rooms, as well as transportation and industrial sectors. This pin header is a versatile electronic component ensuring efficient assembly and connectivity.

Gold-plated brass contacts ensure excellent electrical conductivity. High pin retention force provides secure mating connection. Flame-retardant polyester housing enhances safety and durability. Supports up to 3A current per contact and 350V voltage rating.

Unshrouded, straight orientation with solder termination for through-hole mounting. Breakaway design allows size customization for flexible PCB designs. Operating temperature range from -55°C to 125°C suitable for various environments.

Male contact gender with 6.75mm tail pin length and 2.9mm mating pin length. Ideal for use in medical, laboratory, consumer electronics, and transportation industries. Explore more PCB headers and connectors at EnvMart for a wide range of industrial and electronics applications.
