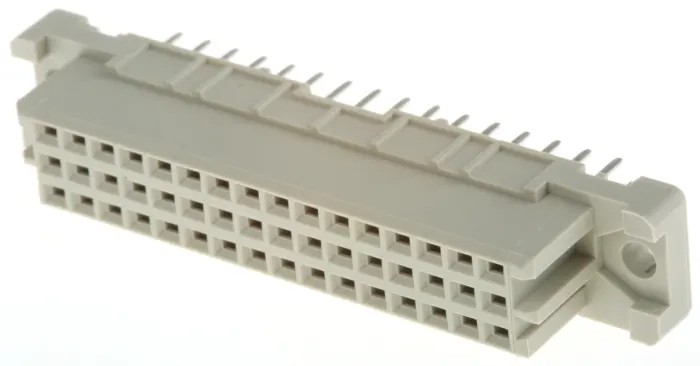

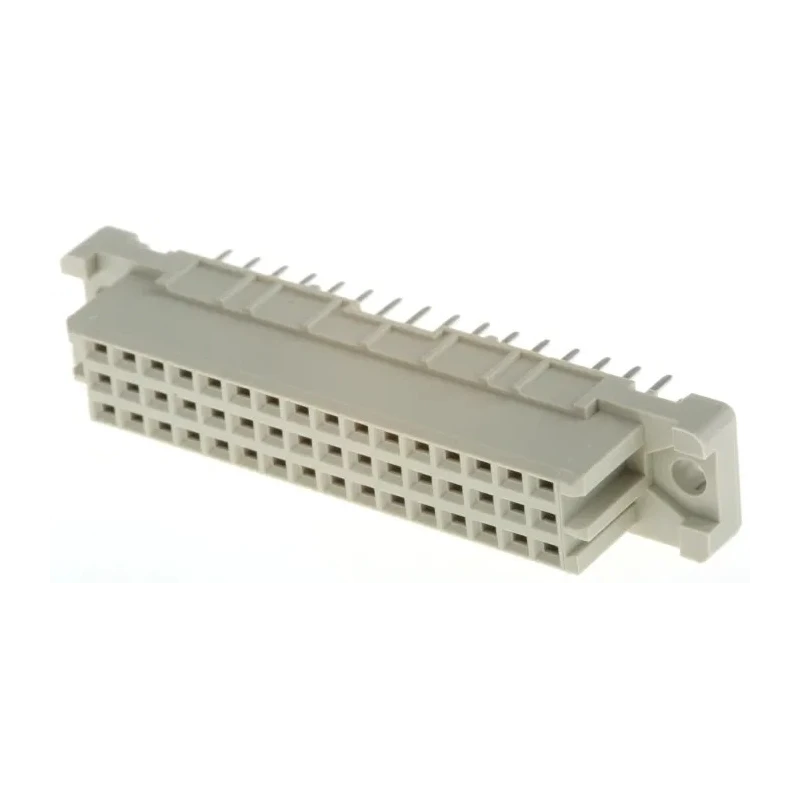

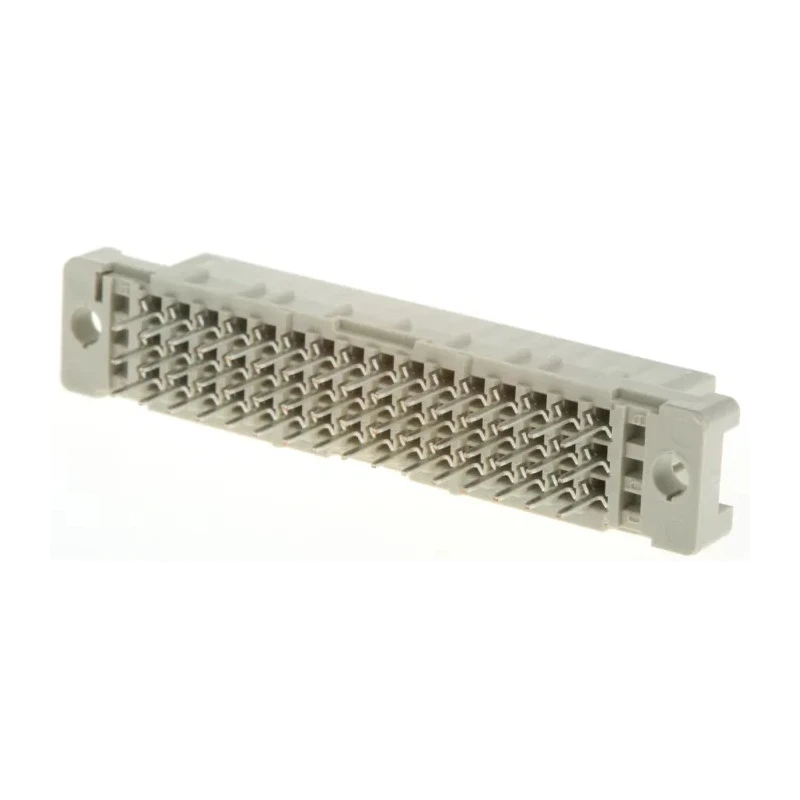

HARTING DIN 41612 48 Way 2.54 mm Pitch Type Through Hole 3 Row Female Straight Connector 09232486825

HARTING 09232486825 DIN 41612 Connector is a 48 way, 2.54 mm pitch, 3 row female straight connector designed for high-density printed circuit board interconnections. This type through hole connector is categorized as C/2 subtype and comes with solder termination class C2, providing reliable electrical connections and ease of mounting.

The connector features gold over nickel plating on copper alloy contacts, which ensures excellent conductivity and resistance to corrosion. The durable polybutylene terephthalate housing contributes to the connector's mechanical strength and temperature resistance, rated for operation from -55°C to 125°C.

Designed for demanding industrial and electronic applications, this connector supports current loads up to 2 amperes and maintains a maximum contact resistance of 20 milliohms to minimize signal degradation. The three-row contact arrangement and 2.54 mm pitch enable dense, compact circuitry suitable for backplane and rack connections in telecommunications, industrial equipment, and computer systems.

Its through-hole mounting style provides mechanical stability and is ideal for applications requiring secure PCB connections in harsh environments. The product originates from Germany, ensuring high manufacturing standards and quality assurance.

Features gold over nickel contact plating enhancing conductivity and corrosion resistance. Connector gender is female with a solder termination type for secure electrical connections. Operates reliably between -55°C to 125°C temperature range.

The housing material is durable polybutylene terephthalate ensuring mechanical stability. Designed for use in backplane and rack electronic interconnections with a maximum current rating of 2A. Contact material is copper alloy, providing excellent electrical performance.

Compliance with Class C2 solder class for consistent soldering quality. Mount type is through hole, facilitating robust mechanical mounting on printed circuit boards. Maximum contact resistance is 20 milliohms to ensure low signal loss.

This connector is suitable for various electronics manufacturing, assembly, and repair applications including telecommunications equipment, industrial control systems, and computing devices. It conforms to DIN 41612 standards, assuring compatibility and interchangeability.
