onsemi 18 V 5 W 5% Tolerance Through Hole Zener Diode Single, 2-Pin DO-15 1N5355BG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 18 V 5 W 5% Tolerance Through Hole Zener Diode Single, 2-Pin DO-15 1N5355BG

Name: onsemi 18 V 5 W 5% Tolerance Through Hole Zener Diode Single, 2-Pin DO-15 1N5355BG
Brand: onsemi
SKU: 119415



Category Zener Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	3.68mm
Length	8.89mm
Model	1N5355BG
Mount Type	Through Hole
Series	1N53
Maximum Operating Temperature	200°C
Package Type	DO-15
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	5W
Diode Configuration	Single
Test Current It	65mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	18V
Zener Type	Voltage Regulator
Maximum Zener Impedance	2.5Ω

Key Features

This diode features a DO-15 package suitable for voltage regulation applications.
The device supports a test current of 65 mA, ensuring reliable operation within rated parameters.
It offers a maximum power dissipation rating of 5 W for robust thermal performance.
The zener voltage tolerance is ±5%, allowing precise voltage regulation.
It operates efficiently from a minimum temperature of -65 °C up to a maximum of 200 °C.
The maximum reverse leakage current is limited to 500 nA for minimal leakage losses.
The device height is 3.68 mm and length is 8.89 mm, facilitating easy circuit integration.
The maximum zener impedance of 2.5 Ω ensures stability in voltage regulation applications.

Product Description

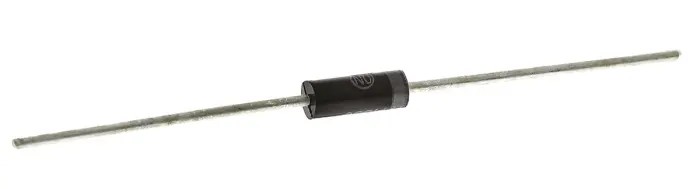

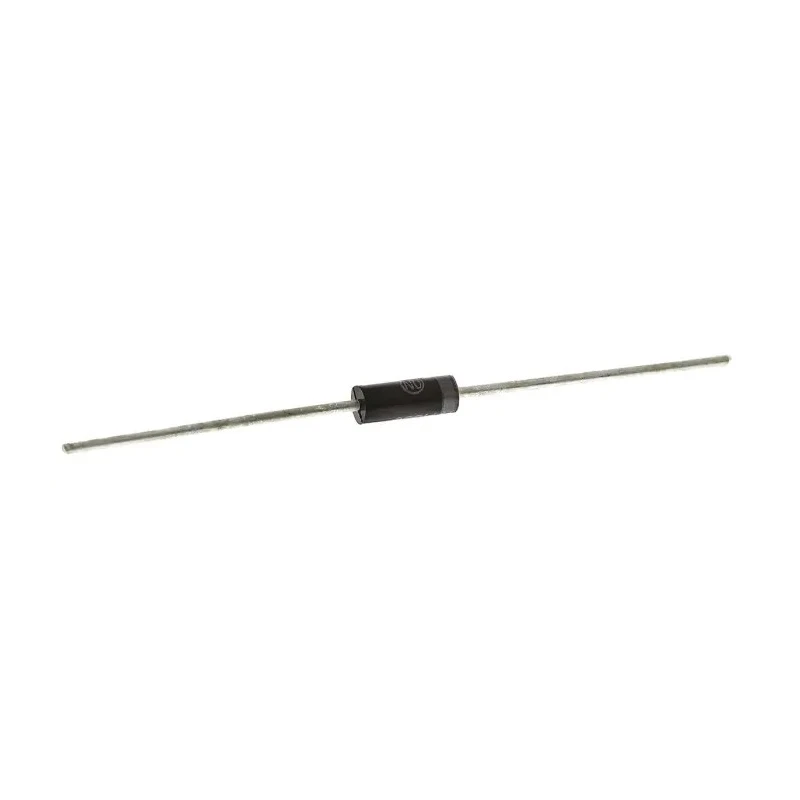

onsemi 1N5355BG is a precision Zener diode designed for voltage regulation in various electronic circuits. This single diode comes in a sturdy 2-pin DO-15 through-hole package with a nominal Zener voltage of 18 volts. It can dissipate up to 5 watts of power, providing efficient voltage stabilization under demanding conditions.

The diode features a ±5% voltage tolerance, ensuring consistent performance for industrial and commercial applications. The device is constructed using Surmetic™ 40 axial-leaded technology with a molded, void-free transfer-molded thermosetting plastic package offering excellent environmental protection and corrosion resistance.

Rated with a maximum operating temperature of 200 °C and a minimum of -65 °C, this diode is suitable for industrial environments with varying thermal conditions. The low maximum reverse leakage current of 500 nA and a zener impedance of 2.5 Ω contribute to its reliable and stable voltage regulation characteristics.

Key features include a test current of 65 mA, 2-pin configuration, and a compact package size measuring 3.68 mm height and 8.89 mm length, which facilitates easy mounting on through-hole PCBs.

This Zener Diode is widely used in industrial voltage regulation circuits and discrete semiconductor applications. The device's corrosion-resistant leads are readily solderable, ensuring easy circuit assembly. It complies with standard electronic component requirements but does not have specific certifications.

The robust construction makes it suitable for industrial electronic equipment and power supply designs. Available in standard packaging suitable for production line insertion to improve manufacturing efficiency. Explore a wide range of electronic components including semiconductors on EnvMart for industrial, construction, and manufacturing applications.
